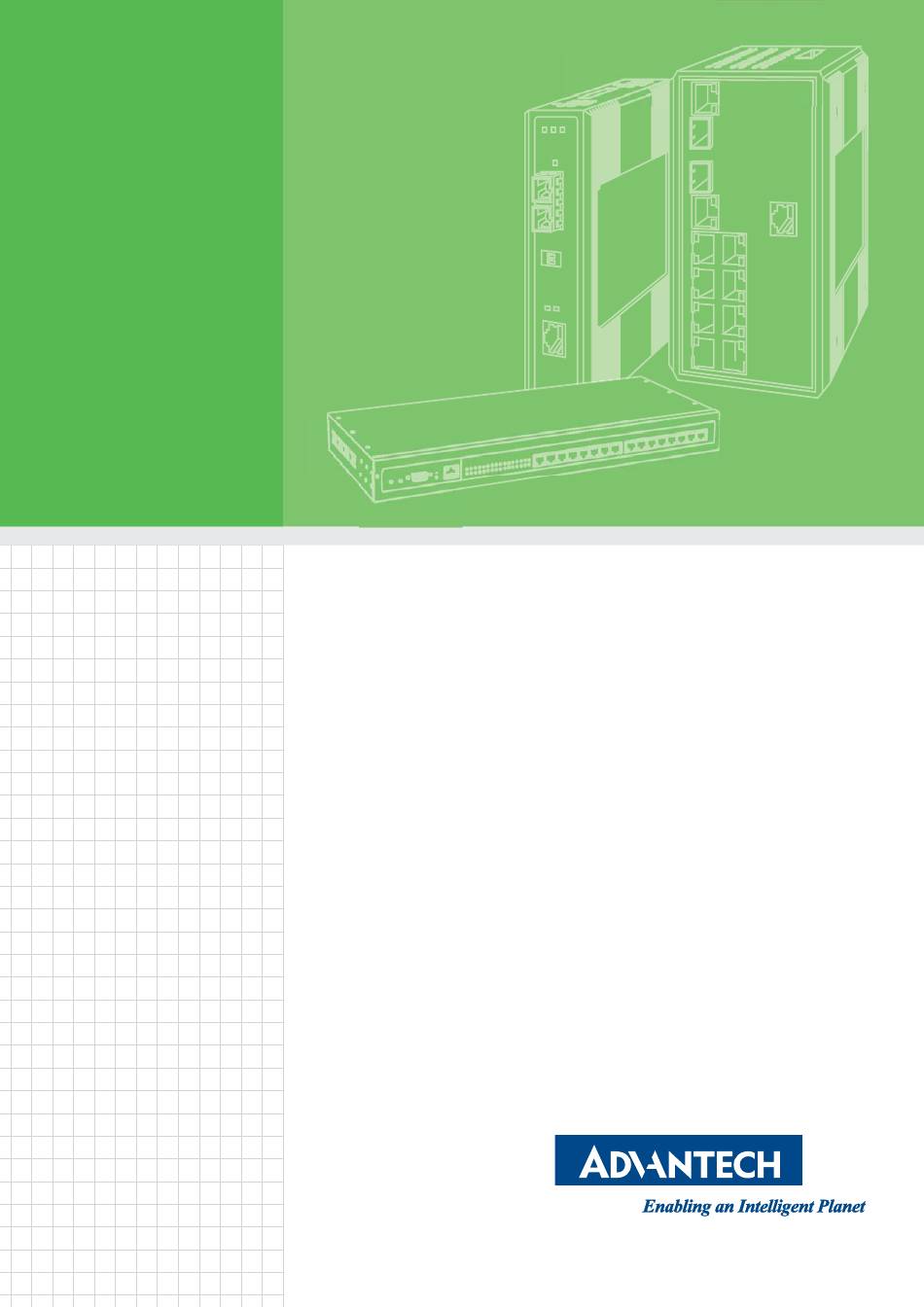

- Page 1 User Manual EKI-122xR-CE Series 1/2/4-port Modbus Router...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable.
- Page 3 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.
- Page 4 To assist us in making improvements to this manual, we would welcome comments and constructive criticism. Please send all such - in writing to: support@advantech.com Packing List Before setting up the system, check that the items listed below are included and in good condition.
- Page 5 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. ...
- Page 6 CAUTION: FOR USE IN A CONTROLLED ENVIRONMENT. REFER TO MANUAL FOR ENVIRONMENTAL CONDITIONS. ATTENTION : POUR UTILISATION EN ATMOSPHÈRE CONTRÔLÉE. CONSULTER LA NOTICE TECHNIQUE. WARNING: EKI-1242 IS LIVE. RISK OF ELECTRIC SHOCK. DISCONNECT POWER BEFORE SERVICING. AVERTISSEMENT : EKI-1242 EST SOUS TENSION. RISQUE DE CHOC ÉLECTRIQUE, COUPER LE COURANT AVANT L'ENTRETIEN.
- Page 7 Safety Precaution - Static Electricity Static electricity can cause bodily harm or damage electronic devices. To avoid damage, keep static-sensitive devices in the static-protective packaging until the installation period. The following guidelines are also recommended: Wear a grounded wrist or ankle strap and use gloves to prevent direct contact with the device before servicing the device.
-
Page 8: Table Of Contents
Contents Chapter Product Overview ....... 1 Specifications.................... 2 Hardware Views..................3 1.2.1 Front View..................3 1.2.2 Rear View ..................6 1.2.3 Top View..................7 1.2.4 Bottom View.................. 8 1.2.5 LED Indicators ................9 Dimensions ....................9 Chapter Modbus Router Installation....11 Installation Guidelines................ - Page 9 WAN......................45 VPN Passthrough..................46 Port Configuration ................... 46 4.7.1 Modbus Settings ................. 46 4.7.2 Port ..................... 47 OpenVPN ....................49 4.8.1 Tunnel ..................49 Filter ......................50 4.9.1 Filter Settings ................50 4.9.2 Filter Rules.................. 51 4.10 Port Forward ................... 51 4.10.1 Port Forwarding ................
- Page 10 List of Figures Figure 1.1 Front View ........................3 Figure 1.2 Front View ........................4 Figure 1.3 Front View ........................5 Figure 1.4 Rear View........................6 Figure 1.5 Rear View........................7 Figure 1.6 Top View ........................7 Figure 1.7 Top View ........................8 Figure 1.8 Bottom View ........................
- Page 11 Figure 4.15 QoS > QoS Settings ....................52 Figure 4.16 QoS > QoS IP Base Rules ..................53 Figure 4.17 QoS > QoS Protocol Base Rules................. 53 Figure 4.18 Static Routes > Static IPv4 Routes................54 Figure 4.19 Diagnostics ........................55 Figure 4.20 Status >...
-
Page 12: Product Overview
Chapter Product Overview... -
Page 13: Specifications
EKI-1221R-CE: 30 x 140 x 95 mm (1.19” x 5.52” (W x H x D) x 3.75”) EKI-1222R-CE: 30 x 140 x 95 mm (1.19” x 5.52” x 3.75”) EKI-1224R-CE: 42 x 140 x 95 mm (1.66” x 5.52”... -
Page 14: Hardware Views
Hardware Views 1.2.1 Front View 1.2.1.1 EKI-1221R-CE P2 Status Default EKI-1221R Figure 1.1 Front View No. Item Description System LED panel See “LED Indicators” on page 9 for further details. Default Press to restart the device. Press and hold 10 seconds to reset to factory default. -
Page 15: Figure 1.2 Front View
1.2.1.2 EKI-1222R-CE P2 Status Default EKI-1222R Figure 1.2 Front View No. Item Description System LED panel See “LED Indicators” on page 9 for further details. Default Press to restart the device. Press and hold 10 seconds to reset to factory default. -
Page 16: Figure 1.3 Front View
1.2.1.3 EKI-1224R-CE P2 Status Default Serial ports EKI-1224R Figure 1.3 Front View No. Item Description System LED panel See “LED Indicators” on page 9 for further details. Default Press to restart the device. Press and hold 10 seconds to reset to factory default. -
Page 17: Rear View
1.2.2 Rear View 1.2.2.1 EKI-1221R-CE/EKI-1222R-CE Figure 1.4 Rear View No. Item Description DIN-Rail mounting Mounting plate used for the installation to a standard DIN rail. plate EKI-122xR-CE Series User Manual... -
Page 18: Top View
Figure 1.5 Rear View No. Item Description DIN-Rail mounting Mounting plate used for the installation to a standard DIN rail. plate 1.2.3 Top View 1.2.3.1 EKI-1221R-CE/EKI-1222R-CE PWR2 1A@24V PWR1 DC12-48V V2- V2+ V1- V1+ P-Fail Figure 1.6 Top View No. Item... -
Page 19: Bottom View
Connect cabling for power and alarm wiring. Ground terminal Screw terminal used on ground chassis. 1.2.4 Bottom View 1.2.4.1 EKI-1221R-CE/EKI-1222R-CE Figure 1.8 Bottom View No. Item Description Wall mounting Screws (x4) used in the installation of a wall mounting plate. -
Page 20: Led Indicators
1.2.5 LED Indicators LED Name LED Color Description Green Power 1 is on Power 1 is off or power error condition exists Green Power 2 is on Power 2 is off or power error condition exists Status Amber The device is located using the location function in utility Blinking System is ready System is powered off... - Page 21 Unit: mm [inch] [3.740] [4.094] [1.181] Figure 1.11 Dimensions (EKI-1222R-CE) [1.299] [1.378] Unit: mm [inch] [0.591] [3.740] 30.50 [1.654] [1.201] [1.575] [4.094] [1.181] Figure 1.12 Dimensions (EKI-1224R-CE) EKI-122xR-CE Series User Manual...
-
Page 22: Modbus Router Installation
Chapter Modbus Router Installation... -
Page 23: Installation Guidelines
Installation Guidelines The following guidelines are provided to optimize the device performance. Review the guidelines before installing the device. Make sure cabling is away from sources of electrical noise. Radios, power lines, and fluorescent lighting fixtures can interference with the device performance. ... -
Page 24: Installing The Modbus Router
Installing the Modbus Router 2.3.1 DIN Rail Mounting The DIN rail mount option is the quickest installation option. Additionally, it optimizes the use of rail space. The metal DIN rail kit is secured to the rear of the modbus router. The device can be mounted onto a standard 35 mm (1.37”) x 7.5 mm (0.3”) height DIN rail. -
Page 25: Figure 2.2 Correctly Installed Din Rail Kit
See the following figure for an illustration of a completed DIN installation procedure. Figure 2.2 Correctly Installed DIN Rail Kit Grasp the bottom of the modbus router and slightly rotate it upwards. If there is resistance, the modbus router is correctly installed. Otherwise, re-attempt the installation process from the beginning. -
Page 26: Wall-Mounting
2.3.2 Wall-Mounting The wall mounting option provides better shock and vibration resistance than the DIN rail vertical mount. Note! When installing, make sure to allow for enough space to properly install the cabling. Before the device can be mounted on a wall, you will need to remove the DIN rail plate. -
Page 27: Figure 2.5 Wall Mounting Screw Dimensions
Once the wall mounting plates are secure on the device, you will need to attach the wall screws (x4). Locate the installation site and place the modbus router against the wall, making sure it is the final installation location. Use the wall mount plates as a guide to mark the locations of the screw holes. Drill four holes over the four marked locations on the wall, keeping in mind that the holes must accommodate wall sinks in addition to the screws. -
Page 28: Connecting The Modbus Router To Ethernet Ports
Connecting the Modbus Router to Ethernet Ports 2.4.1 RJ45 Ethernet Cable Wiring For RJ45 connectors, data-quality, twisted pair cabling (rated CAT5 or better) is recommended. The connector bodies on the RJ45 Ethernet ports are metallic and connected to the GND terminal. For best performance, use shielded cabling. Shielded cabling may be used to provide further protection. -
Page 29: Power Supply Installation
Power Supply Installation 2.6.1 Overview Warning! Power down and disconnect the power cord before servicing or wiring the modbus router. Caution! Do not disconnect modules or cabling unless the power is first switched off. The device only supports the voltage outlined in the type plate. Do not use any other power components except those specifically designated for the modbus router device. -
Page 30: Considerations
2.6.2 Considerations Take into consideration the following guidelines before wiring the device: The Terminal Block (CN1) is suitable for 12-24 AWG (3.31 - 0.205 mm ). Torque value 7 lb-in. The cross-sectional area of the earthing conductors shall be at least 3.31 mm ... -
Page 31: Wiring A Relay Contact
Electromagnetic Interference (EMI) affects the transmission performance of a device. By properly grounding the device to earth ground through a drain wire, you can set up the best possible noise immunity and emissions. Drain Wire with Lug Connection to Grounding Point Figure 2.10 Grounding Connection By connecting the ground terminal by drain wire to earth ground the modbus router and chassis can be ground. -
Page 32: Figure 2.12 Terminal Receptor: Power Input Contacts
There are two power inputs for normal and redundant power configurations. The power input 2 is used for wiring a redundant power configuration. See the following for terminal block connector views. PWR2 DC12-48V 1A@24V PWR1 V2- V2+ V1- V1+ P-Fail Figure 2.12 Terminal Receptor: Power Input Contacts To wire the power inputs: Make sure the power is not connected to the modbus router or the power converter... -
Page 33: Default Button
Align the terminal block over the terminal block receptor on the modbus router. Insert the terminal block and press it in until it is flush with the terminal block receptor. Tighten the screws on the terminal block to secure it to the terminal block receptor. - Page 34 EKI-122xR-CE Series User Manual...
-
Page 35: Configuration
Chapter Configuration... -
Page 36: Configuration Utility Overview
Advantech EKI Device Configuration Utility is an excellent modbus router manage- ment tool. You can connect and configure the local and remote Advantech modbus routers easily. The utility provides access to the following functions: ... -
Page 37: Figure 3.2 Installshield Wizard 2 Of 4
The Software License Agreement displays, press I Agree to continue or Cancel to stop the installation. Figure 3.2 InstallShield Wizard 2 of 4 The InstallShield continues and a status screen displays. The default installation path is C:\Program Files\EKI Device Configuration Utility. Figure 3.3 InstallShield Wizard 3 of 4 EKI-122xR-CE Series User Manual... -
Page 38: Figure 3.4 Installshield Wizard 4 Of 4
Once the installation of the package is finished a Configuration Utility Setup screen displays. Click Finish to conclude the process and exit the InstallShield Wizard. Figure 3.4 InstallShield Wizard 4 of 4 EKI-122xR-CE Series User Manual... -
Page 39: Menu Bar
Menu Bar You can open the Configuration Utility from the Windows Start Menu by clicking Start > All Programs > EKI Device Configuration Utility > EKI Device Configuration Utility. The Configuration Utility displays as shown in the following figure. Figure 3.5 Configuration Utility Overview Item Description Menu Bar... -
Page 40: Quick Tool Bar
Quick Tool Bar The Advantech EKI Device Configuration Utility makes use of a Quick Tool Bar menu to allow quick access to the management functions. See the following figure for fur- ther information. Figure 3.6 Quick Tool Bar Overview Icon... -
Page 41: Utility Settings
3.4.1 Utility Settings 3.4.1.1 Main Form Setting Click View > Settings to configure utility settings. Figure 3.7 View > Settings > Main Form Setting Item Description Main Window Settings Maximum Main Window Check the box to enable the limiting of main windows on-load to On Load the maximum value. -
Page 42: Figure 3.8 View > Settings > Device Manager
3.4.1.2 Device Manager Figure 3.8 View > Settings > Device Manager Item Description Device Manager Tree View Grouping Click the drop-down menu to enable or disable grouping. Show Empty Device Type Check the check box to show empty device type node or not. Node Expand New Appended Check the check box to expand a new appended device node. -
Page 43: Discovering Your Modbus Router
3.4.2.1 Auto Searching Advantech EKI Device Configuration Utility will automatically search all the EKI- 122xR-CE Series modbus routers on the network and show them on the Device List Area of the utility. The utility provides an auto-search function to show your device (s) by simply executing the configuration utility program from the Start Menu. -
Page 44: Figure 3.10 Selecting A Group
Information”, and “Serial Port Information”. In the serial port information frame, it dis- plays the operation mode, status and connected host IP. Figure 3.10 Selecting a Group Click on the “+” before the device name, and the utility will expand the interfaces on this modbus router. -
Page 45: Network Settings
3.4.3 Network Settings This section explains how to configure the EKI-122xR-CE Series network settings using the configuration utility to allow it to a device over a network connection. Click on the “+” before the model name (e.g. EKI-1222) to expand the device’s sub- menu listing. -
Page 46: Figure 3.14 Network Settings Overview
You can choose from four possible IP Configuration modes --- Static and DHCP. Figure 3.14 Network Settings Overview Item Description Static IP User defined IP address, Subnet Mask, and Default Gateway. DHCP DHCP Server assigned IP address, Subnet Mask, and Default Gateway. -
Page 47: Figure 3.15 Reset Device
Click Reset Device to reboot the modbus router. Any configuration changes you have made since the last time you saved will be lost. To reset the device: Right-click a desired device to display the settings menu. Select Reset Device. Figure 3.15 Reset Device EKI-122xR-CE Series User Manual... -
Page 48: Administrator Settings
Administrator Settings 3.5.1 Locate the Modbus Router When several modbus routers are connected to the network, identification of a spe- cific device is possible through the Locate function. To locate the modbus router: From the device list frame, locate the desired device and right-click on it to dis- play the settings menu. -
Page 49: Restore To Factory Default Settings
3.5.2 Restore to Factory Default Settings The configuration utility provides the function to restore the modbus router to factory default settings. Figure 3.17 Restore to Factory Default Settings The confirm message will display after clicking Restore to Factory Default Set- tings. -
Page 50: Resetting The Device
3.5.3 Resetting the Device The Reset Device function allows you to reset the modbus router. The function dis- connects both the ethernet and serial connections. The function also allows the modbus router to save new configuration settings to flash memory. Once a new setting is changed, you can use the Save function to accept the changes. -
Page 51: Managing Modbus Router
Chapter Managing Modbus Router... -
Page 52: Overview
Overview An EKI modbus router can be configured through a web interface. By using a stan- dard web browser, the same procedure as with the Windows configuration utility can be used. In the browser’s address field, enter the IP Address of your EKI modbus router. -
Page 53: Accessing The Web Page Via Web Browser
4.2.2 Accessing the Web Page via Web Browser Once the device is installed and connected, power on the device. The following infor- mation guides you through the logging in process. Launch your web browser on the PC. In the browser’s address bar, type the device’s default IP address (Eth1: 192.168.0.1, Eth2: 192.168.1.1). -
Page 54: Overview
Overview The Overview menu lists information pertaining to the system, such as Hostname, Model, Firmware version, and more. The information is for review only. To modify the device information, see the respective item within the user interface. The following figures represent multiple supported devices. Some interface screens may represent specific device models. -
Page 55: Lan And Dhcp
LAN and DHCP To access this page, click LAN and DHCP. Figure 4.4 LAN and DHCP The following table describes the items in the previous figure. Item Description IPv4 Address Enter a value to specify the IP address of the interface. The default is 192.168.1.1. -
Page 56: Wan
Item Description Custom Secondary Enter a value to specify the DNS server for the interface. DNS Server The default is none. Apply Click Apply to save the values and update the screen. To access this page, click WAN. Figure 4.5 WAN The following table describes the items in the previous figure. -
Page 57: Vpn Passthrough
VPN Passthrough To access this page, click VPN Passthrough. Figure 4.6 VPN Passthrough The following table describes the items in the previous figure. Item Description PPTP Passthrough Click the radio button to enable the PPTP passthrough function. L2TP Passthrough Click the radio button to enable the L2TP passthrough function. IPSec Passthrough Click the radio button to enable the IPSec passthrough function. -
Page 58: Port
4.7.2 Port 4.7.2.1 Basic To access this page, click Port Configuration > Port > Basic. Figure 4.8 Port Configuration > Port > Basic The following table describes the items in the previous figure. Item Description Type Click the drop-down menu to select a serial interface: RS232, RS422 or RS485. -
Page 59: Figure 4.9 Port Configuration > Port > Operation
4.7.2.2 Operation To access this page, click Port Configuration > Port > Operation. Figure 4.9 Port Configuration > Port > Operation The following table describes the items in the previous figure. Item Description Mode Click the drop-down menu to select the port configuration mode: Modbus Slave Mode. -
Page 60: Openvpn
OpenVPN 4.8.1 Tunnel To access this page, click OpenVPN > Tunnel. Figure 4.10 OpenVPN > Tunnel The following table describes the items in the previous figure. Item Description Status Display the current status of the tunnel. Tunnel 1 Click the radio button to enable or disable the tunnel. Protocol Click the drop-down menu to select the tunnel protocol: UDP, TCP Server or TCP Client. -
Page 61: Filter
Item Description Remote Interface IP Enter a value to specify a local interface IP address. Address Ping Interval Enter a value to specify a local interface IP address. Ping Timeout Enter a value to specify a ping timeout period. Renegotiate Interval Enter a value to specify an interval to renegotiate data channel key. Max Fragment Size Enter a value to specify the maximum fragment size for backups and restores. -
Page 62: Filter Rules
4.9.2 Filter Rules To access this page, click Filter > Filter Rules. Figure 4.12 Filter > Filter Rules The following table describes the items in the previous figure. Item Description Click Add to add a new filter rule. Apply Click Apply to save the values and update the screen. 4.10 Port Forward 4.10.1... -
Page 63: Qos
Item Description Enter a value to specify the IP address of the DMZ. Apply Click Apply to save the values and update the screen. 4.11 The QoS function allows you to configure settings for the router QoS interface and how the router connects to a remote server to get services. 4.11.1 QoS Settings The QoS Settings allows you to set up the QoS function. -
Page 64: Qos Ip Base Rules
4.11.2 QoS IP Base Rules The QoS rule specifies what actions are to be taken with the data packets. It specifies the source and destination of the communication, what services can be used, at what times, whether to log the connection and the logging level. To access this page, click QoS >... -
Page 65: Static Routes
4.12 Static Routes A static route provide fixed routing path through the network. It is manually configured on the router and must be updated if the network topology was changed recently. Static routes are private routers unless they are redistributed by a routing protocol. 4.12.1 Static IPv4 Routes To access this page, click Static Routes >... -
Page 66: Diagnostics
4.13 Diagnostics Through the Diagnostics function configuration of settings for the router diagnostics is available. To access this page, click Diagnostics. Figure 4.19 Diagnostics The following table describes the items in the previous figure. Item Description IP Address or Enter the IP address or host name of the station to ping. The initial Hostname value is blank. -
Page 67: Status
4.14 Status Status contains Routes and Syslog. 4.14.1 Routes To access this page, click Status > Routes. Figure 4.20 Status > Routes 4.14.2 Syslog Users can check the history in the Syslog page. To access this page, click Status > Syslog. Figure 4.21 Status >... -
Page 68: System Management
4.15 System Management 4.15.1 Administration The Change Password function allows you to easily update your current password from a single menu. To access this page, click Management > Administration. Figure 4.22 Management > Administration The following table describes the items in the previous figure. Item Description Password... -
Page 69: System
Item Description Restore Backup Click Browse to select the configuration file and click Upload Archive to restore configuration to the device. Flash new firmware image Image Click Browse to select the firmware file and click Flash image to upgrade the firmware. 4.15.3 System To access this page, click Management >... -
Page 70: Reboot Device
4.15.4 Reboot Device To access this page, click Management > Reboot Device. Click Reboot to reboot the modbus router. Any configuration changes you have made since the last time you issued a save will be lost. Figure 4.25 Management > Reboot Device EKI-122xR-CE Series User Manual... - Page 71 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permission of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2018...
