8.24 Up/Down Script

In the window Up/Down Script it is possible to create own scripts. In the item Up script
is defined scripts, which begins after establishing a PPP/WAN connection. In the item Down
Script is defines script, which begins after lost a PPP/WAN connection.
The changes in settings will apply after pressing the Apply button.
Example of UP/Down script: After establishing or lost a connection, the router sends an
email with information about establishing or loss a connection.

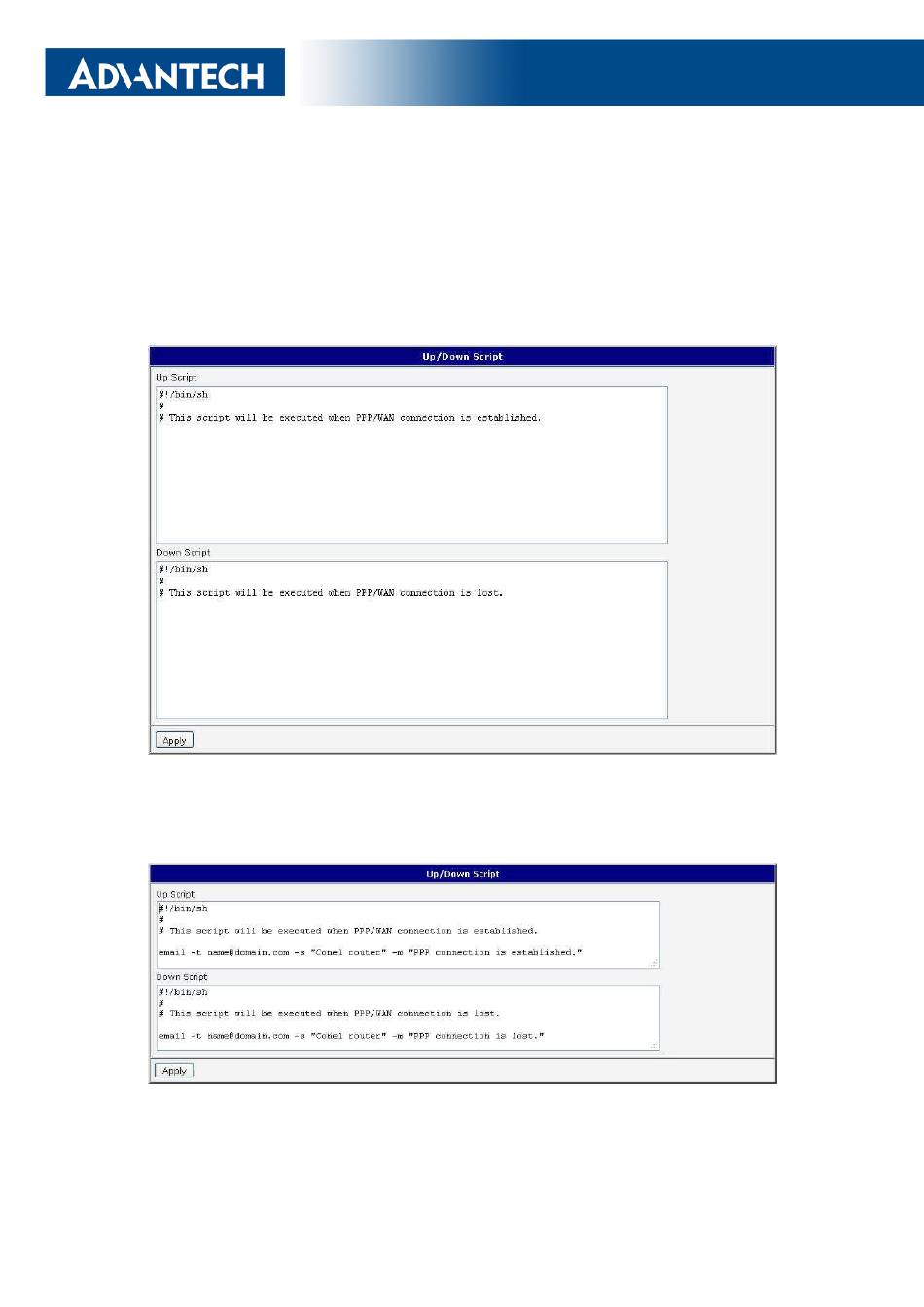

Figure 66: Up/Down script
Figure 67: Example of Up/Down script
