5.6.3 Antenna connector ANT
Main antenna is connected to the router using the FME connector on the rear panel of the
router. The connector is marked with ANT.
The router can not operate without the connected main antenna.
Example of antenna:
5.6.4 SIM card reader
The SIM card reader for 3 V and 1.8 V SIM cards is located on the front panel of the router.
To initiate the router into operation it is necessary to insert an activated SIM card with un-
blocked PIN in the reader. The SIM cards might be of different adjusted APN.
Changing the SIM card on the front panel:
1. Before handling of the SIM card turn off the router and disconnect it from power supply.
2. Press the small yellow button to eject the reader holder.
3. Insert the SIM card into the reader holder and slide it in the reader.

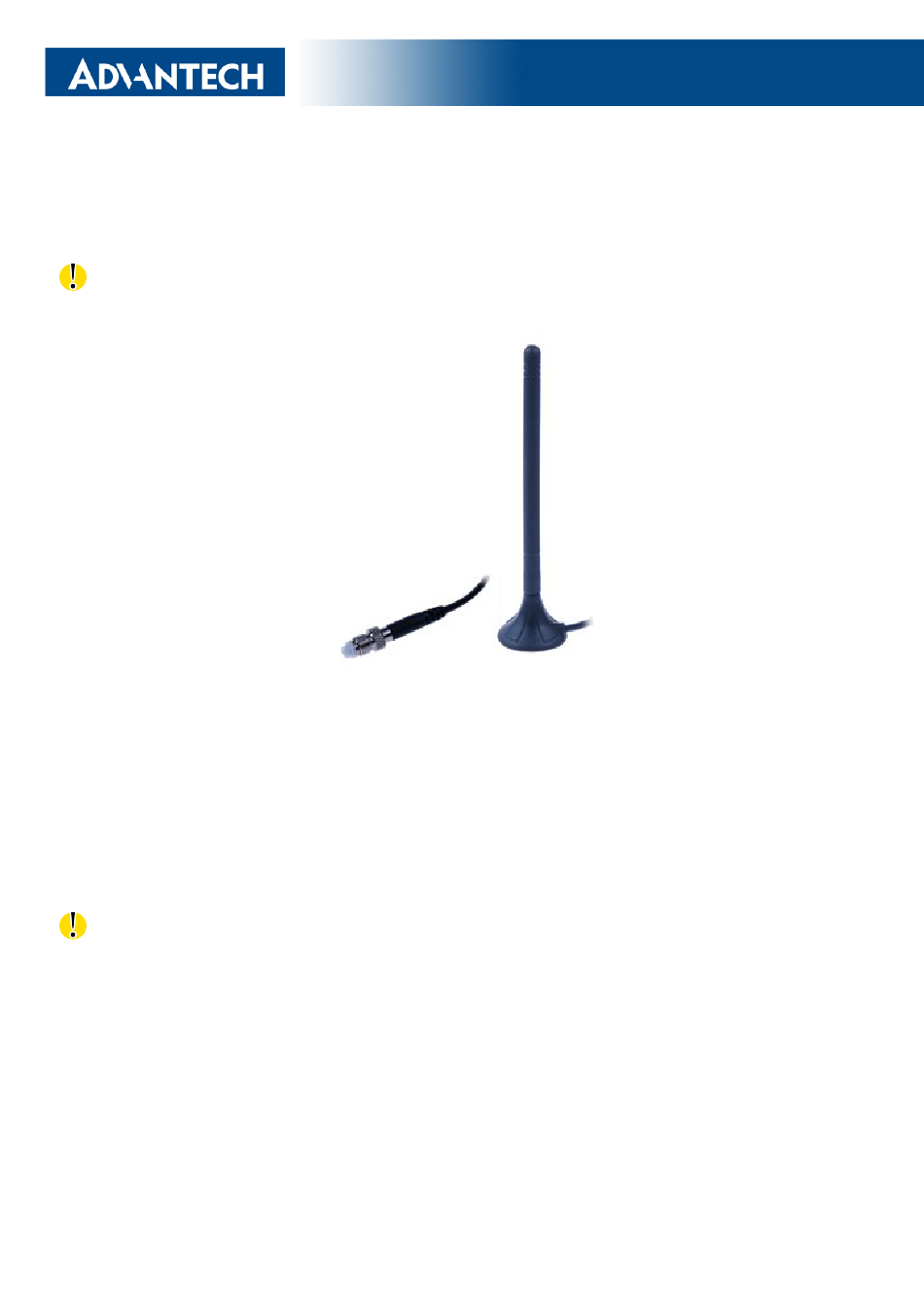

Figure 10: External antenna
13
