FORM 160.54-O1
ISSUE DATE: 9/10/2014

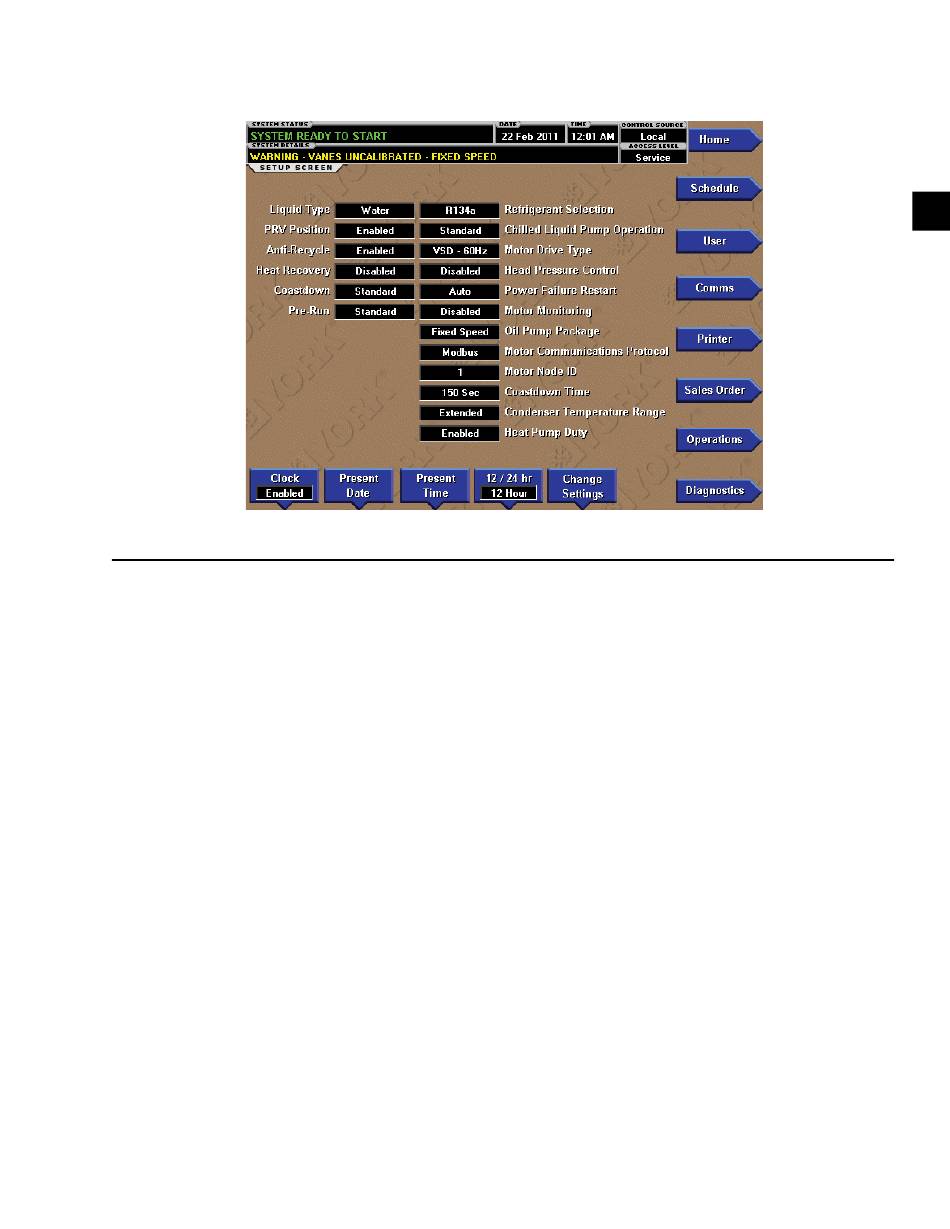

FIGURE 44 - SETUP SCREEN
OVERVIEW
This screen is the top level of the general configura-
tion parameters. It allows programming of the time and
date, along with specifications as to how the time will
be displayed (12 or 24 hour format). In addition, the
chiller configuration, as determined by the state of the
Microboard Program Jumpers and Program Switches
is displayed. A qualified Service Technician, following
instructions in OptiView Control Center – Service In-
structions (Form 160.54-M1), establishes this configu-
ration per the desired operation. This screen also serves
as a gateway to more subscreens for defining general
system parameters.
DISPLAY ONLY
031-01730-000 Microboard
Chilled Liquid Pump Operation:
Displays Standard or Enhanced
Motor Type:
Displays Fixed Speed or Variable Speed
Refrigerant Selection:
Displays R-22 or R134a
JOHNSON CONTROLS
SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION

SETUP SCREEN

Anti-Recycle:
Displays Disabled or Enabled
Power Failure Restart:
Displays Manual or Automatic
Liquid Type:
Displays Water or Brine
Coastdown:
Displays Standard (150 seconds) or Enhanced (15
minutes – Steam Turbine applications)
Pre-Run:
Displays Standard (50 seconds) or Extended (180
seconds)
Oil Pump Package:
Displays Fixed Speed or Variable Speed
Power Line Frequency (VSD only):
Displays 60Hz or 50Hz
031-02430-000 and 031-02430-001 Microboard
Refrigerant Selection
Displays R22 or R134a
Liquid Type
Displays Water or Brine
LD15426a
