FORM 160.54-O1
ISSUE DATE: 9/10/2014
(SOFTWARE VERSION C.OPT.01.19.307 AND LATER)

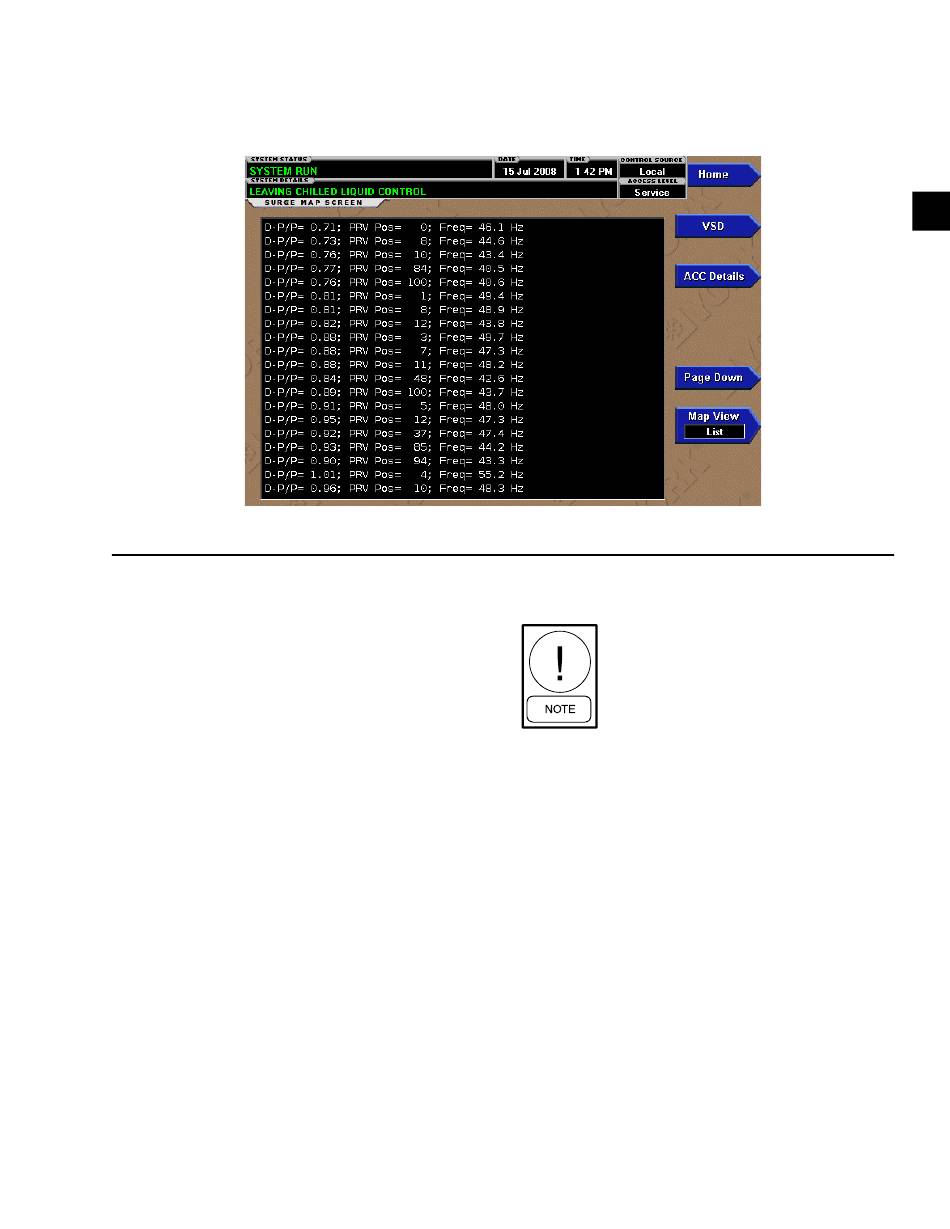

FIGURE 38 - SURGE MAP SCREEN - LIST VIEW (SOFTWARE VERSION C.OPT.01.19.307 AND LATER)
OVERVIEW
The surge map can be shown in either Table (default)
or List view as selected with the MAP VIEW key.
Shown above is the List view. In this view, the Delta
P/P, Pre-rotation Vanes position and VSD output fre-
quency of each mapped point are listed. It is the same
report that is generated when the surge map is printed
to a printer. Therefore, this view cannot be selected
while a print is in progress. If the SURGE MAP key is
pressed on the ACC DETAILS Screen while a print is
in progress, the Map View is reset to Table if it is set
to List.
The PAGE UP and PAGE DOWN keypad keys are
used to scroll to the previous or next list of parameters.
This screen is applicable to Variable Speed Drives
(VSD) (with the Motor Communications Protocol
Setpoint set to MODBUS; ACC Board is not pres-
ent) and Medium Voltage Variable Speed Drives (MV
VSD). It is not accessible if equipped with a VSD in
YORK Motor Communications Protocol Setpoint con-
figuration (ACC Board is present).
JOHNSON CONTROLS

SURGE MAP SCREEN - LIST VIEW

SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
Requires a login access level of SERVICE.
Service Technicians refer to the OptiView
Control Center - Service Instructions
(Form 160.54-M1) for operation instruc-
tions and explanation of all programmable
setpoints and displayed values.
PROGRAMMABLE
Map View
Allows the Service Technician to change the view from
List to Table.
Page Up
This key scrolls the contents of the view window up to
the previous list of parameters. If the window cannot
be scrolled up, this key will not be displayed.
Page Down
This key scrolls the contents of the view window to
the next list of parameters. If the window cannot be
scrolled down, this key is not displayed.
LD13833
111
2
