Figure 4 - Refrigerant Flow-Thru Chiller (Flooded Evaporator) - Johnson Controls YORK YK Style G OPTIVIEW Operation And Maintenance

SECTION 1 - DESCRIPTION OF SYSTEM AND FUNDAMENTALS OF OPERATION
HOT GAS
BYPASS VALVE
DISCHARGE
OPTIONAL
ISOLATION
VALVE
CONDENSER
LIQUID LEVEL
SUB-COOLER
OPTIONAL
ISOLATION
VALVE

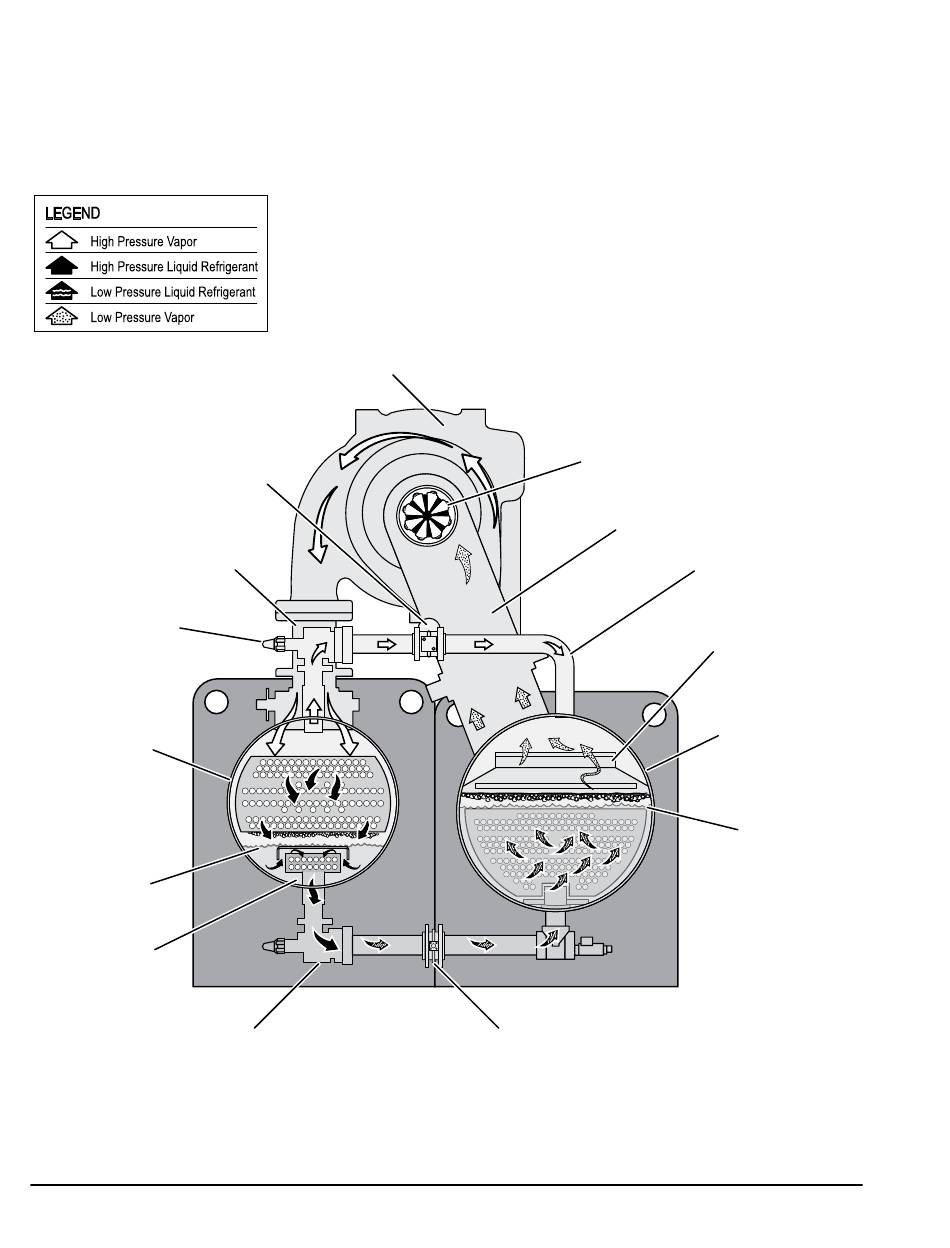

FIGURE 4 - REFRIGERANT FLOW-THRU CHILLER (FLOODED EVAPORATOR)

10
Refrigerant Flow-Thru Chiller
(Flooded Evaporator)
YK Mod G
Refrigerant Flow-Thru Cross-Section Diagram
(Flooded Evaporator)
COMPRESSOR
PRE-ROTATION
VANES
SUCTION
LIQUID LEVEL
VALVE
FORM 160.75-O1 (211)
OPTIONAL HOT GAS
BYPASS LINE
MESH ELIMINATORS or
SUCTION BAFFLE
EVAPORATOR
LIQUID LEVEL
LD00924B
