SECTION 2 - SYSTEM OPERATING PROCEDURES
FORM 160.75-O1 (211)
LD15609
** Not for all shutdowns. Refer to "Display Messages" in manual Optiview™ Control Center – Operation and Maintenance (Form 160.54-O1).

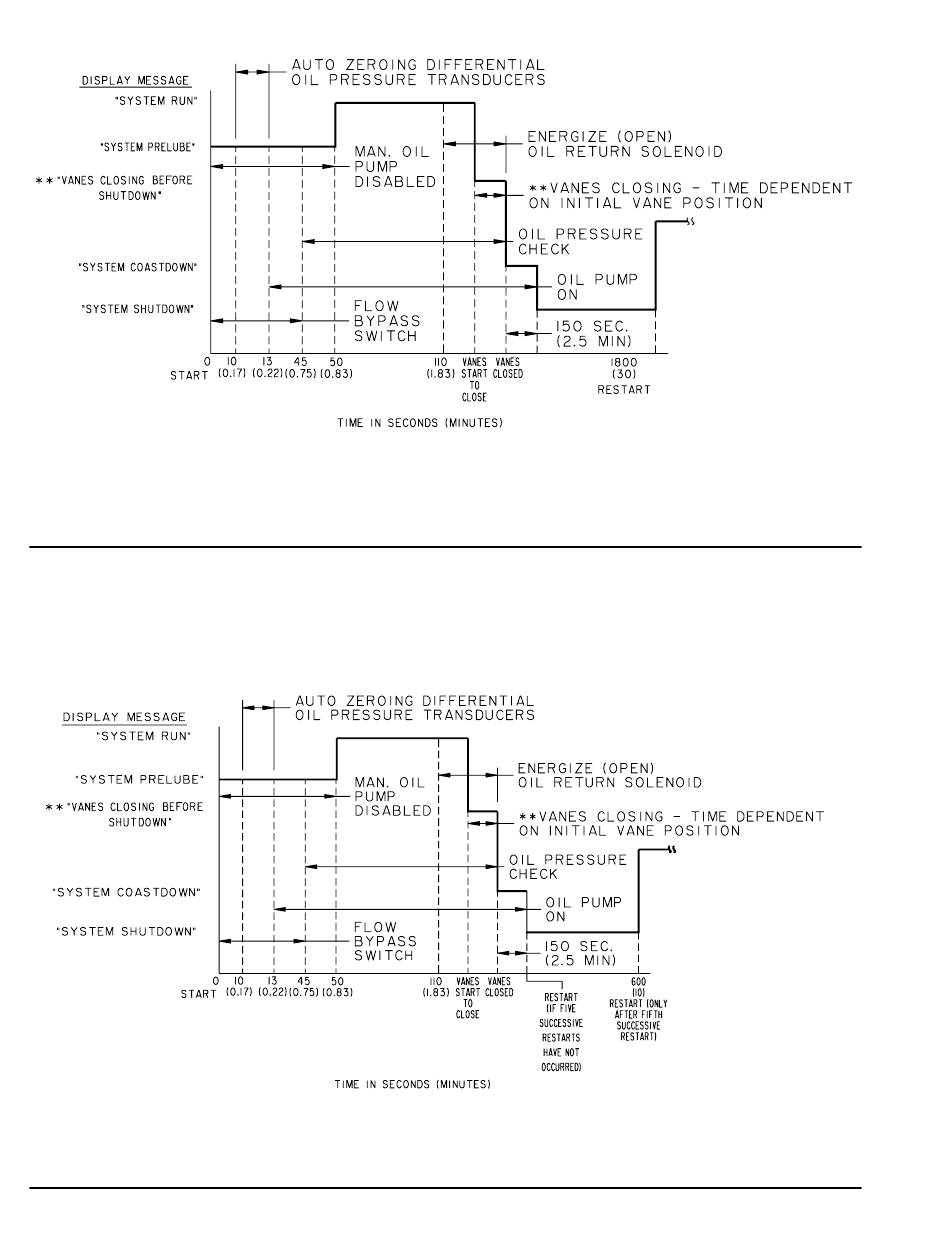

FIGURE 6 - CHILLER STARTING SEQUENCE AND SHUTDOWN SEQUENCE (EM STARTER AND SOLID
STATE STARTER)
LD15610
** Not for all shutdowns. Refer to "Display Messages" in manual Optiview™ Control Center – Operation and Maintenance (Form 160.54-O1).
FIGURE 7 - CHILLER STARTING SEQUENCE AND SHUTDOWN SEQUENCE (VARIABLE SPEED DRIVE)
