FORM 160.54-O1
ISSUE DATE: 9/10/2014
Brecknell –
Models: Brecknell CP130
• Dimensions:
5.25" Long x 3.75" Wide x 2.5" High
• Paper: Thermal 57mm (2.25")
• Type: Dot Matrix
• Purchase: 800-637-0529 (North America)
+44 (0) 845-246-6717 (Europe & ME)
• P/N AWT 05-505788 (printer, cable, 1 roll of paper)
• P/N AWT 05-505594 (power supply)
• P/N AWT 05-505671 (case, 20 rolls of paper)
R
TX1
MICRO
OPTIVIEW

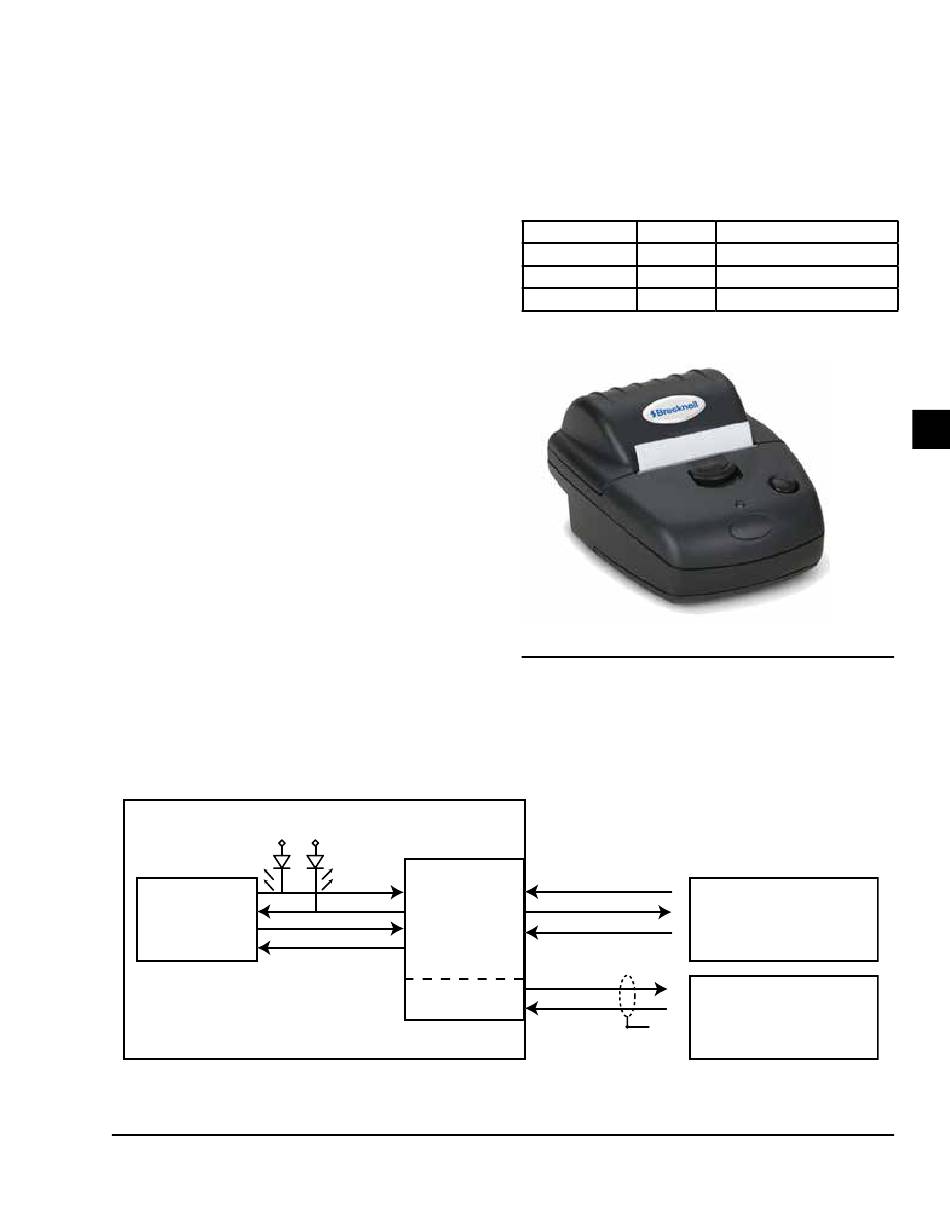

FIGURE 64 - COMMUNICATIONS BLOCK DIAGRAM
JOHNSON CONTROLS
G
RX1
RS-232
COM 1
COM 4B
PRINTER CONNECTIONS
Connect the printer to the Control Center Microboard
as follows. Only one printer can be connected at a time.
TABLE 6 - BRECKNELL CP130
Modify the cable and connect as shown below.
MICROBOARD PRINTER
J2-4 Pin 3
J2-2 Pin 5
J2-9 Pin 6
FIGURE 63 - BRECKMAN PRINTER
DB9
J2
GND
5
9
TX
4
2
DSR
2
4
Port 2B
J2
GTX
7
RX
GRX
6
TX
COM
SECTION 4 - PRINTING
FUNCTION
TX Data to the printer
Busy signal from the printer
Signal Common
LD17609
PC
HYPERTERMINAL
E-LINK
LD14492
207
4
