FORM 160.75-N1
SECTION 1 - INTRODUCTION
ISSUE DATE: 4/30/2014
ALL DIMENSIONS ARE IN INCHES (MM)
1
LD126544 LD12645
UNIT WEIGHT
UNIT WEIGHT
10,000 Lbs UP TO 35,009 Lbs 35,010 Lbs UP TO 58,349 Lbs
(4,536 Kgs UP TO 15,880 Kgs) (15,881 Kgs UP TO 26,467 Kgs)
LD12646 LD12647
UNIT WEIGHT UNIT WEIGHT
89,341 Lbs UP TO 115,000 Lbs 115,000 Lbs. UP TO 190,000 Lbs
(40,252 Kgs UP TO 52,164 Kgs) (52,163 Kgs UP TO 86,182 Kgs)

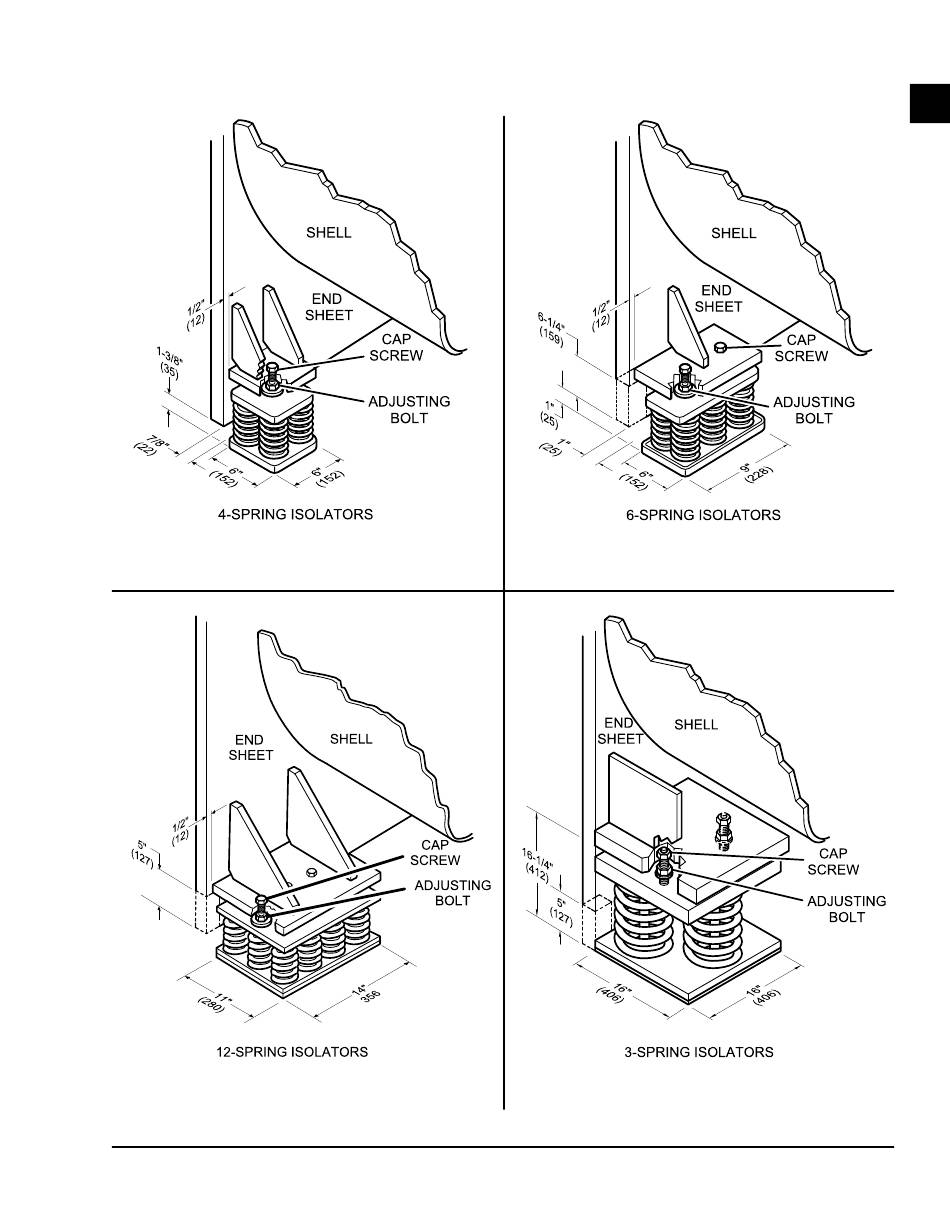

FIGURE 5 - SPRING ISOLATORS
13
