VCC 112T, index I

Components and identification

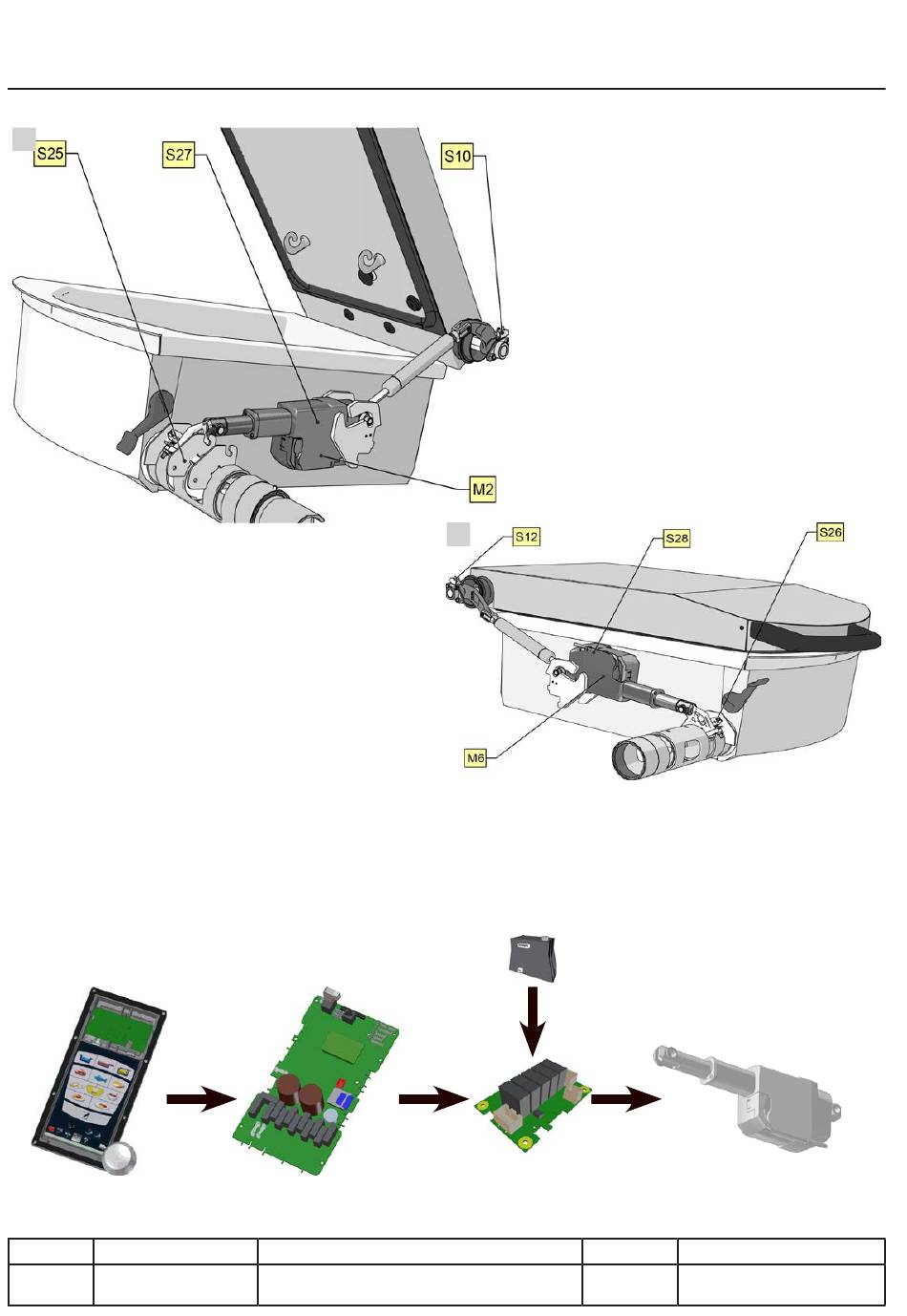

Actuator and limit switch identification
1
Left
●M2 Left tilting actuator
●S25 Left pan down limit switch
●S27 Left pan up limit switch
●S10 Left Autolift up limit switch
Right
●M6 Right tilting actuator
●S26 Right pan down limit switch
●S28 Right pan up limit switch
●S12 Right Autolift up limit switch
Components
TOUCH + TFT
+ A1 (MMi)
Line Units
VCCM 112T
VCCWE
A2 (Main Board)
Serial number (starting from)
E12VI1310xxxxxxx
2
T2
17-24VDC
A5 (X-Relay)
Sw
X.04
Motorisation Module
M2 / M6
Revision
v03 • July-2016 • Hen
