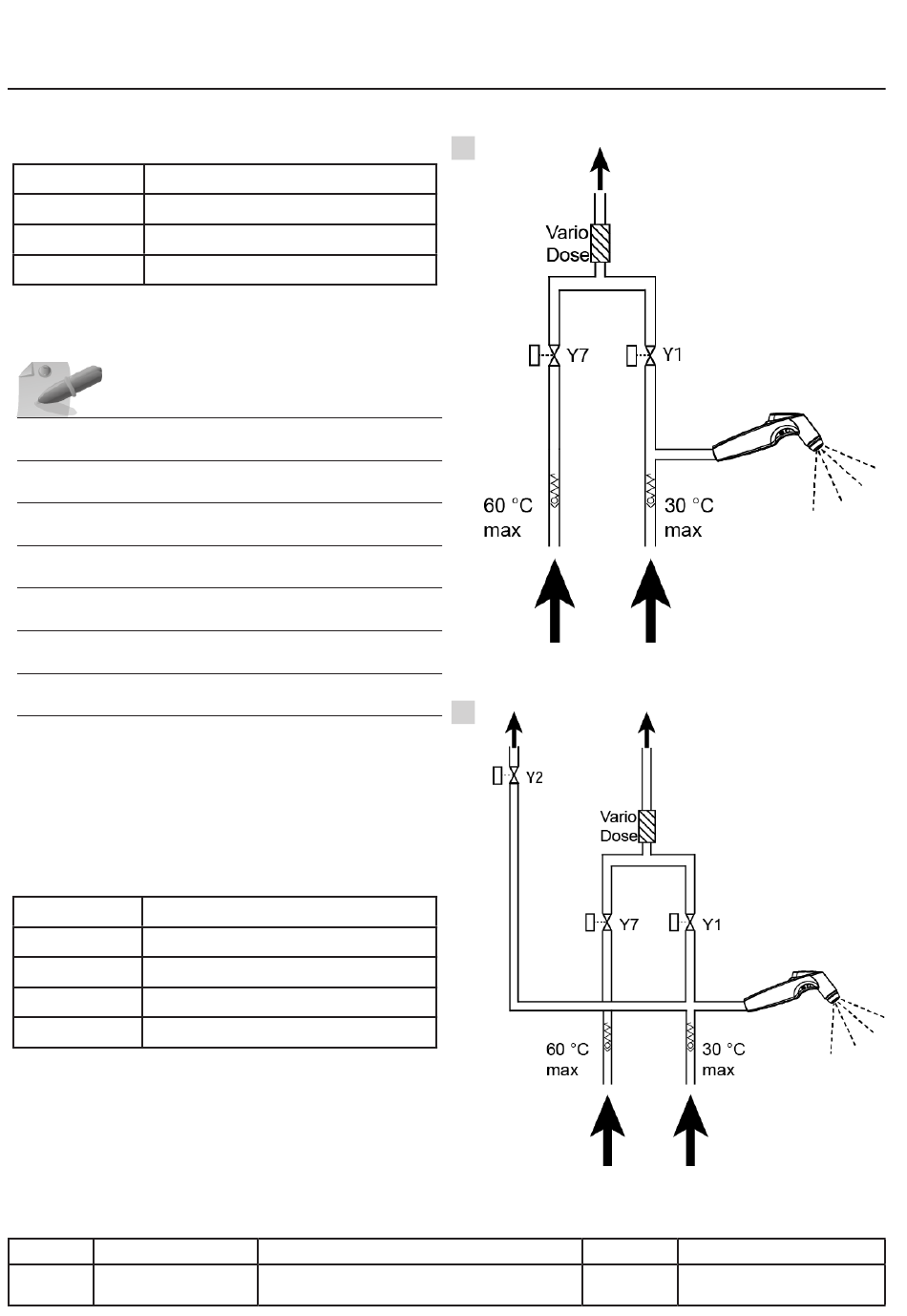

Hydraulic circuit
211 / 311 V and P, with hot water, since index I
Model 211/311 V
Fig. A
Label
Description
Cold water solenoid valve
Y1
Y7 Hot water solenoid valve
Flowmeter
VarioDose
Model 211/311 P
Fig. B
Label
Description
Y1 Cold water solenoid valve
Y2 Solenoid valve control box
Y7 Hot water solenoid valve
Flowmeter
VarioDose
Ligne Appareils
VCCM 211, 311
VCCWE 211P, 311P
Numéro de série (A partir de)
E21xI1602xxxxxxx
E31xI1601xxxxxxx
A
B
Sw
VIII.08
Hydraulic circuit Module
Révision
v03 • July-2016 • Hen
