Operation steps
1.
Press [CC] key and [Shift] + [CV] to enter parameter setting screen.
Constant
Range=0.0A
2.
Set maximum working current value and press [Enter] for confirmation.
Constant
Range =1.0A
3.
Set maximum voltage value and press [Enter] key.
Constant
High=0.00V
4.
Set minimum voltage value and press [Enter] key.
Constant
Low=0.00V
5.
Set high and low rate and press [Enter] key.
Constant
High-Rate Low-Rate
6.
Set ascending slope and press [Enter] key.
Constant
Rise up=0.0A/mS
7.
Set descending slope and press [Enter] key.
Constant
Fall down=0.0A/mS
8.
Complete parameter setting.
10.00V
0W
3.2.2 Constant voltage operation mode (CV)
Under CV mode, the electronic load will consume sufficient current to maintain
the input voltage at setting voltage. As shown in Fig. 3-2.
Load voltage
Current
Current
Current
Current
Current
Current
Current
0.0A
CC=1.0A
Note
If the above method is for editing auto test step (as mentioned below), constant current
range can also be set.
V
Load current
CV mode

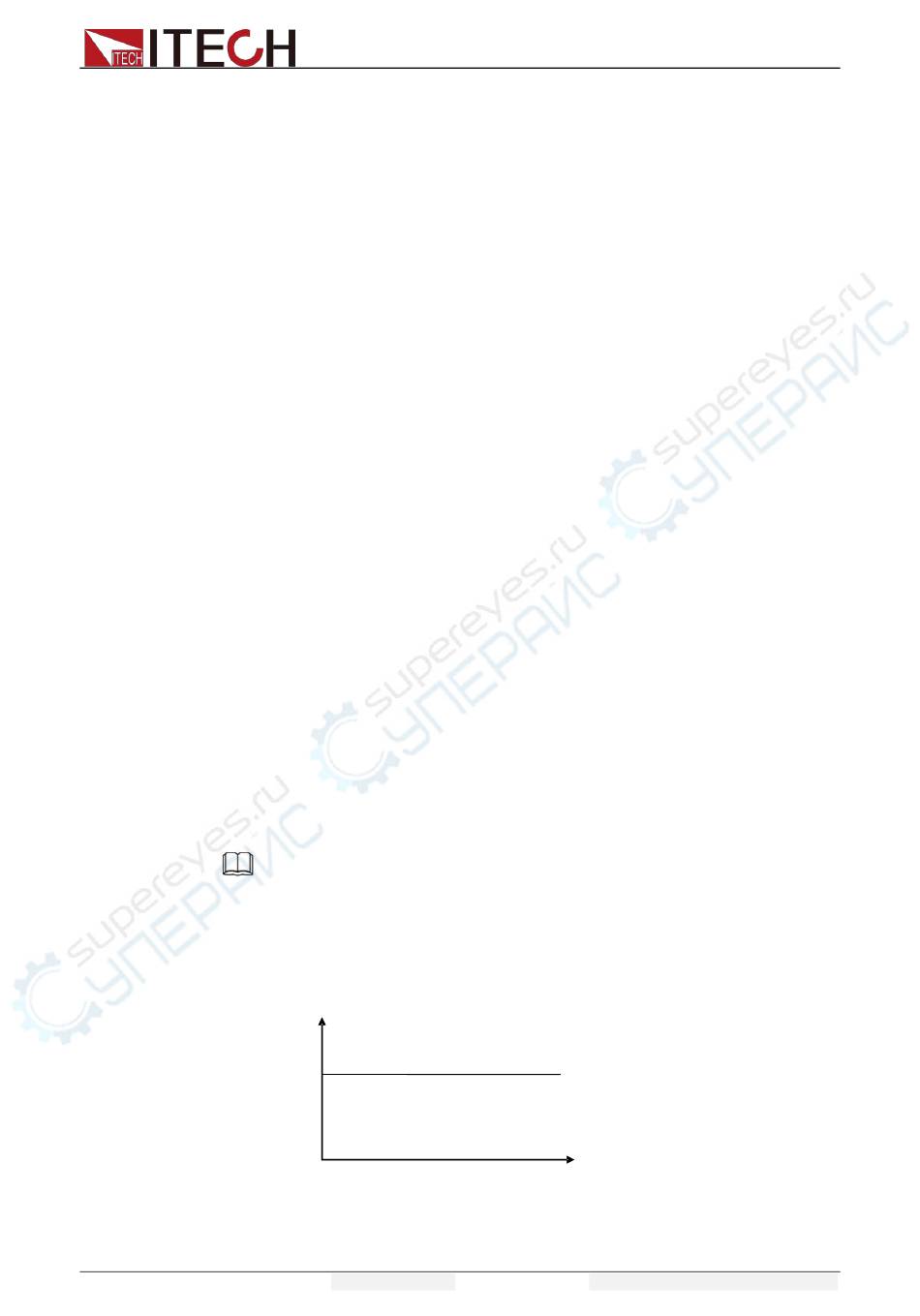

Fig. 3-2 Voltage-Current Relation Schema under CV Mode
Copyright © ITECH Electronics Co., Ltd.
Function and Features
Set voltage
I
8
