Operating manual

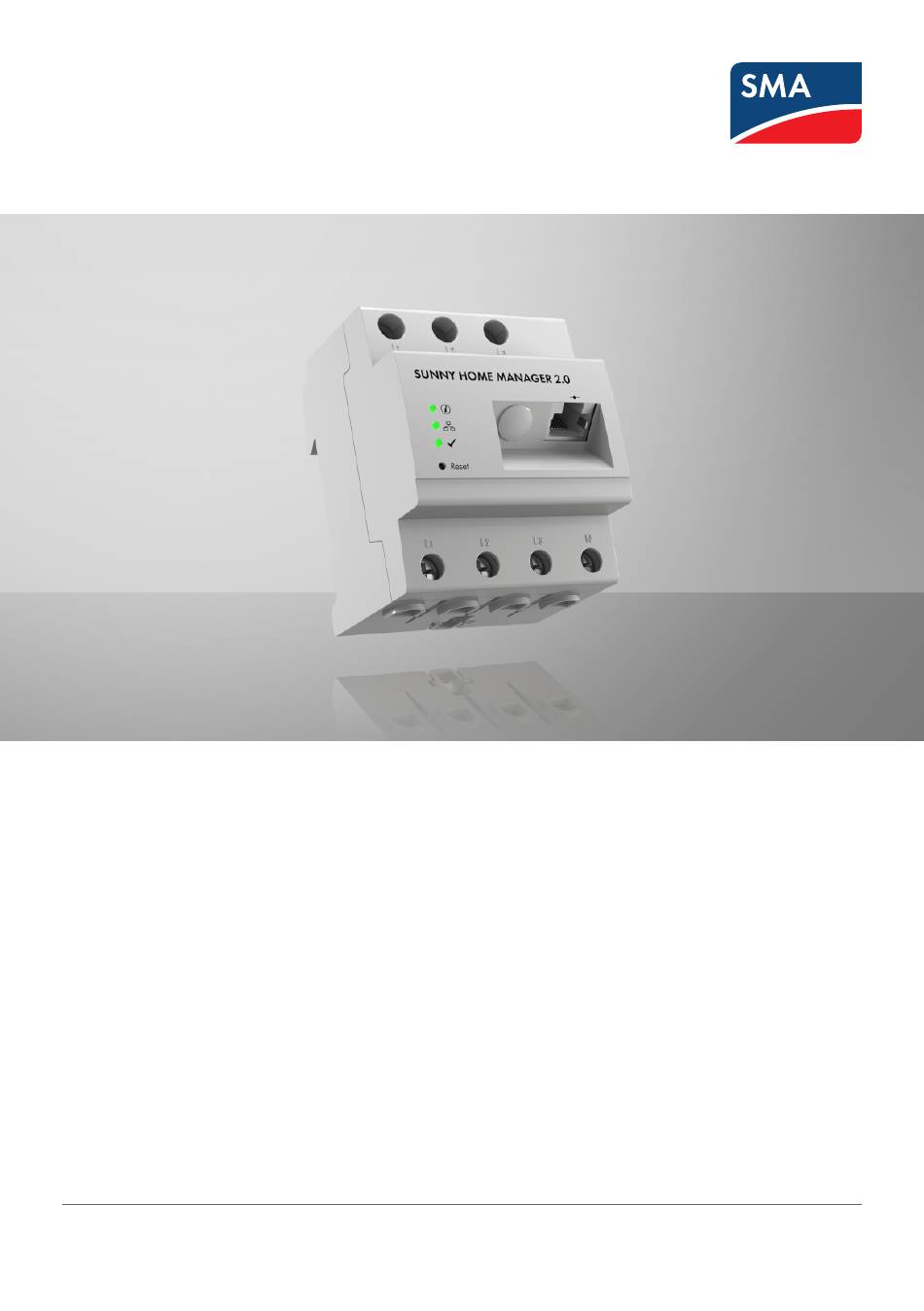

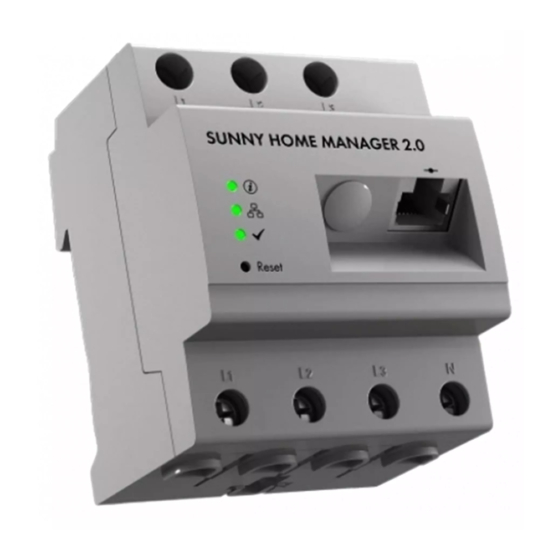

SUNNY HOME MANAGER 2.0
in Sunny Portal powered by ennexOS
ENGLISH
HM-20-ennexOS-BE-en-10 | Version 1.0
