Kit Description

Warranted Characteristics

4
When the instrument is installed according to the instructions in this document,
the rack-mounted instrument meets all warranted characteristics listed in the
instrument specification except for those listed. (See page 5, Environmental
Requirements.) Instruments mounted using methods other than those described in
these instructions may not meet their warranted characteristics.
See the specifications for your instrument model for tables of the warranted
characteristics.
Cooling air enters on the bottom and right sides as shown. (See Figure 3.) You
must provide adequate cool air to meet the ambient temperature requirements
listed. (See Table 3 on page 5.)

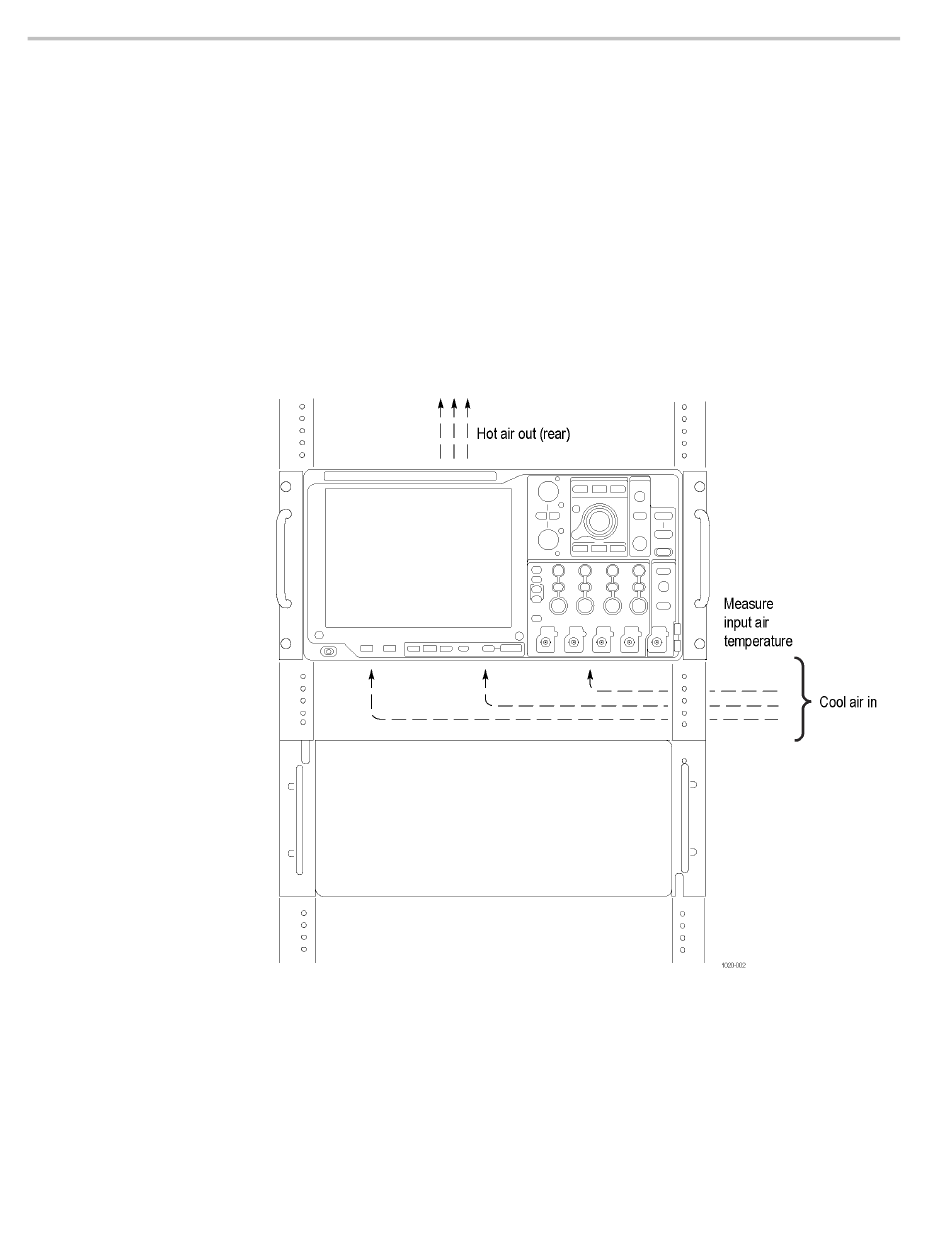

Figure 3: Instrument cooling
