Installation Instructions
18
2. Mount the slide-out track assemblies, using the slide drawer hardware listed
in the kit parts list:
a. Select the mounting position in rack: Select two 0.5 inch-spaced holes in
the front rail. Verify that the 4.36 inch and 10.500 inch clearances exist
relative to those mounting holes. (See Figure 14.)

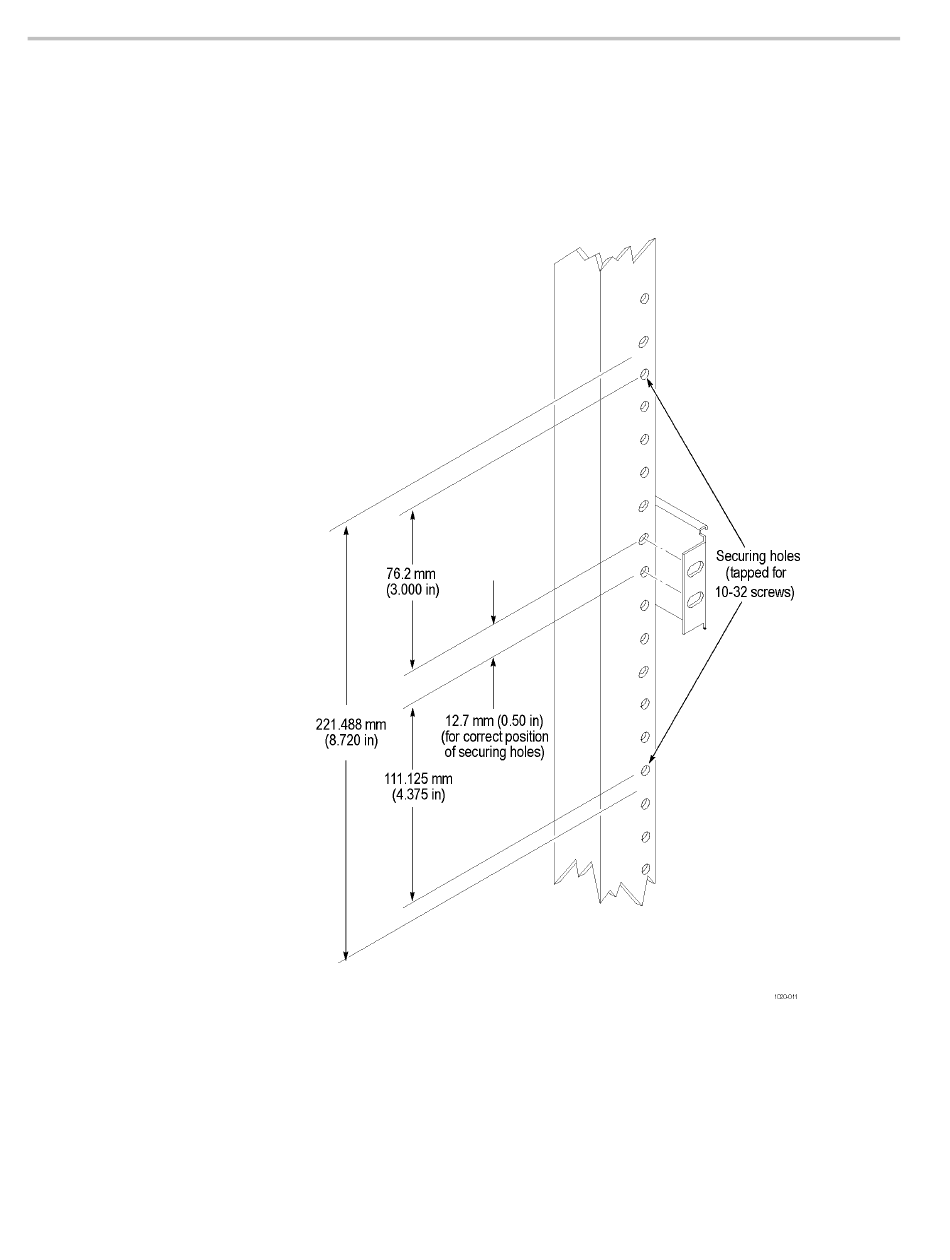

Figure 14: Vertical clearances for rack installation (left-front rail shown)
