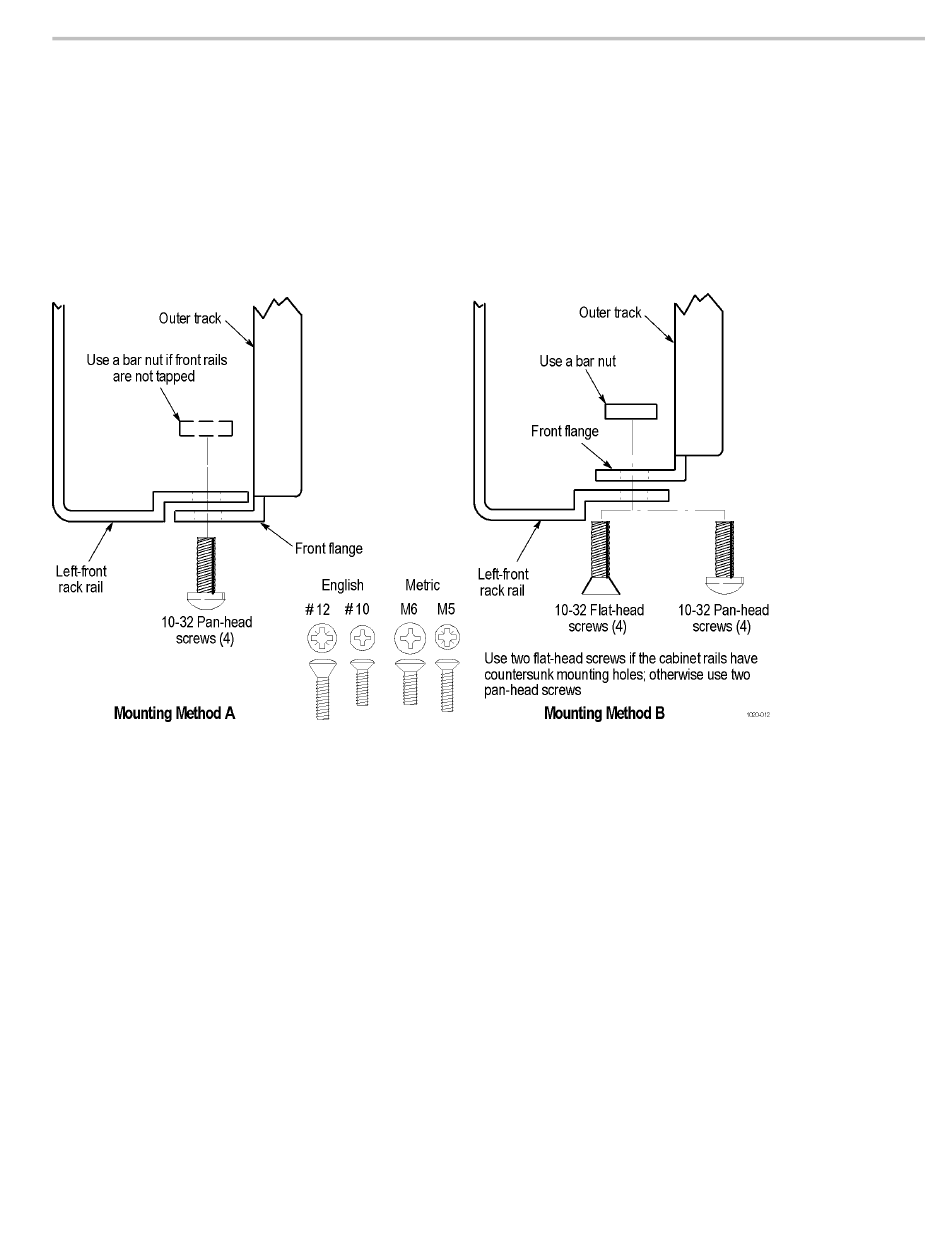

Figure 15: Installing slide-out track assemblies in rack (top view)
RMD5000 Rackmount Kit Instructions
b. Select the mounting method according to rack type:
To mount the slide-out tracks with their front and rear flanges outside of
the front and rear rails, use the mounting method A shown when doing
substep c. (See Figure 15.) Add a bar nut to the installation only if the
rails have untapped holes.
To mount with front and rear flanges inside of rails, use the mounting
method B. This mounting method assumes untapped holes.
c. Install in rack: Using the method and hardware determined from
substep b, secure the right slide-out track assembly to its front and rear
rails. The screws should be lightly seated so mounting can be adjusted
later.
