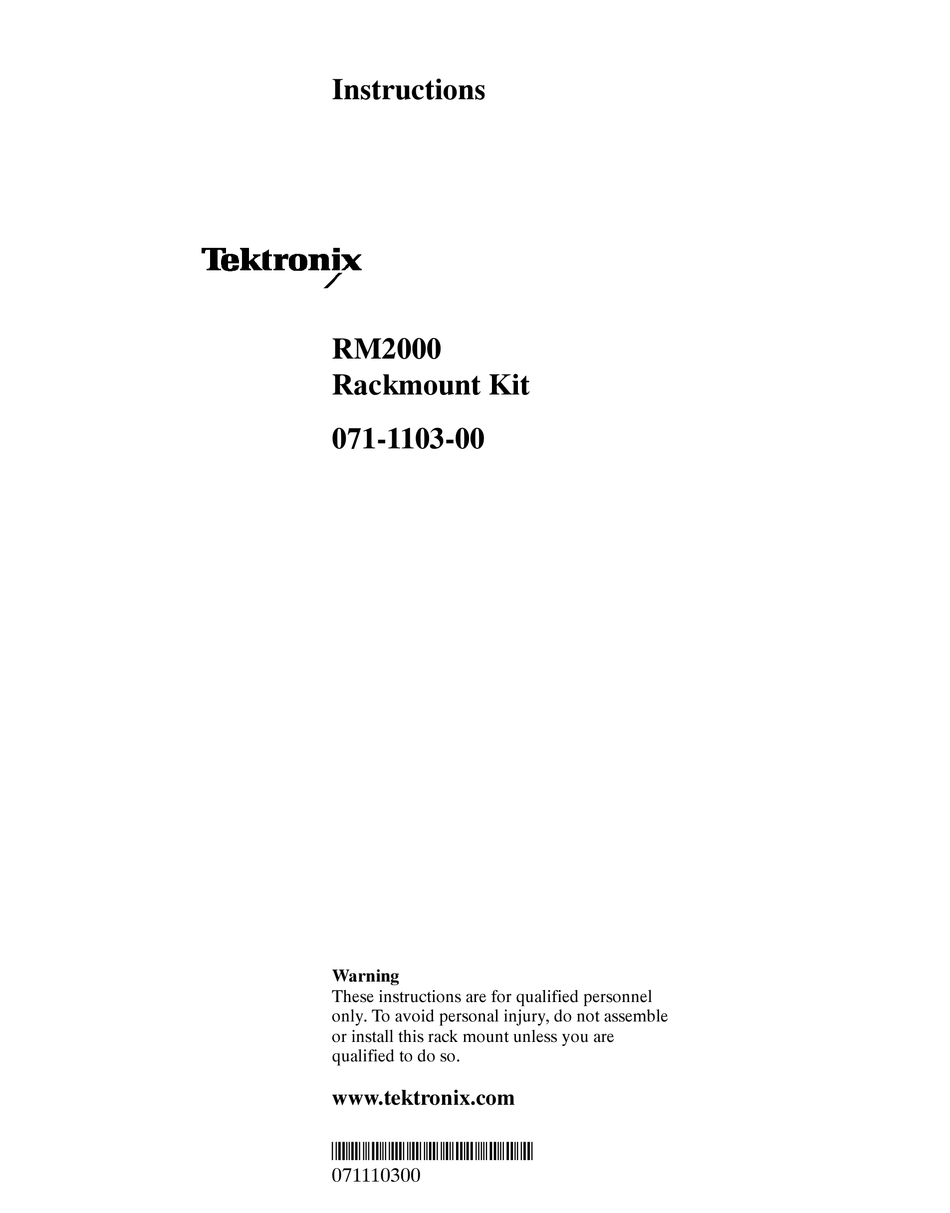

- Page 1 Instructions RM2000 Rackmount Kit 071-1103-00 Warning These instructions are for qualified personnel only. To avoid personal injury, do not assemble or install this rack mount unless you are qualified to do so. www.tektronix.com *P071110300* 071110300...
- Page 2 TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. WARRANTY Tektronix warrants that the products that it manufactures and sells will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment from an authorized Tektronix distributor.

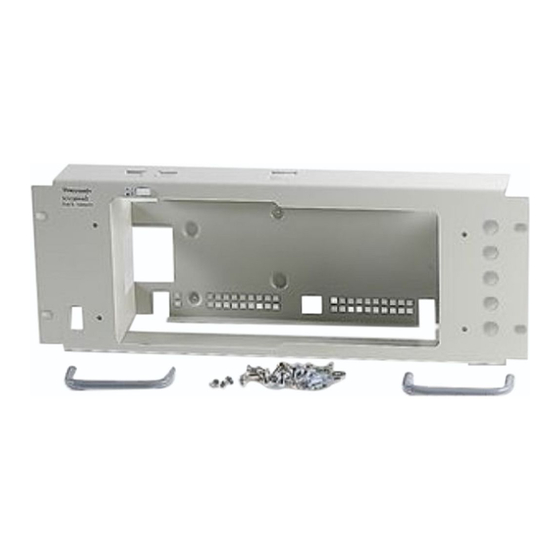

- Page 3 RM2000 Rackmount Kit The RM2000 is designed for use with the TDS1000/2000 Series oscilloscopes. RMS2000 Replacement Figure 1: RM2000 Rackmount Kit parts Figure 1- x Part number Description 1- - 1 RM2000 RM2000 Rackmount Kit, includes a front and back...
- Page 4 Figure 2: RM2000 Rackmount assembly 482.6 mm (19.000 in) 37.3 mm 44.5 mm 465.5 mm (1.469 in) (1.750 in) (18.327 in) 102.2 mm (4.024 in) 176.2 mm 101.6 mm (6.938 in) (4.000 in) Figure 3: Dimensions of the RM2000 Rackmount RM2000 Rackmount Instructions...
