Tektronix RMD5000 Instructions Manual page 10

Installation Instructions
Remove
8
Equipment Required: Screwdriver handle with T-15 tip.
This procedure prepares the instrument for installation of the rackmount parts.
NOTE.
Retain all parts removed from the instrument for later use. Some of those
parts will be reinstalled as you perform this rack conversion; store the remainder
in case reconversion to a standard instrument configuration is desired at a later
time.
1. Disconnect the power cord from the rear of the instrument.
2. Remove the four T-15 TORX screws that secure the rear cover to the front
case assembly. (See Figure 5.)
3. Remove the rear cover.

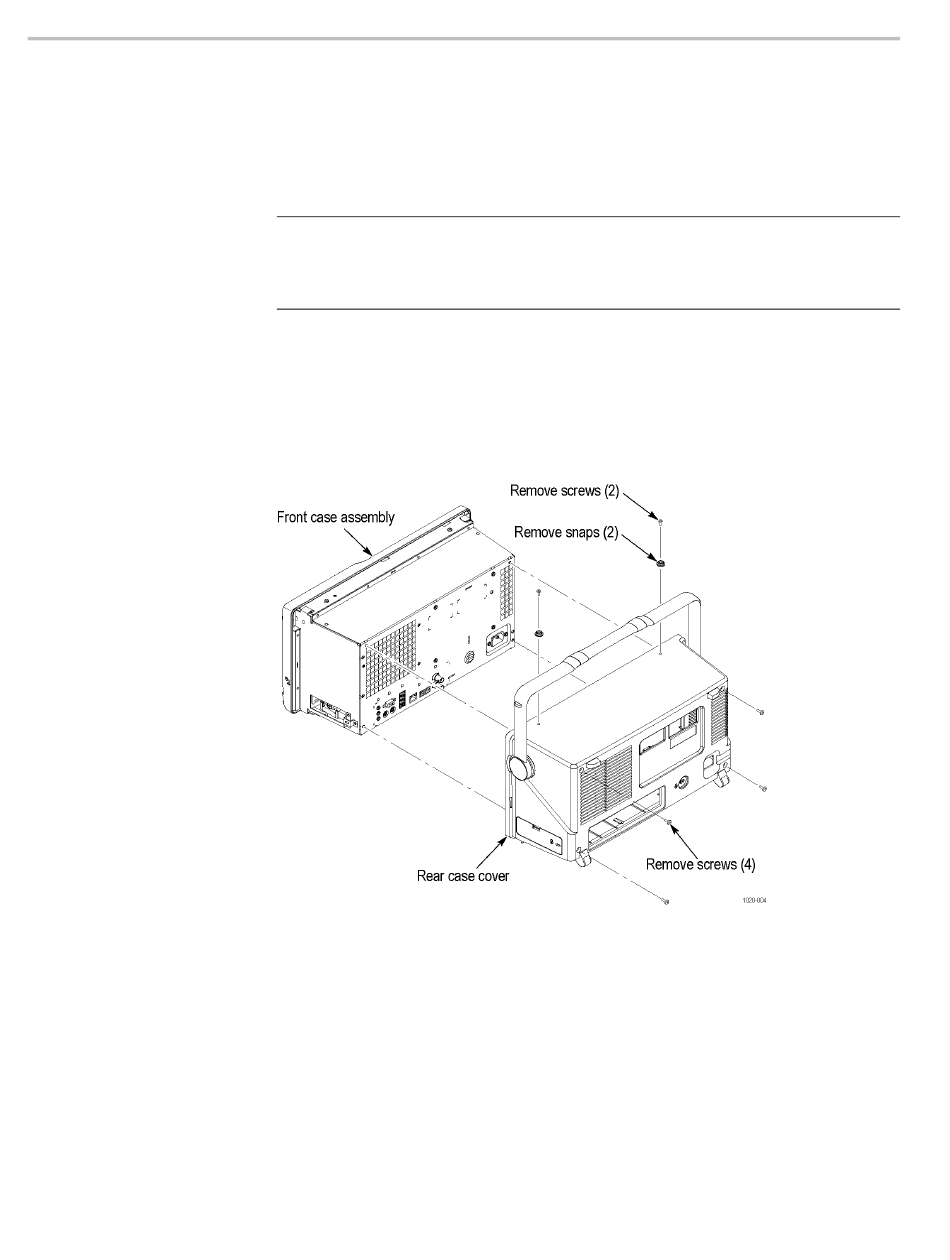

Figure 5: Removing the rear case cover
RMD5000 Rackmount Kit Instructions
