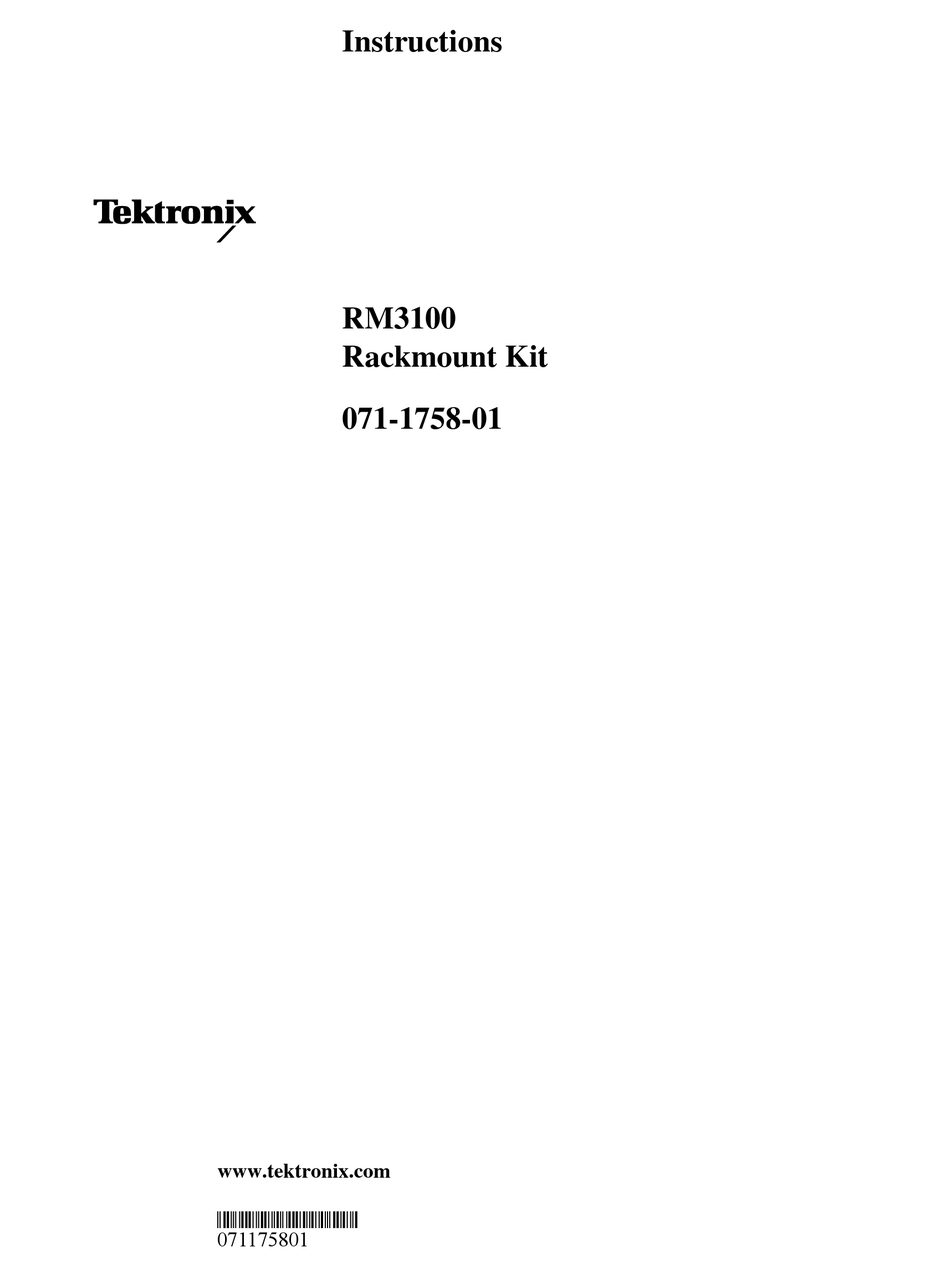

- Page 1 Instructions RM3100 Rackmount Kit 071-1758-01 www.tektronix.com 071175801 071175801...
- Page 2 Tektronix, shipping charges prepaid, and with a copy of customer proof of purchase. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.

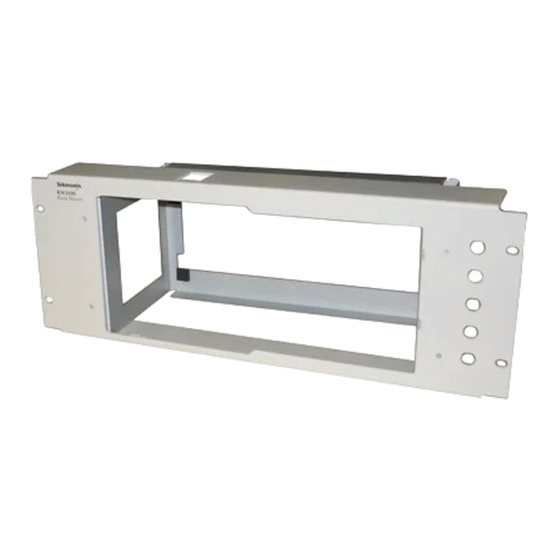

- Page 3 RM3100 Rackmount Kit Kit Description The RM3100 is designed for use with the AFG3000 Series Arbitrary/Function Generators. These instructions are for qualified personnel only. To avoid personal WARNING. injury, do not assemble or install this kit unless you are qualified to do so. Before proceeding, remove all cables from the instrument, including the power cable.
- Page 4 RM3100 Rackmount Kit Unpack the RM3100 Rackmount Kit and check that you received all items listed Unpack in Table 1. Table 1: RM3100 kit parts Figure # Part number Quantity Description RM3100 1 ea RM3100 rackmount kit, includes a front and back panel...
- Page 5 RM3100 Rackmount Kit Assembly instructions are shown in Figure 2 and Figure 3. Assembly Instructions Figure 2: RM3100 Rackmount kit assembly – step 1 Figure 3: RM3100 Rackmount kit assembly – step 2 RM3100 Rackmount Kit Instructions...
- Page 6 482.6 154.3 154.3 465.5 44.4 37.3 37.3 25.4 101.6 176.2 101.6 Front 36.8 All dimensions are shown in millimeters. RM3100 conforms to EIA-310-D specification. Weight (without AFG3000 series): 2.1 kg Figure 4: RM3100 Rackmount kit dimensions RM3100 Rackmount Kit Instructions...
- Page 7 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Tektronix RM3100...
