Installation Instructions

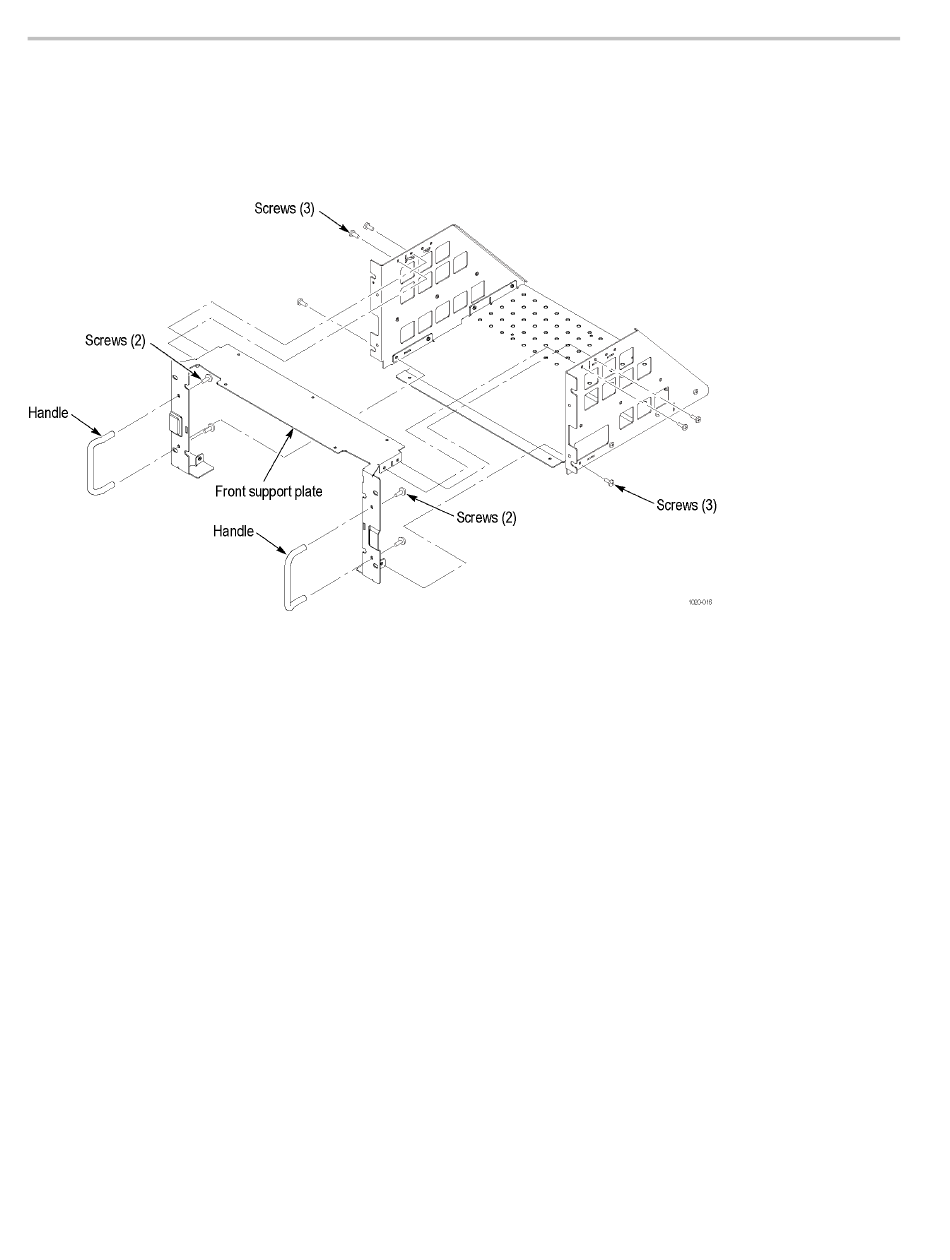

Figure 7: Assembling the rackmount front support plate
10
2. Fasten the front support plate to the left and right mounting plates with six
6-32 x 0.250 inch pan head T-15 TORX-drive screws, lining up the dimples in
the back support plate with the slots in the mounting plates. (See Figure 7.)
Tighten screws to 8 in-lb.
3. Install the two handles using four 10-32 x 0.25 inch pan head T-20
TORX-drive screws tightened to 16 in-lb. Handles should curve towards
the sides of the instrument.
