- Page 1 Test Equipment Depot - 800.517.8431 - TestEquipmentDepot.com Instructions RM3000 Rackmount Kit for TDS3000 Series Oscilloscopes 071-0326-00...
- Page 2 Copyright © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Printed in the U.S.A.
- Page 3 Tektronix, shipping charges prepaid, and with a copy of customer proof of purchase. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located.
-
Page 4: Installation

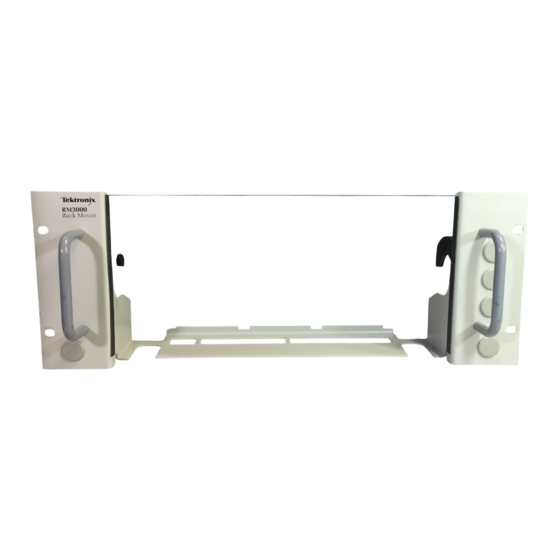

Test Equipment Depot - 800.517.8431 - TestEquipmentDepot.com Installation The RM3000 Rackmount kit fits all TDS3000 Series Oscilloscopes. Unpack and assemble the RM3000 Rackmount as shown in the illustrations on the following pages. Unpack RM3000 Rackmount Kit Instructions... - Page 5 Installation Install Pads RM3000 Rackmount Kit Instructions...
- Page 6 Installation Install Oscilloscope Rotate the handle down RM3000 Rackmount Kit Instructions...
- Page 7 Installation Install Retainers Retainers (2) 8-32 Lock nuts (6) 8-32 Lock nuts (6) RM3000 Rackmount Kit Instructions...
- Page 8 Test Equipment Depot - 800.517.8431 - TestEquipmentDepot.com Installation Install Handles and Brace Handles (2) Brace Pan-head screws (4) Lockwashers (4) Lockwashers (4) Pan-head screws (4) RM3000 Rackmount Kit Instructions...
- Page 9 Installation Install Covers or Optional BNCs Optional BNC (order 103-0070-00) Covers (5) RM3000 Rackmount Kit Instructions...
- Page 10 Installation Mount in Rack To mount the completed assembly, select the appropriate size metric or English screws for the rack. Washers (4) Screws (4) (Select appropriate size) English Metric # 12 # 10 RM3000 Rackmount Kit Instructions...
- Page 11 Test Equipment Depot - 800.517.8431 - TestEquipmentDepot.com Installation Store Properly RM3000 Rackmount Kit Instructions...
-
Page 12: Environmental Specifications
Installation Environmental Specifications With the exception of the following characteristics, the environmental specifica- tions listed in the associated user and service manuals apply to the rackmounted instrument. Name Description Temperature Operating: +5_ C to +50_ C, ambient temperature inside rack cabinet Non-operating: –20_ C to +60_ C, ambient temperature inside rack cabinet Vibration Operating: 0.26g rms, 5–500Hz, 10 min per axis...
