Installation Instructions
12
5. Install the instrument into the rackmount enclosure using six 6-32 x 0.250
inch flat-head T-15 TORX-drive screws tightened to 8 in-lb. (See Figure 9.)

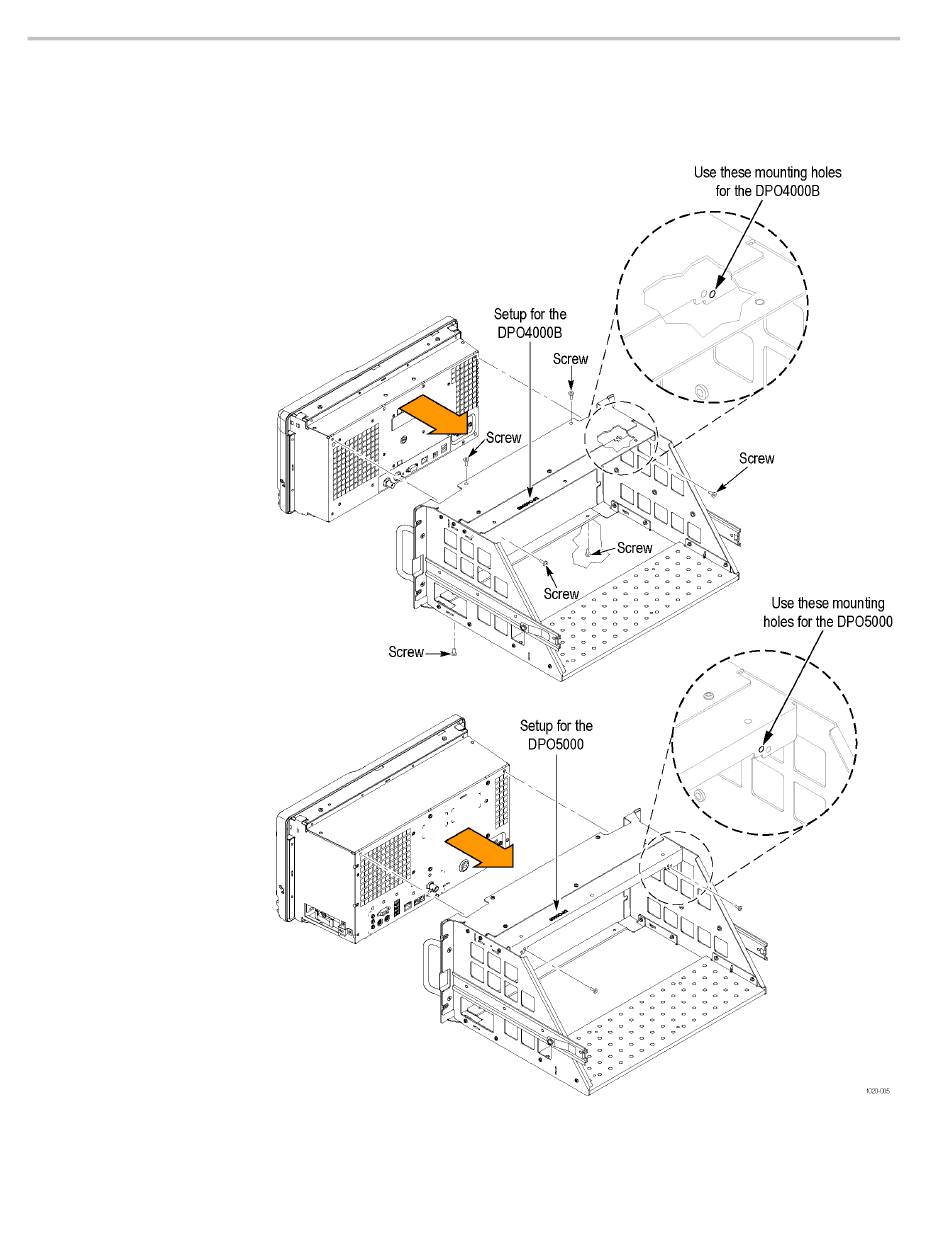

Figure 9: Installing the instrument in the enclosure
RMD5000 Rackmount Kit Instructions
