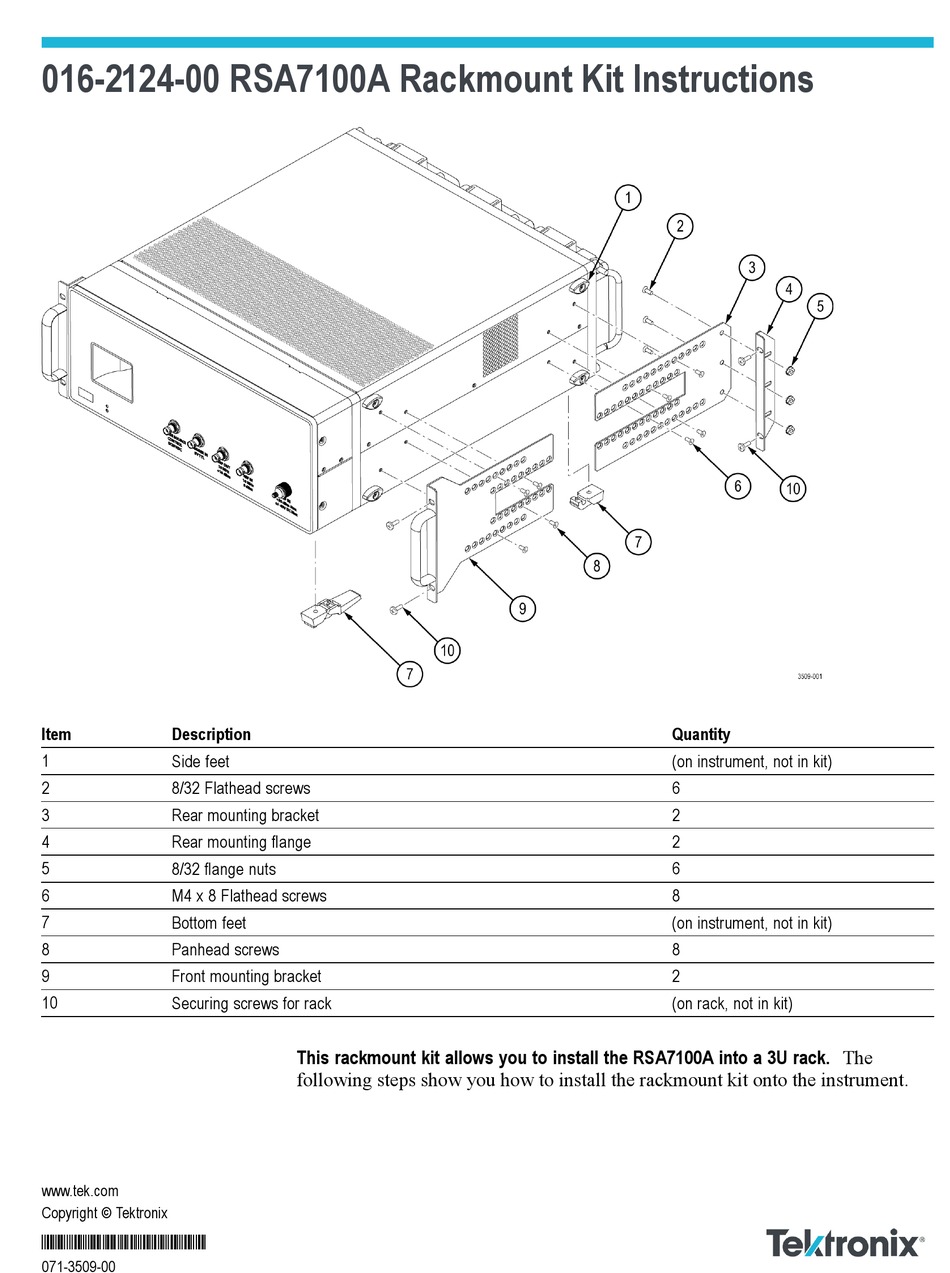

016-2124-00 RSA7100A Rackmount Kit Instructions
Item
Description
1
Side feet
2
8/32 Flathead screws
3
Rear mounting bracket
4
Rear mounting flange
5
8/32 flange nuts
6
M4 x 8 Flathead screws
7
Bottom feet
8
Panhead screws
9
Front mounting bracket
10
Securing screws for rack
www.tek.com
Copyright © Tektronix
*P071350900*
071-3509-00
This rackmount kit allows you to install the RSA7100A into a 3U rack. The
following steps show you how to install the rackmount kit onto the instrument.
Quantity
(on instrument, not in kit)
6
2
2
6
8
(on instrument, not in kit)
8
2
(on rack, not in kit)
