Installation Instructions
Mount the Track Hardware
(Optional)

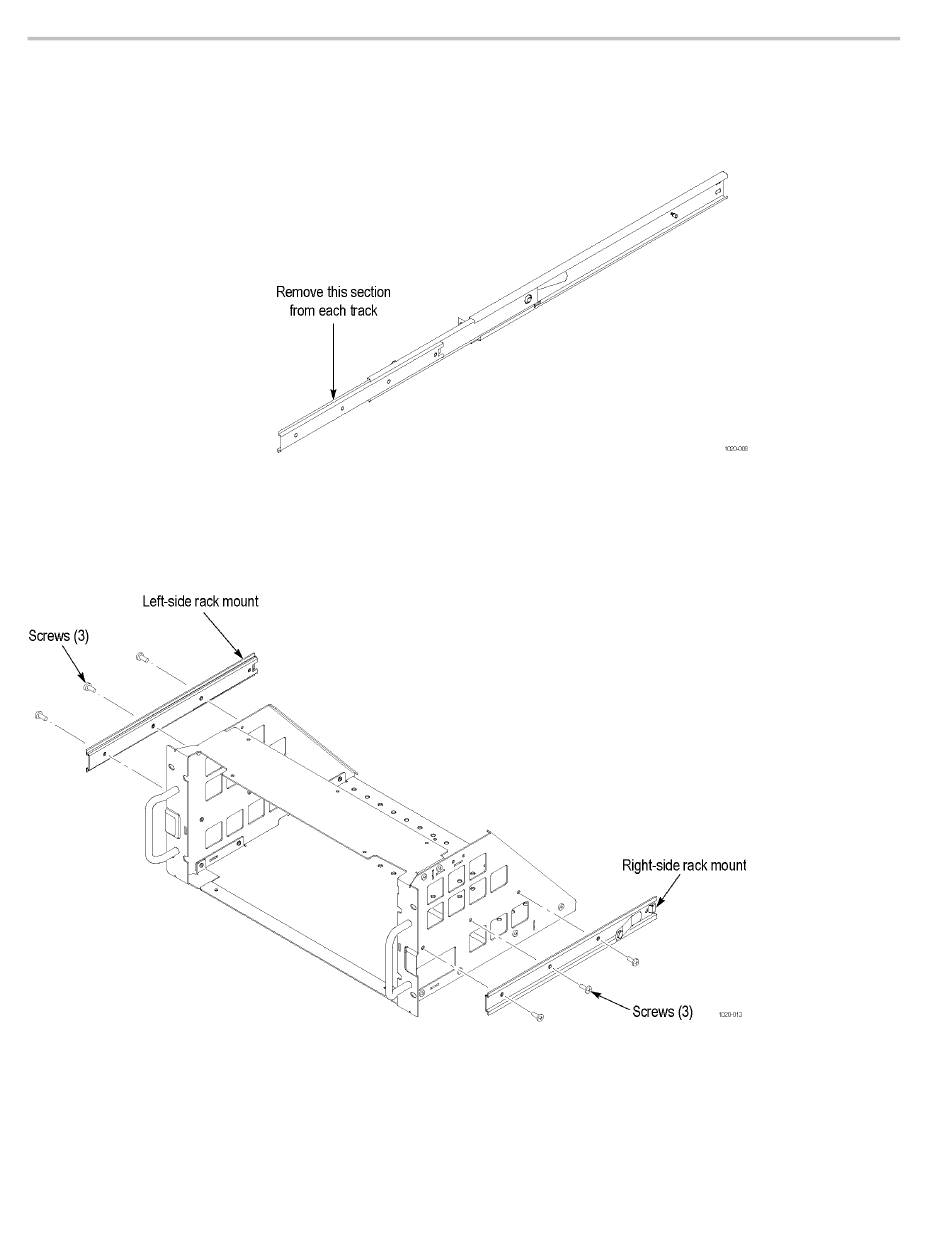

Figure 11: Installing the left- and right-side track sections
14
Install the optional slide assembly kit as follows:
1. Remove the front section of each of the two tracks. (See Figure 10.)
Figure 10: Preparing the tracks for mounting
2. Install the front left- and right-side track sections on the instrument using four
6-32 x 0.250 inch pan head T-15 TORX-drive screws tightened to 8 in-lb.
(See Figure 11.)
RMD5000 Rackmount Kit Instructions
