RMD5000 Rackmount Kit Instructions
4. Install the top support plate; note the orientation for the different instruments:
(See Figure 8.)
For DPO4000B instruments, install the top support plate with the flange
toward the front of the enclosure so that the "DPO4000B" stamping on the
plate is visible.
For DPO5000 instruments, install the top support plate with the flange toward
the back of the enclosure.

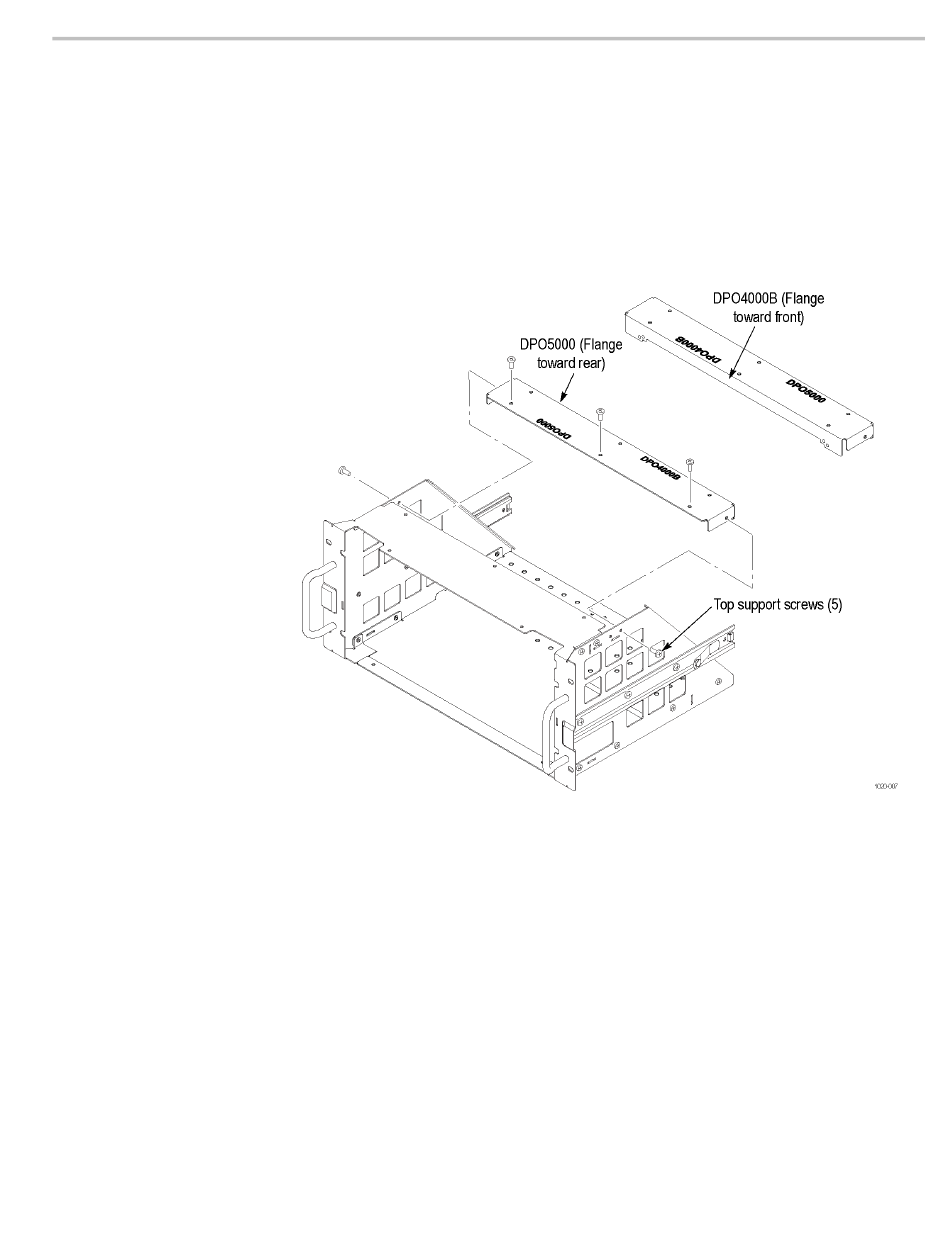

Figure 8: Installing the top support plate
Installation Instructions
11
