Summary of Contents for Tektronix RM3100

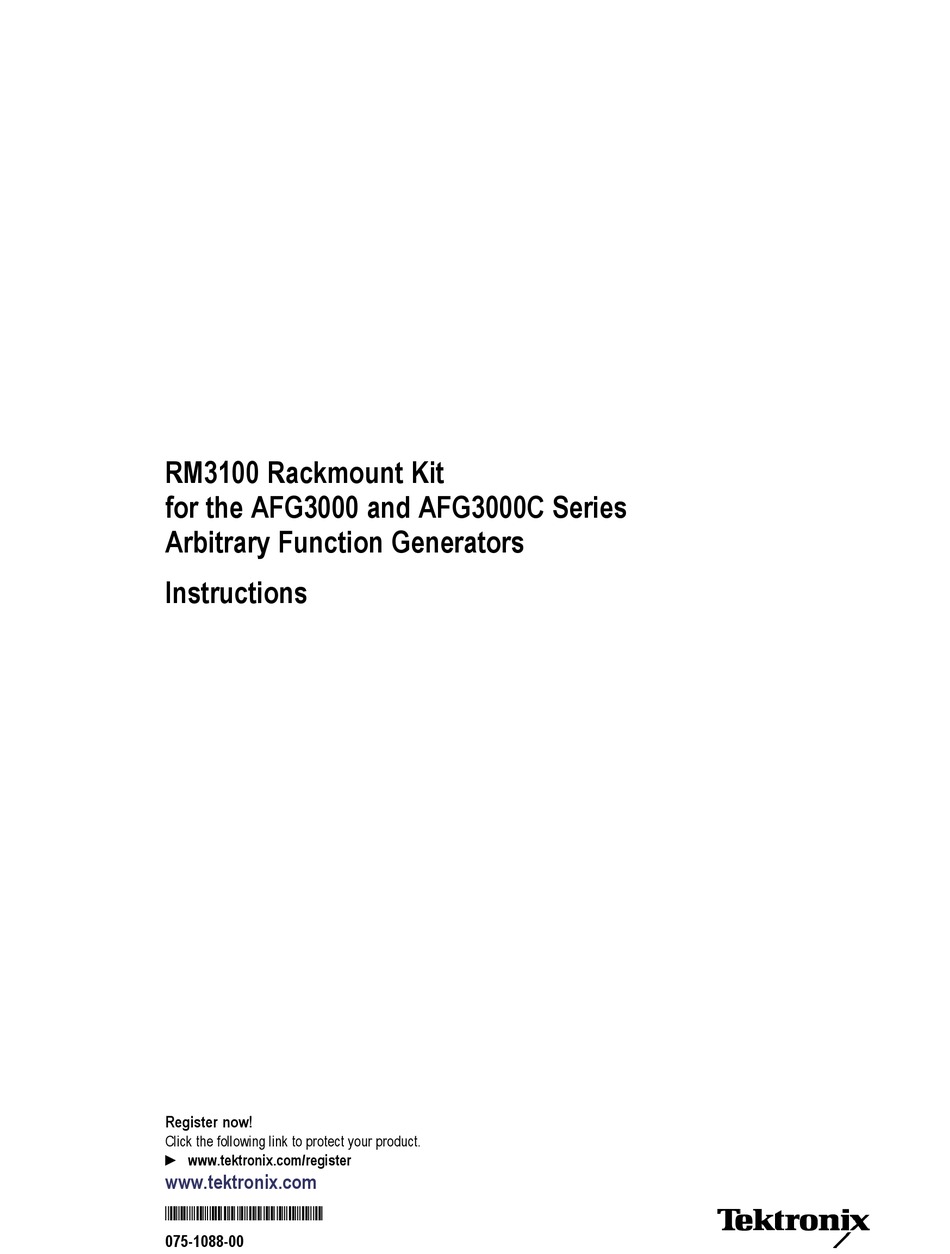

- Page 1 RM3100 Rackmount Kit for the AFG3000 and AFG3000C Series Arbitrary Function Generators Instructions Register now! Click the following link to protect your product. ► www.tektronix.com/register www.tektronix.com *P075108800* 075-1088-00...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
- Page 3 Warranty Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
-
Page 5: Table Of Contents
Assembly instructions ........................ . RM3100 Rackmount Kit Instructions... - Page 6 Table of Contents RM3100 Rackmount Kit Instructions...
-
Page 7: Service Safety Summary
Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. RM3100 Rackmount Kit Instructions... -
Page 8: Preface

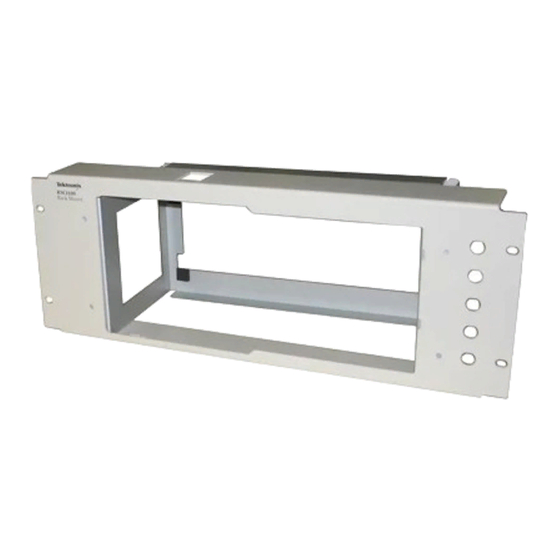

Preface Preface The RM3100 is designed for use with the AFG3000 and AFG3000C Series Arbitrary Function Generators. This kit, once installed, allows you to mount a generator into an instrument rack. WARNING. These instructions are for qualified personnel only. To avoid personal injury, do not assemble or install this kit unless you are qualified to do so. -
Page 9: Kit Parts
The following figure and table show the kit parts. Table 1: Kit parts list Figure # Part number Quantity Description RM3100 1 ea RM3100 rackmount kit, includes a front and back panel set, Instructions, bag of screws and handles 075-1088-xx 1 ea Instructions (this document) — 016-1964-xx... -
Page 10: Instrument Dimensions
Use these nuts and washers when the carrying handles are not attached. Instrument dimensions All following dimensions are shown in millimeters. The RM3100 conforms to EIA-310-D specification. Rackmount weight (without an AFG3000 model installed) is 2.1 kg. Figure 1: RM3100 rackmount kit dimensions... -
Page 11: Assembly Instructions
Assembly instructions Assembly instructions Assembly instructions are shown in the following two figures. Figure 2: RM3100 rackmount kit assembly – step 1 RM3100 Rackmount Kit Instructions... - Page 12 Assembly instructions Figure 3: RM3100 rackmount kit assembly – step 2 RM3100 Rackmount Kit Instructions...
