5.6 Hydraulic system
The oil pump motor drives the gear pump to provide hydraulic power. The
two lift cylinders are responsible for the lifting and lowering of the forks. The
two tilting cylinders complete the front and rear tilting movement of the mast ,
and one side shifting cylinder completes the left and right side shifting of the
pallet rack.The control of the lifting, tilting and side-shifting oil circuits is
controlled by three handles on the triple valve. The lifting action is controlled by
a single-acting oil circuit on the triple valve, and the tilting and side movement
are controlled by the double-acting oil path on the triple valve.The hydraulic
system pressure of this model can only be adjusted on the triple valve. It has
been debugged before leaving the factory. After the factory, it is strictly
forbidden to adjust the self-sales personnel or professional maintenance
personnel to avoid safety accidents.

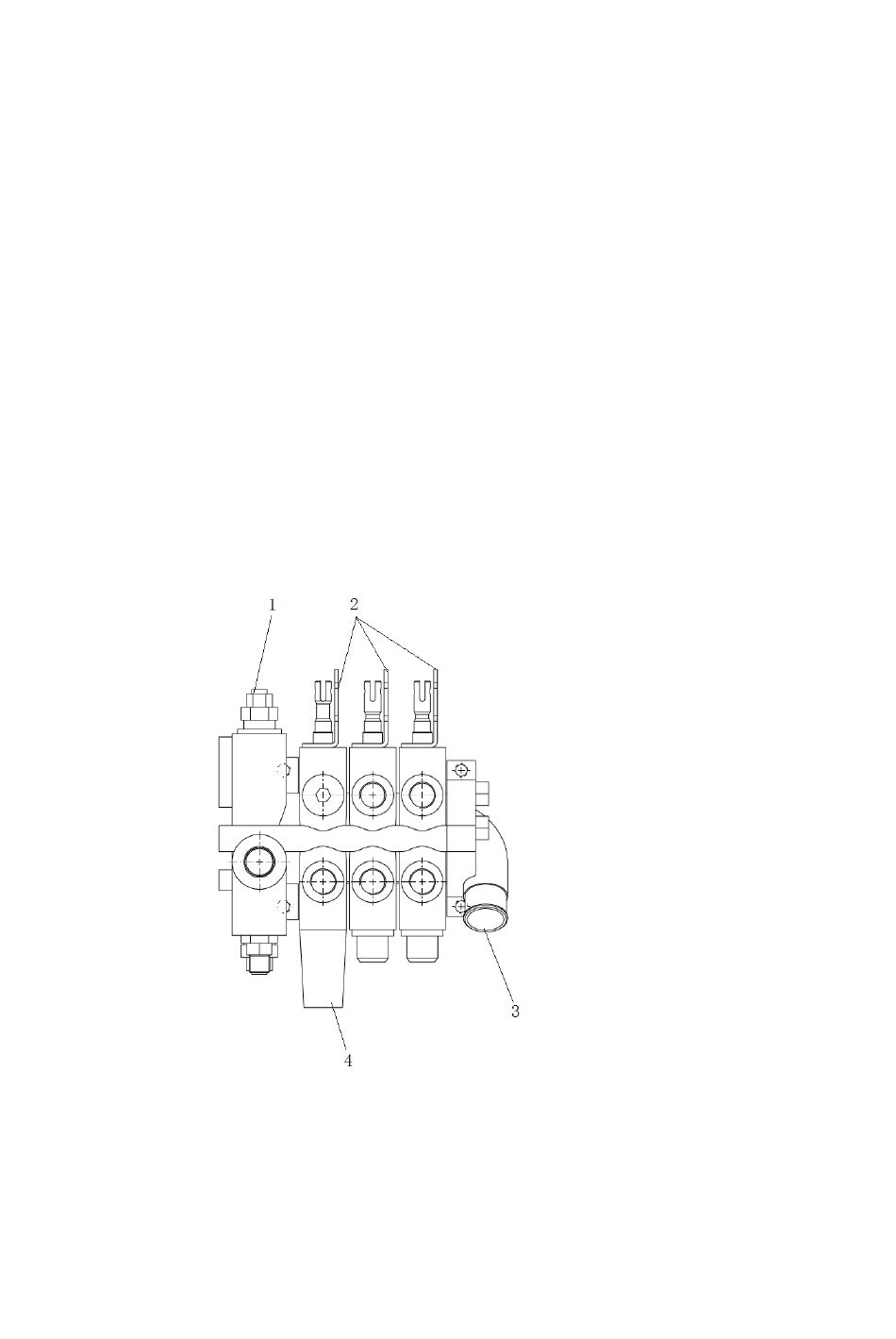

Multi-way valve outline drawing
1、Safety valve
Lifting speed sensor
2、Micro switch bracket
24
3、Return port 4、
