26.Bearing
Spring washer
5.2Steering system
5.2.1Overview
Steering system is composed of steering wheel .Steering shaft ,Steering gear,
Steering pump0 and steering axle .The steering shaft is connected to the steering
gear through the universal joint, And the connecting shaft is connected to the
steering wheel through the universal joint ,The steering Column can be tilted
back and forth to an appropriate position. And the steering axle is mounted on
the tailstock at the rear of frame .And there is a steering on the left and the right
respectively .The steering cylinder is pushed by the steering cylinder piston rod
through the connecting rod to deflect the steering wheel to realize steering .
5.2.2Steering axle
Steering axle is a box-shaped cross-section welded structure composed of
steering axle body ,steering cylinder ,connecting rod,steering joint and steering
wheel.The steering trapezoid adopts a crank slider mechanism and the cylinder
27.Bearing cover
30. O-Ring
31.Pad

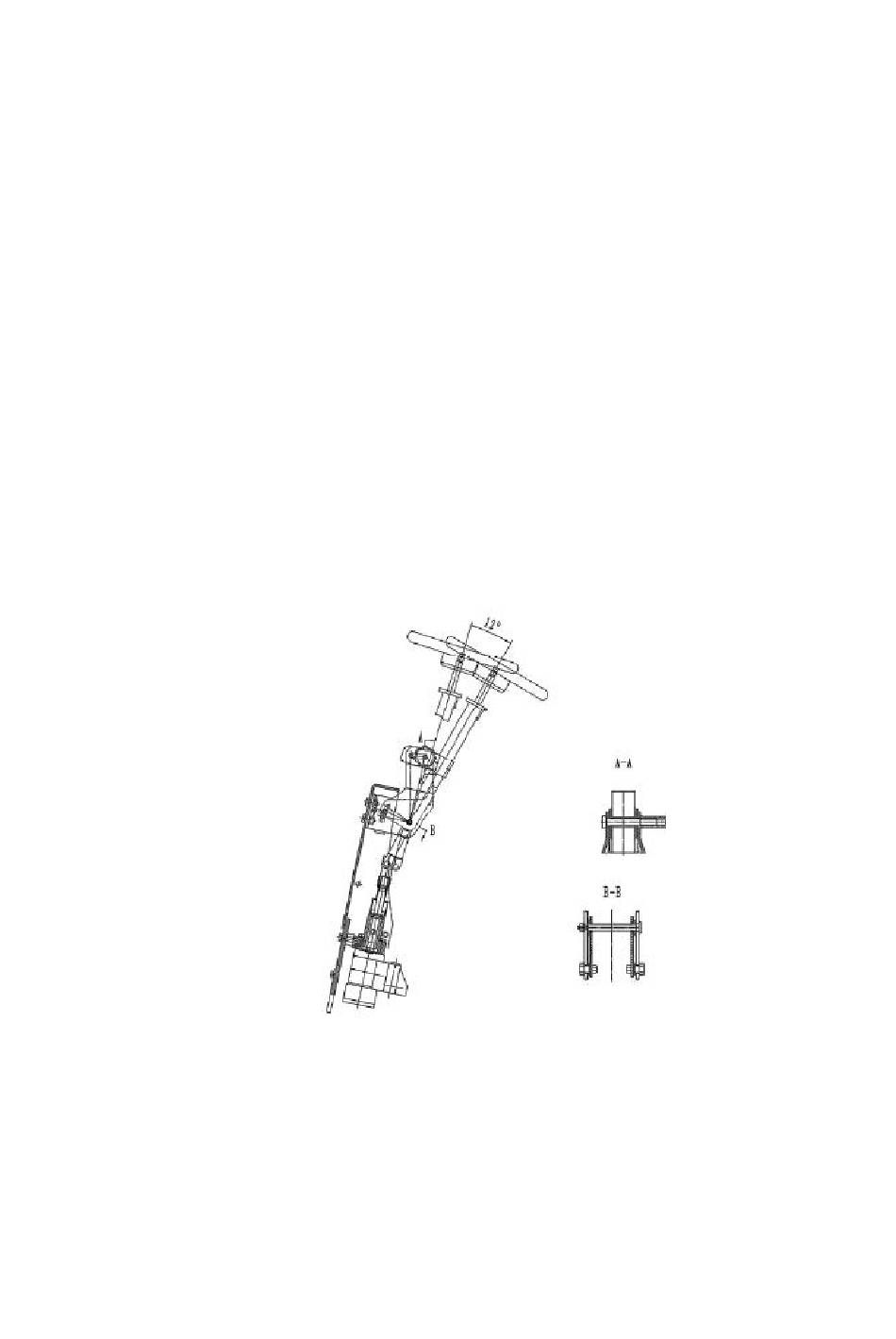

Steering device
28.Head bolt
9
29.
