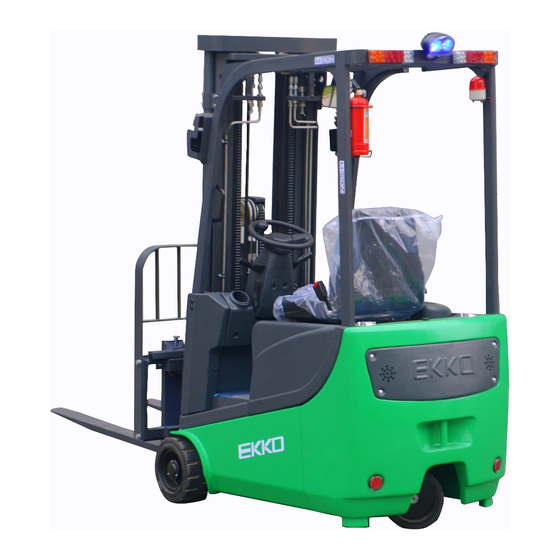

- Page 1 The Specification EK15A-189LI Series -3 Wheel Electric Forklift Note: Before using please read this manual and the various warning label! EKKO Material Handling Equipment Manufacturing, Inc.
-
Page 2: Table Of Contents
Contents I. Introduction ............................. 3 1.1 Summary ..........................3 1.2 Parameter ..........................3 II. Structure and working principle.................... 4 2.1 Basic structure........................5 2.2 Working principle ......................6 2.3 Electrical principle ......................8 2.4 Hydraulic principle ......................9 III、Safety operation and matters needing attention ............. 10 3.1 General rule ........................ -
Page 3: Introduction
I. Introduction 1.1 Summary This manual combines the whole EK15A-189LI 3300lb three-wheel counterbalanced electric forklift (hereinafter referred to as "forklift"). 1.2 Parameter EK15A-189LI... - Page 4 EK15A-189LI Model Power Load capacity Seat Operator type 3300 Load capacity (lbs) 23.6 Load center distance (in) Wheel base (in) Lifting height (in) 83.54 Lowered mast height (in) Mast/Fork carriage tilt (°) forward/backward 106.6 Overall length (in) 36.1 Overall width (in) Fork size, 1.4/4/45.2...
-
Page 5: Structure And Working Principle
II. Structure and working principle 2.1 Basic structure The power source for this forklift is lead acid industrial batteries. This Forklift uses electric and hydraulic system to control, driving, lifting and lowering, mast tilt forward and backward, steering and other movements. The basic structure shown in FIG. -
Page 6: Working Principle
. .Steering wheel 2. Combination Switch 3. Key Switch 4. .Lifting handle 5..Tilting handle 6. Side shift handle,7.Emergency stop switch 8.Accelerator 2.2 Working principle 2.2.1 Walking system The batteries provide energy to forklift for driving. With a frequency conversion system, it converts DC into AC, by controlling the AC motor drive on drive wheels. - Page 7 pins, the brake pads will move to the rotation direction of brake drum. The friction between brake drum and friction plate is then increased. Double brake pads are mounted on both sides of the drive axle. Brake consists of two groups of brake pads, brake cylinder and regulator. One end of the brake pad is in contact with the fixed pin, and the other end is in contact with the adjusting calipers.
-
Page 8: Electrical Principle
The main working part of the forklift is the forks. The forks recognize the loading, unloading, stacking and short-distance transportation for pallets or cargo. The forks are mounted on the carriage, by chain drive or inner mast moving up and down, the carriage and forks lifts the goods off the ground or to be stacked on racks. -
Page 9: Hydraulic Principle
The forklift is equipped with front headlights, rear lights, reversing warning horn and other safety and lighting devices. The switch groups 2.4 Hydraulic principle Pump motor driven gear pump provides hydraulic power; Two lifting cylinders are responsible for the forklift; a tilt cylinder is for the mast tilt movements. The oil-way for Lift-lower and tilt is controlled by two handles on the double valve, the lifting and lowering action is controlled by a single-acting oil-way on the passage double valve, while tilt motion is controlled by a double-acting oil-way... -
Page 10: Safety Operation And Matters Needing Attention
Hydraulic principle FIG. III、Safety operation and matters needing attention 3.1 General rule 3.1.1 The operator must have a forklift operation certificate or qualification which proved by the relevant departments of the training before driving a forklift. 3.1.2 The operator must read the instructions before use and understand the use and operations of this forklift. -
Page 11: Storage And Transportation
3.1.4 Operators should pay close attention to the environment, including other pedestrians and nearby structures. 3.1.5 Without the manufacturer's approval, no one shall modify, add or remove the any parts off the equipment. 3.2 Storage and transportation 3.2.1 Transporters should be qualified and pay attention of shipment: ○... -
Page 12: Operation Specification
attention to battery meter which whether a charge is required. Every day before use, or before charging, you should open the battery covers to check the water level, if it is ever lower than recommend, please add only distilled water into the battery’s cells. - Page 13 ○ 1 0 When not driving, always maintain the foot on the pedal of the brakes. Put the pallet fork in the lowest position, keep hands in the forklift, press the safety switch, pull out the key.(Note never leave without using the brake lever forklift).
- Page 14 Hydraulic control handles are for hydraulic diverse needs, there are two functions including with the following functions: (1) Forklift lever: a. fork to ascend (pull); b. fork to descend (push) (2) Tilt lever: a. back tilt (pull); b. forward (push) Each handle is used to operate a hydraulic circuit.
-
Page 15: Safe Operation Rules
To ensure the safety and reliability of the operation of this forklift, spare parts should be EKKO’s spare parts to ensure reliability. The old parts, such as oils and fuels must be handled in accordance with the relevant environmental protection rules. - Page 16 The vehicle was not specially designed for the high-risk environment. 3.5.8 Safety devices and warning signs: Safety devices, warning signs and warning notes described in the previous operating instructions must be taken seriously. 3.5.9 Driving in public places: the vehicle is forbidden to drive in public places other than specific areas.
-
Page 17: Maintenance And Service Manual
3.5.16 via the ramp: Only known ramp was allowed to go through. While the ramp should be clean, non-slip, and the vehicle technical specification includes the ramp. The goods on the forks must face uphill. It is forbidden to turn back, move diagonally or park on the ramp. -
Page 18: Routine Maintenance (Before Every Shift)
Wheels: Quality of the wheels has significant effect on stability and driving performance of the stacker. Modification on wheels can be performed only with the approval from the manufacturer. When replacing wheels, ensure that the stacker is levelled as delivery state(wheels must be replaced in pairs, i.e. replace right wheel together with left one). - Page 19 Maintenance periods listed in this manual apply to single shift a day under normal operation conditions. If using in dusty environment, the ambient temperature varies remarkably or in multi-shift situation, the maintenance period has to be shortened. Maintain the stacker according to following maintenance list. Maintenance periods are as follows: W1 = Every 50 work hours, but at least once a week.
- Page 20 Time interval of maintenance List of maintenance ● Standard: ＃ Cool storage: Chassis & Main ● Check all bearing parts for damages ● Check all bolt connections frame ● Check the drive system for noise and leakage Driver ● Check oil level in drive system ●...
-
Page 21: Maintenance, Recharging And Replacement Of The Accumulator
General Test ● Check the lifting and lowering speed ● Check the safety device and switch off devices ● Perform trial run under rated load Trial The stacker is proved to be safe and reliable to personnel after completion of ＃... - Page 22 5) Do not put conductive objects including metal tools on the accumulator, or short circuit or even explosion may be caused. 6) Never spill any hazardous liquid or solid material on surfaces of the accumulator. When using a densimeter or a thermometer, make sure the surface is clean and clear.
- Page 23 4.4.5 Specification of the accumulator Battery Charger Rated capacity： Input：AC115/230 Rated power： Output ： 350Ah(EK13A) DC24V50A 50Hz 400Ah(EK15A) Rated capacity： 350Ah Li-ion Input：AC115/230 Rated power： Output ： (EK15A-189) DC24V50A 50Hz Uninsulated terminal poles on the accumulator should be protected with an insulated cover.
- Page 24 —Connect the lifting device to lifting holes. —Lift out the accumulator from the top and move away with handling equipment. Perform installation in reverse order of above steps. It is noticeable to put the accumulator in right position and connect the cables securely. After reinstalling the accumulator, always check all cable connections and connectors for obvious damage.
- Page 25 If the indicator shows low battery when lifting loads for a not very long period, lifting function can only be performed after recharging the accumulator to at least 70% of capacity. 4.4.8 Recharging The EK15A-189LI is supplied with a special charger for recharging. A:Read the instruction manual carefully before recharging.
- Page 26 c、Recharge the accumulator to full capacity and stop recharging for half an hour, and then continue recharging with further-reduced current of 0.025I5A for an hour. d、 Stop recharging again for half an hour and continue recharging with a current of 0.025I5A for an hour.
-
Page 27: Service Manual
V、 Service Manual 5.1 Troubleshooting If above steps still cannot solve problems, please contact after-sales service department of the manufacturer and have the problems solved by specially trained technicians. -
Page 28: Preparation Before Repair
5.2 Preparation before repair To prevent possible accidents during maintenance and repair work, following preparations must be done: — Park the stacker safely. — Press the emergency stop switch and disconnect the connectors on accumulator. 5.3Check hydraulic oil level — Get the stacker ready for maintenance or repairing. —...
