piston rod pushes the steering joint through the connecting rod to deflect the
steering wheel .then realizing steering . The steering axle is fixed to the tailstock
at the rear of the frame by the front and rear pins through the fixing plate ,That is,
the vibration damping pad ,So that the axle body can swing around the pin
shaft .There is on joint on the left and right sides of the steering axle .and two
tapered rollers on the rear hub. The bearing is mounted on the joint shaft .The
wheel is fixed to the hub by the rim .And the inside bearing is provided with an
oil seal to keep grease in the hub .and the steering joint cavity

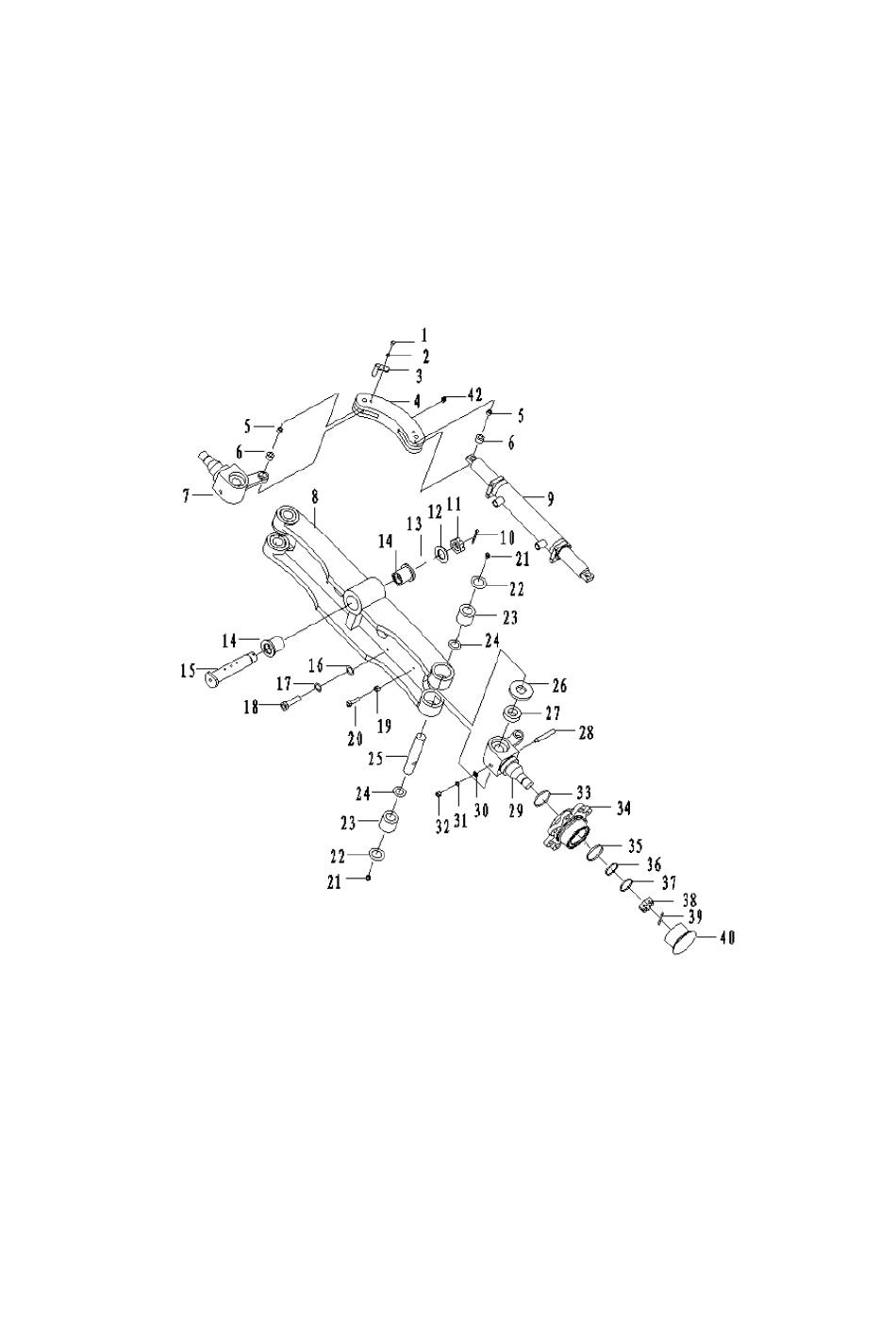

1.Bolt M16×12 2.Spring washer 6 3.tighten pin
4.Connecting rod
5.Joint bearing 6.Bushing 7.Left joint
8.Steering axle body
9.Steering cylinder 10.cotter 5×50 11.Groove nut
12.Flat whasher27
13.Adjust Washer 14.Bearing 15.Pin roll
16.Flat whashe12
