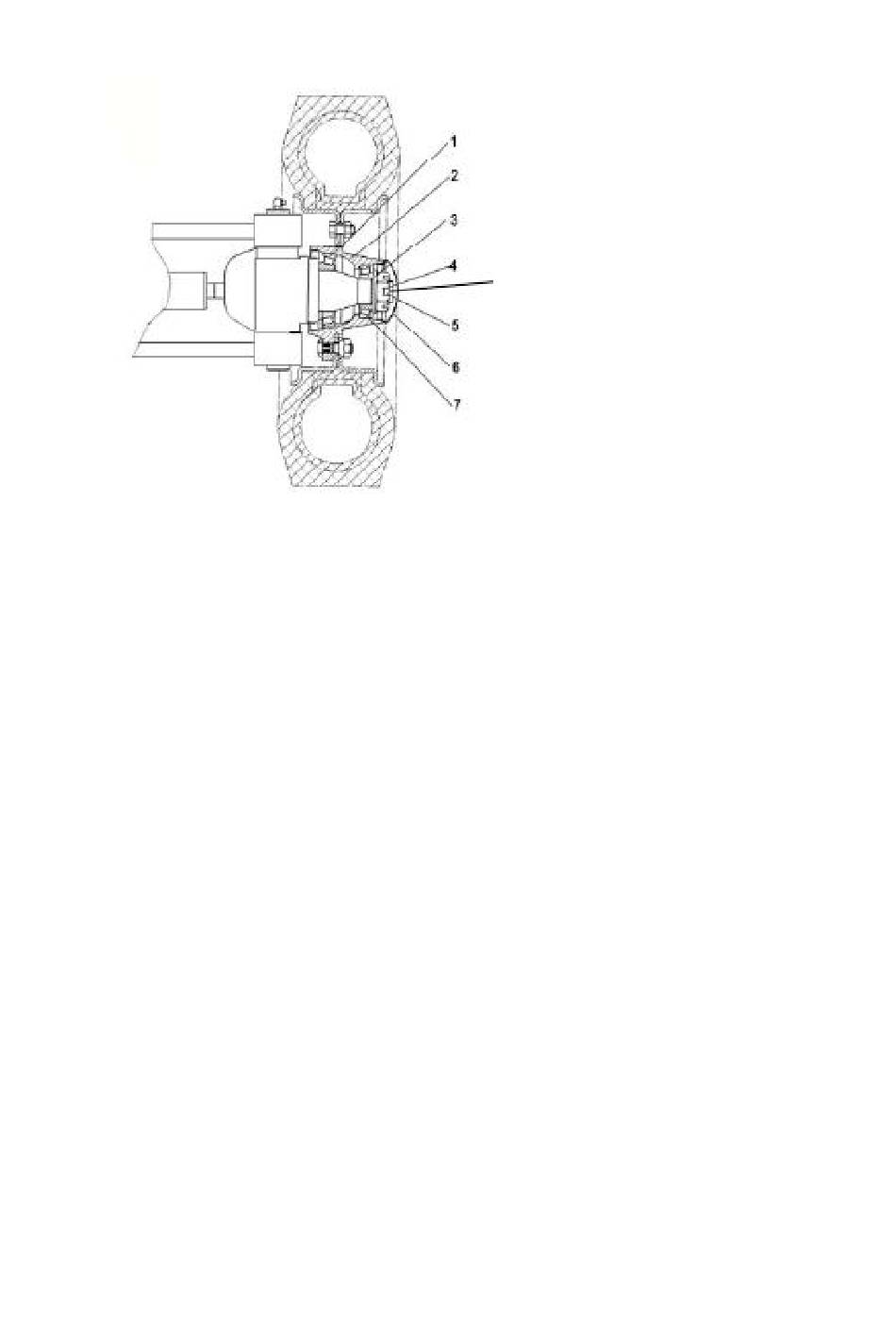

Preload adjustment
5.2.4 Check after reinstallation of steering system
(1) Turn the steering wheel from side to side and see whether the forces are
even, and the rotation is steady .
(2)Check weather the oil pressure pipe is arranged correctly, and weather
the left and right steering is installed in reverse .
(3) Lift the rear wheel .slowly turn the steering wheel left and right .and
repeat it several times to remove the air from the hydraulic lines and cylinders .
5.3 Braking system and schematic diagram.
5.3.1overview
The brake mode of the forklift consists of two type: service brake and
parking brake .
The service brake refers to the braking method used by the forklift during
the operation, Brake with foot brakes
When the brake cylinder pumps the brake drum to the same force as the
main brake shoe and the auxiliary brake shoe until the upper end of the brake
Inject grease
12
