EKKO EK20R Manual page 20

brake cylinder .So that the cylinder of the pump is properly placed to prevent oil
leakage and eliminate the possible air resistance during emergency braking .

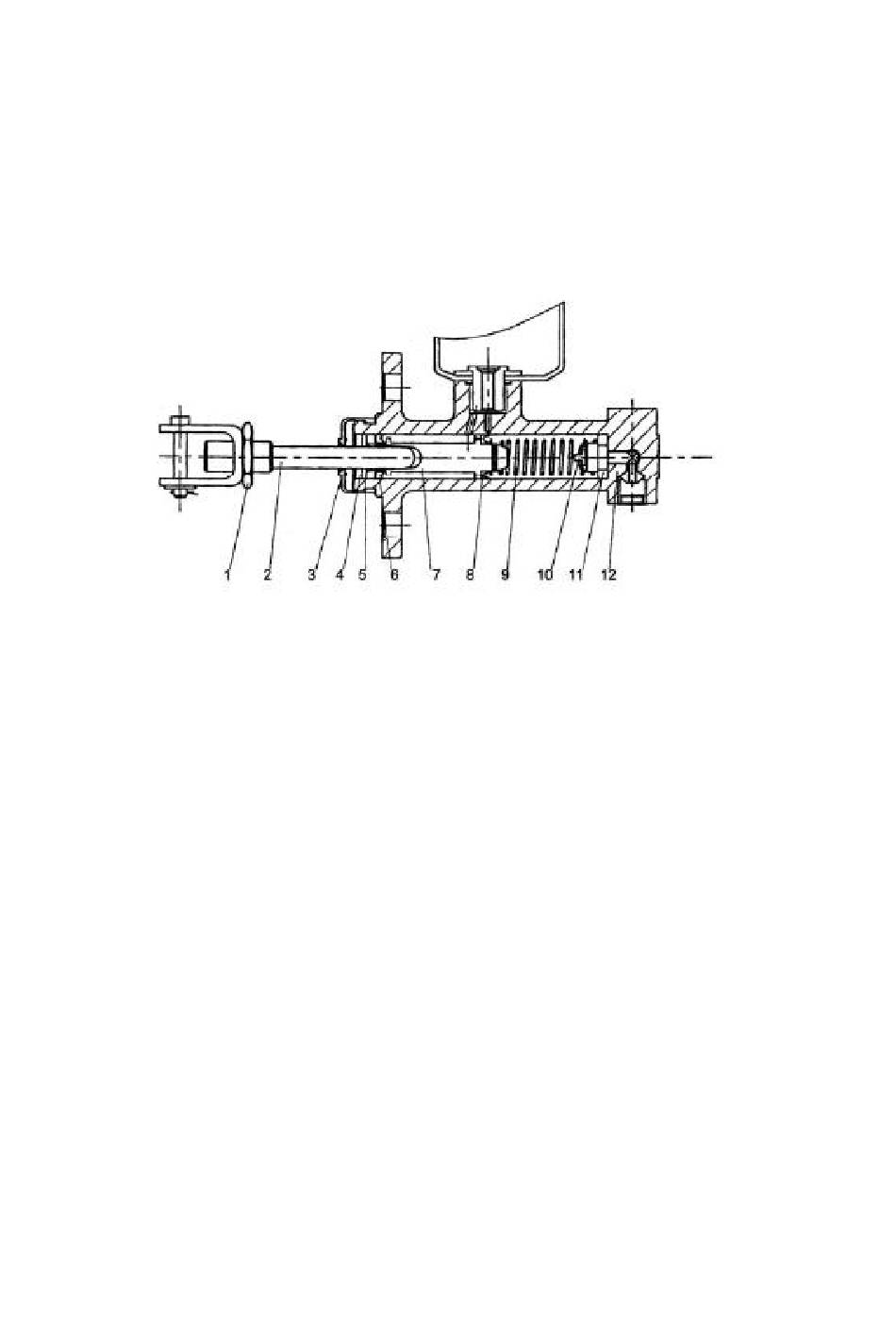

1. Lock nut 2. Push Rod 3. Dust cover 4.
Locking wire 5. Lock washer 6. Auxiliary cup 7.
piston 8. Master cup 9. Spring 10.
Check valve 11. Valve seat 12. Pump body
5.3.4Brake
The brakes are double-hoof brakes mounted on both sides of the transaxle.
The brake consists of 2 sets brake shoes, brake cylinder and regulator . One end
of the brake shoe is in contact with the fixing pin .and the other end is in contact
with the adjusting device .Press the brake stop by the return spring and the
compression spring lever .In addition .the brake is equipped with stop brake
mechanism and automatic adjustment device .
