EKKO EK20R Manual page 29

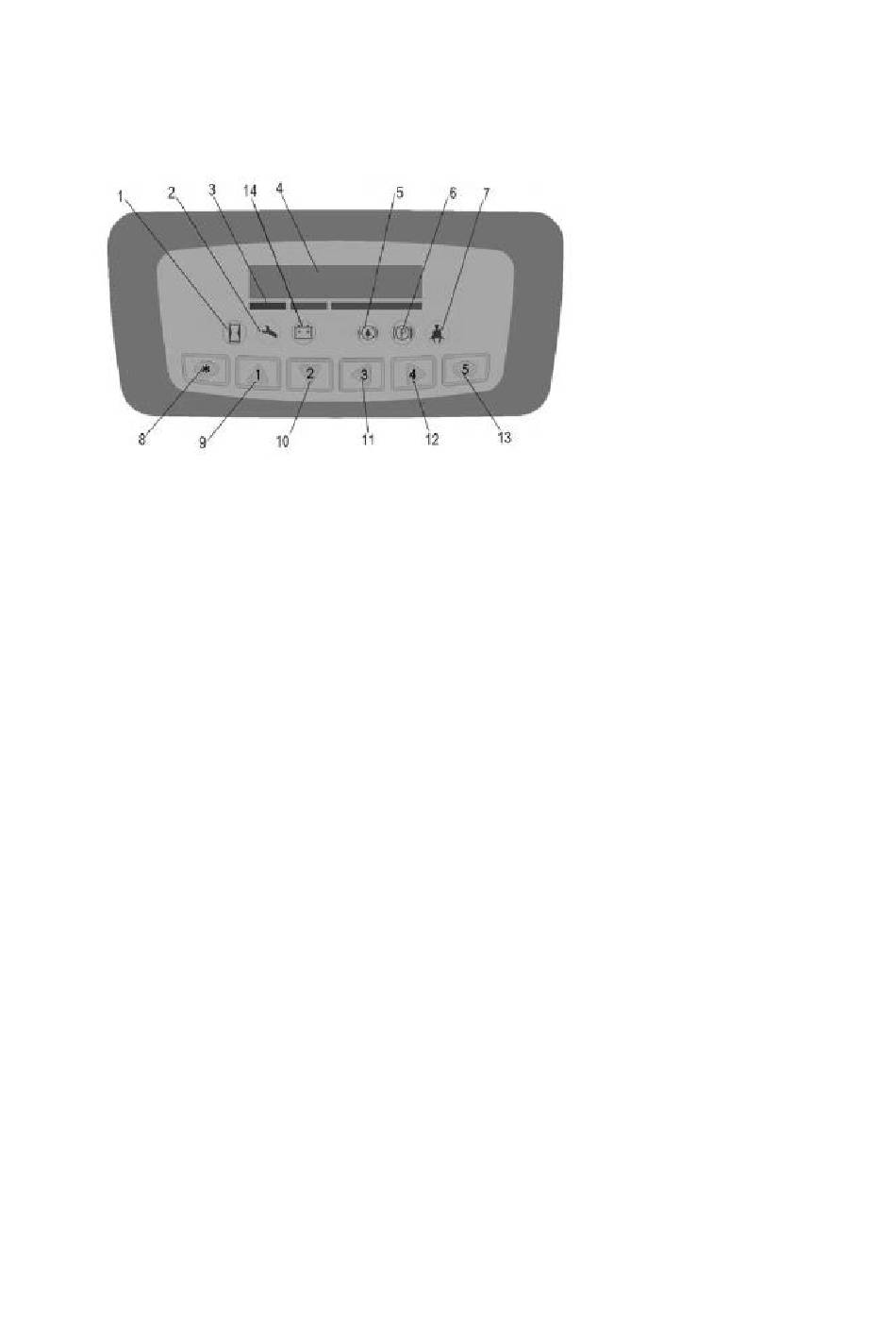

1.Waiting time lamp
4.Speed ,power ,time display
6.Hand brake light
9.Function selection key (UP)
(Down) 11.Parameter adjustment button (small)
adjustment button (large)
1）Battery
The battery indicator lights up—the measured battery level is less than or
equal to 10% of the normal battery charge.
2）Wrench
The fault indicator flashes—the Forklift is in an alarm state.
3）Temperature
The temperature indicator flashes—the forklift is in an alarm condition
due to high IMS temperatures
4）Seat
The seat light flashes - the operator has left the seat.
5）Handbrake
Handbrake light flashes - hand brake function is enabled .When the main
switch is closed, the Eco Smart display will be fully tested, and all LCD will be
closed in sequence.
2.Trouble alarm lamp
5.Temperature alarm lamp
7.Seat lamp 8.Instrument function key
13.Exit function key
23
3.battery mark
10Function selection key
12.Parameter
14Battery indicator
