Transmitter Supply Voltage Selection (P+, P-)

All DataView models come shipped from the factory configured to
provide 24 VDC power for the transmitter or sensor. If the installation's
transmitter requires 5 or 10 VDC excitation, the internal jumper J4 must
be configured accordingly.
To access the voltage selection jumper:
1. Remove all the wiring connectors.
2. Unscrew the back cover.
3. Slide out the back cover by about 1 inch.

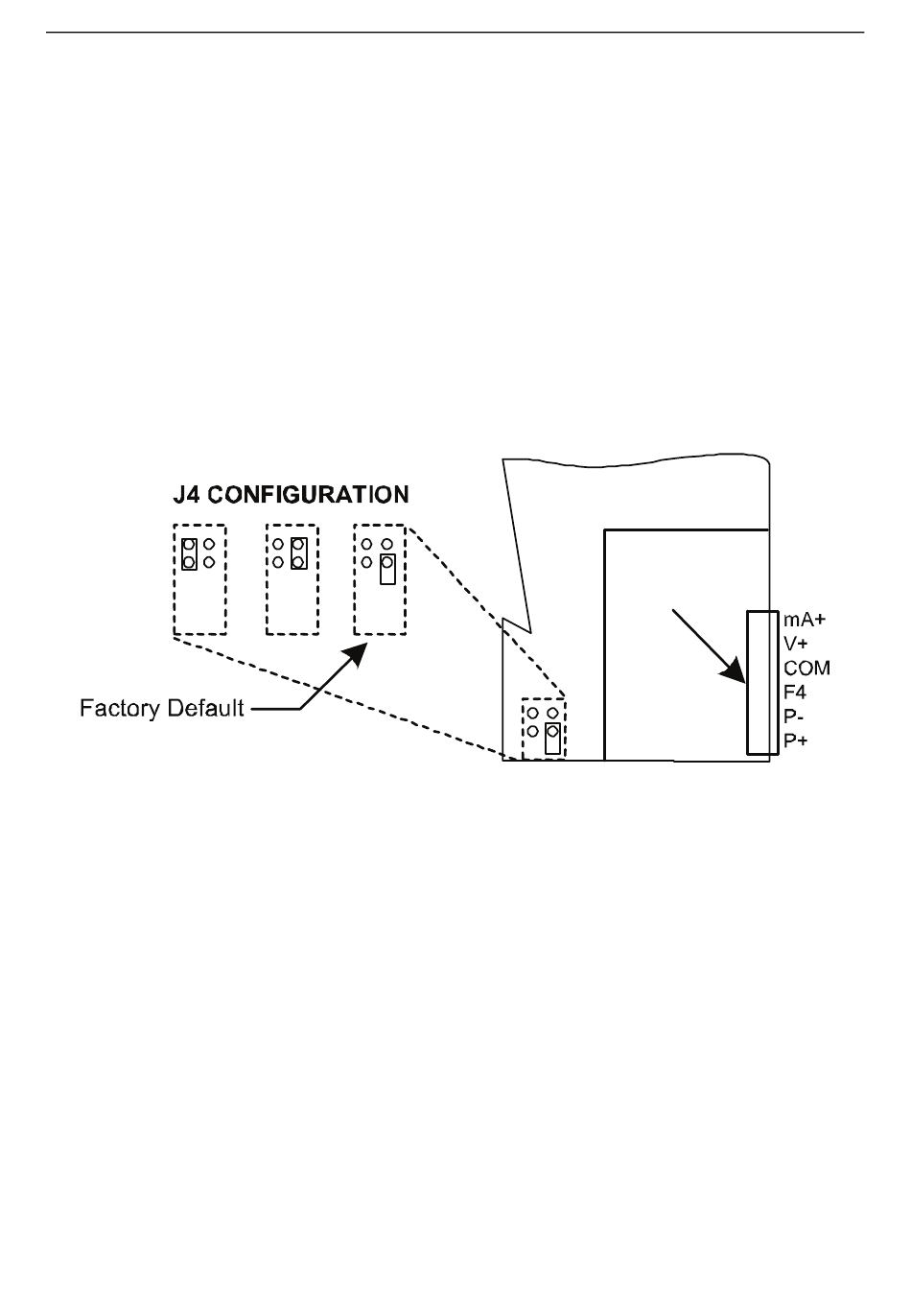

4. Configure the J4 jumper, located behind the input signal
connector, for the desired excitation voltage as shown.
(Do not change if using a Flowline 4-20 mA transmitter)
