DataView™ LI55 Level Controller
Setting the SCALE Function (

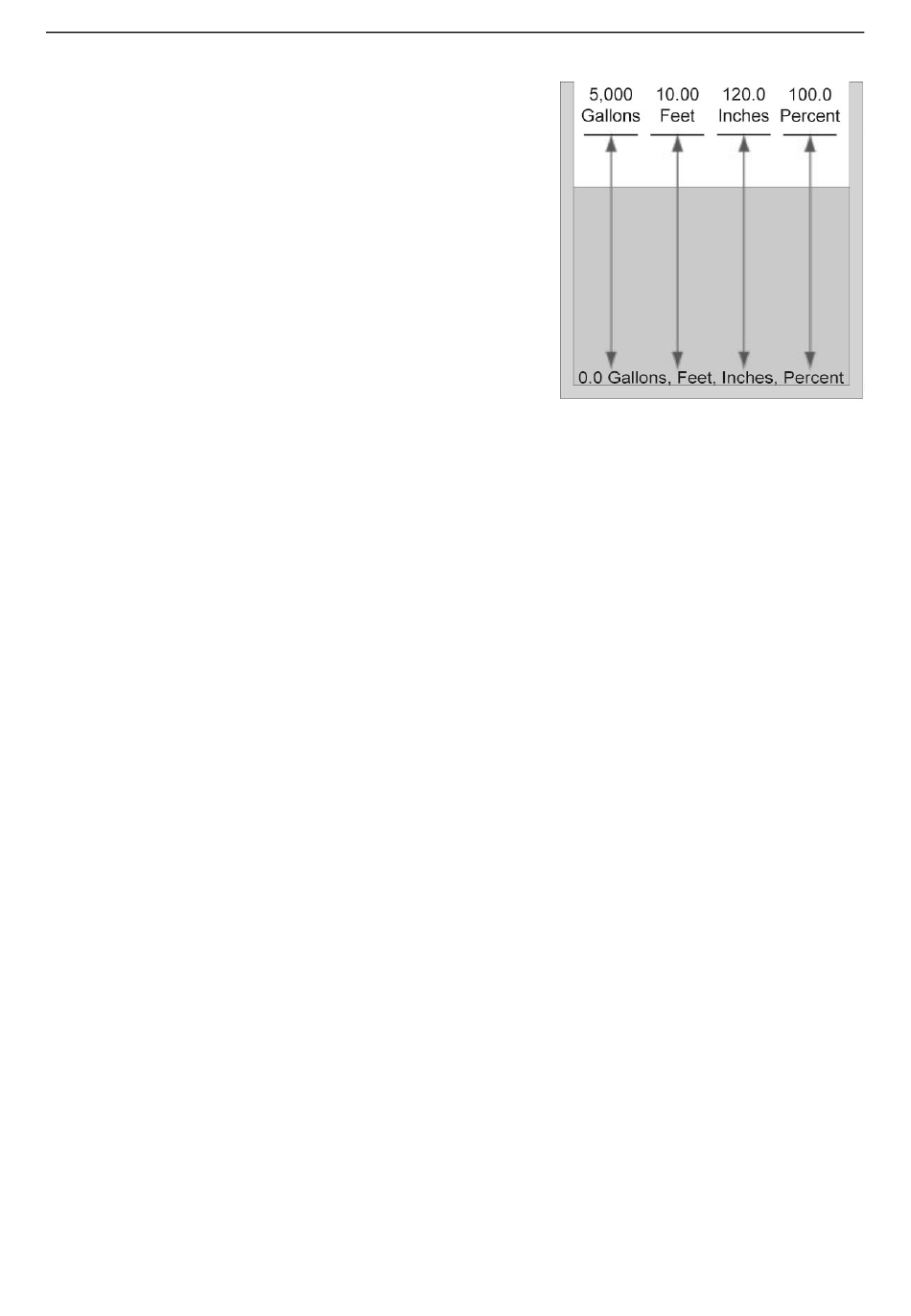

The DataView displays information about
tank contents in engineering units. The
display uses a two point linearization
based upon Empty and Full settings.
Although a signal source is not needed
to scale the meter, you will need to
configure the sensor connected to the
display to reflect a 4-20 mA current span
between tank empty and tank full.
Enter the value you wish an Empty tank to
show when empty and the value a Full
tank to show when full. These are the corresponding Empty (EmPtY)
and Full (FuLL) settings.
To set the SCALE fucntion:
1. Press the MENU button to enter the Main Menu. Units (unitS) will
be the first operation available.
2. Press the Up button to scroll through the menu options until you
reach Scale (SCALE).
3. Press ENTER button to enter the Scale.
a. Empty (EmPtY) will appear.
4. Press the ENTER button to change the Empty value. This is
typically the value seen when the tank is empty. Press the Right
button to move the highlighted digit to the right and the Up button to
increase the setting's value.
5. Press the ENTER button to save the settings.
a. Full (FuLL) will appear.
6. Press the ENTER button again to change Full value. This is
typically the value seen when the tank is full. Press the Right
button to move the highlighted digit to the right and the Up button to
increase the setting's value.
7. Press the ENTER button again to save the settings.
8. Press the MENU button to exit.
)
SCALE
