Setting the Units of Operation (
The LI55 series can show level (ex. InCHES, cm, FEEt, Meter, etc) or
Volume (GAL, LItErS, etc.) or any other engineering units. Please
determine the units of operation that you want to appear on the display.
The units chosen will not only represent the displayed values, but also
the settings for the relay(s) and the repeater output.
To set units:

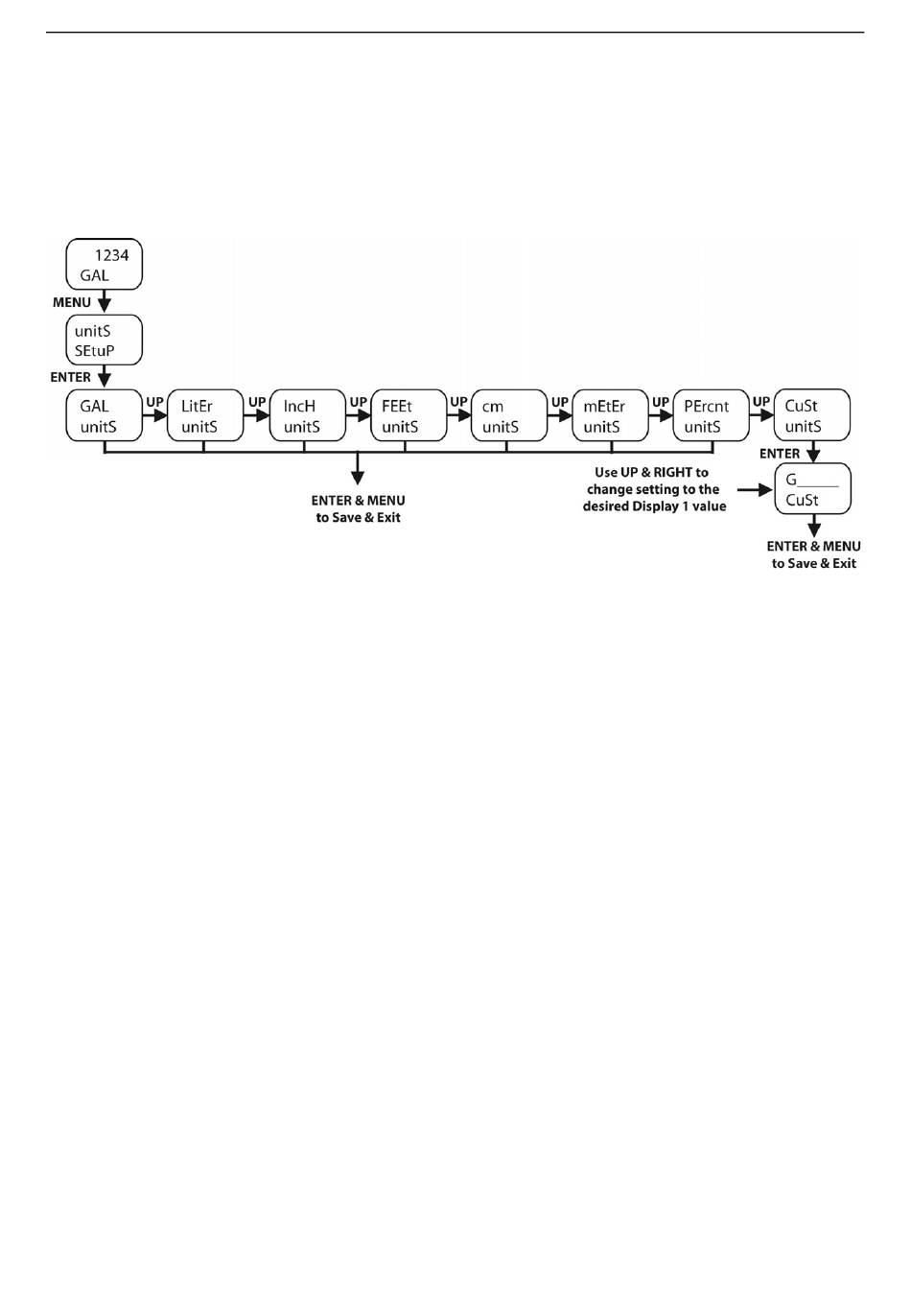

1. Press the MENU button to enter the Main Menu. Units (unitS) will
be the first operation available.
2. Press ENTER button to enter Units. The current setting will appear.
3. Press the Up button to scroll through the options for Units.
a. Choices include Gallons (GAL), Liters (LitEr), Inches
(IncH), Feet (FEEt), Centimeters (cm), Meters (MEtEr),
Percent (PErcnt) and Custom (CuSt).
4. When the correct unit of operation appears, press ENTER to save
this setting and then press MENU to exit.
a. For custom (CuSt), press ENTER to proceed to the next
screen.
b. Use the UP and RIGHT buttons to change each character
to the desired set of alphanumeric characters.
c. See A Note on Characters on page 15 to review the
options for the available alphanumeric characters.
d. There are 6 segments available for the Custom setting.
e. When completed, press ENTER to save this setting and
then press MENU to exit.
)
