For high level alarms, use the SET# to indicate the level setting
where the relay will turn on and the RST# to indicate the level
setting where the relay will turn off. Note: The RST# setting should
be a lower setting than the SET#.
Increasing the RST# setting from the SET# setting will
o
increase the hysteresis of the relay.

For low level alarms, use the SET# to indicate the level setting
where the relay will turn on and the RST# to indicate the level
setting where the relay will turn off. Note: The RST# setting should
be a higher setting than the SET#.
Increasing the RST# setting from the SET# setting will
o
increase the hysteresis of the relay.

For automatic fill or empty applications, use the SET# to indicate
the ON level and RST# to indicate the OFF level.

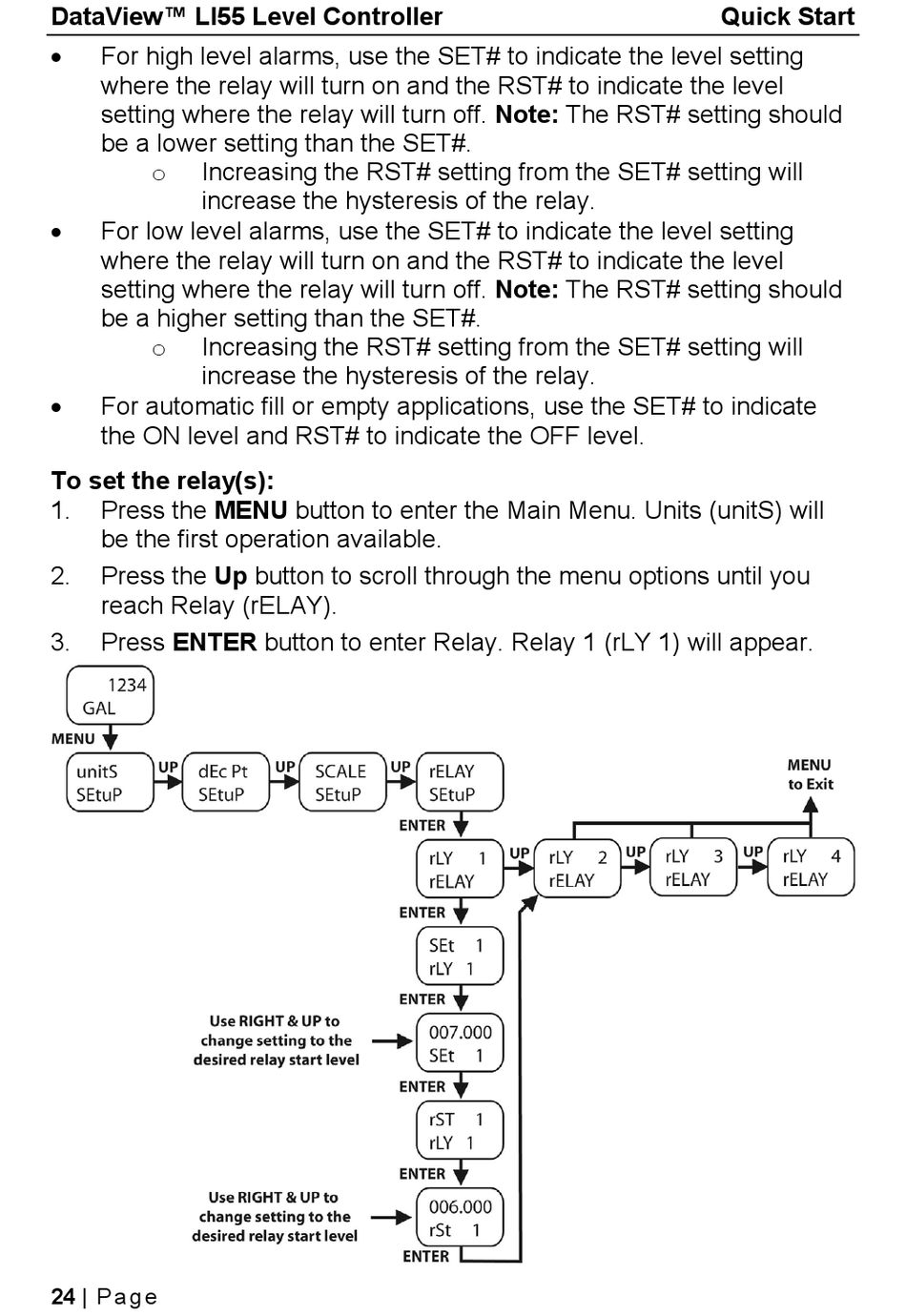

To set the relay(s):
1. Press the MENU button to enter the Main Menu. Units (unitS) will
be the first operation available.
2. Press the Up button to scroll through the menu options until you
reach Relay (rELAY).
3. Press ENTER button to enter Relay. Relay 1 (rLY 1) will appear.
