DataView™ LI55 Level Controller

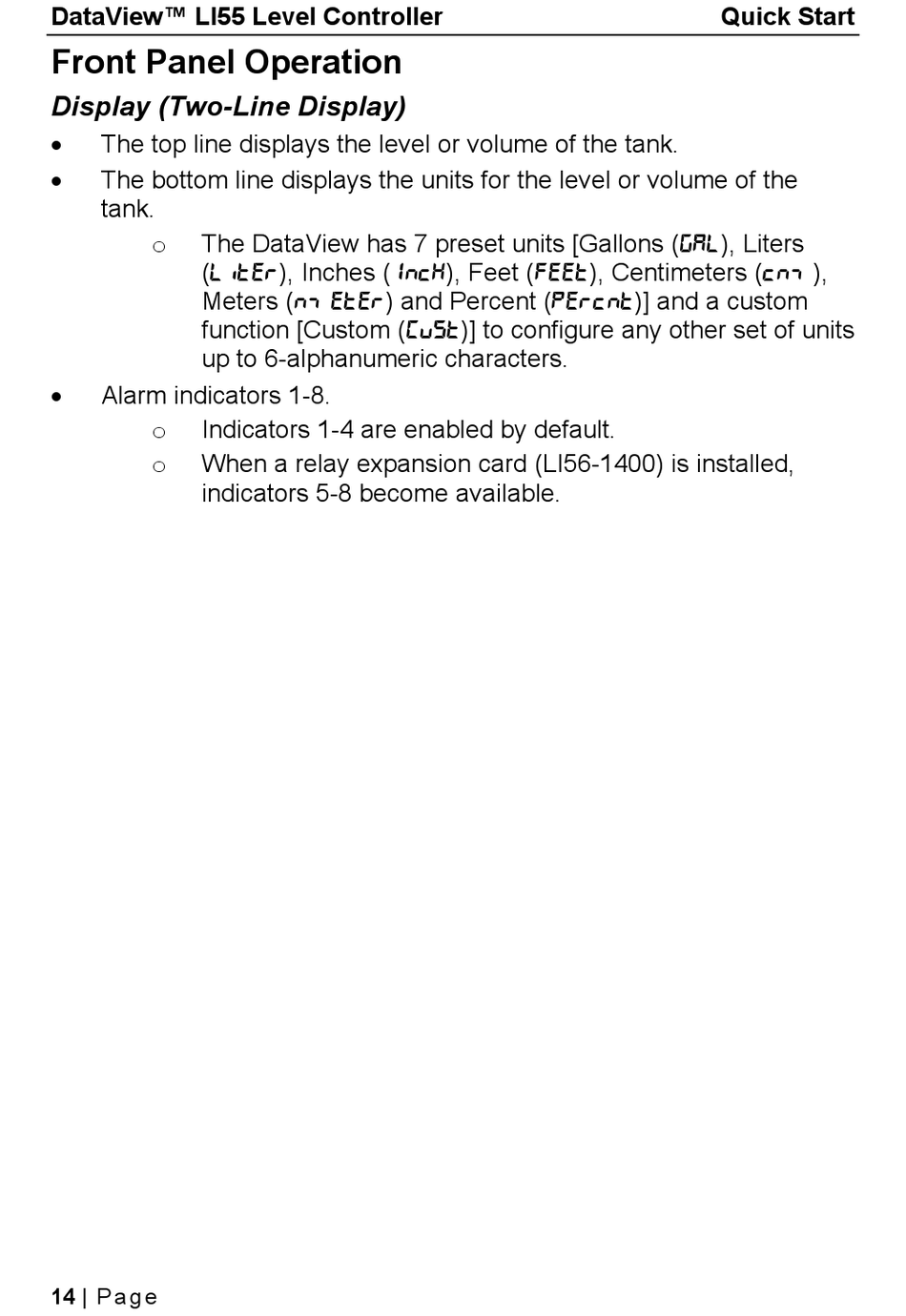

Front Panel Operation

Display (Two-Line Display)

The top line displays the level or volume of the tank.

The bottom line displays the units for the level or volume of the
tank.
The DataView has 7 preset units [Gallons (GAL), Liters
o
(LitEr), Inches (IncH), Feet (FEEt), Centimeters (cm),
Meters (mEtEr) and Percent (PErcnt)] and a custom
function [Custom (CuSt)] to configure any other set of units
up to 6-alphanumeric characters.

Alarm indicators 1-8.
Indicators 1-4 are enabled by default.
o
When a relay expansion card (LI56-1400) is installed,
o
indicators 5-8 become available.
