DataView™ LI55 Level Controller

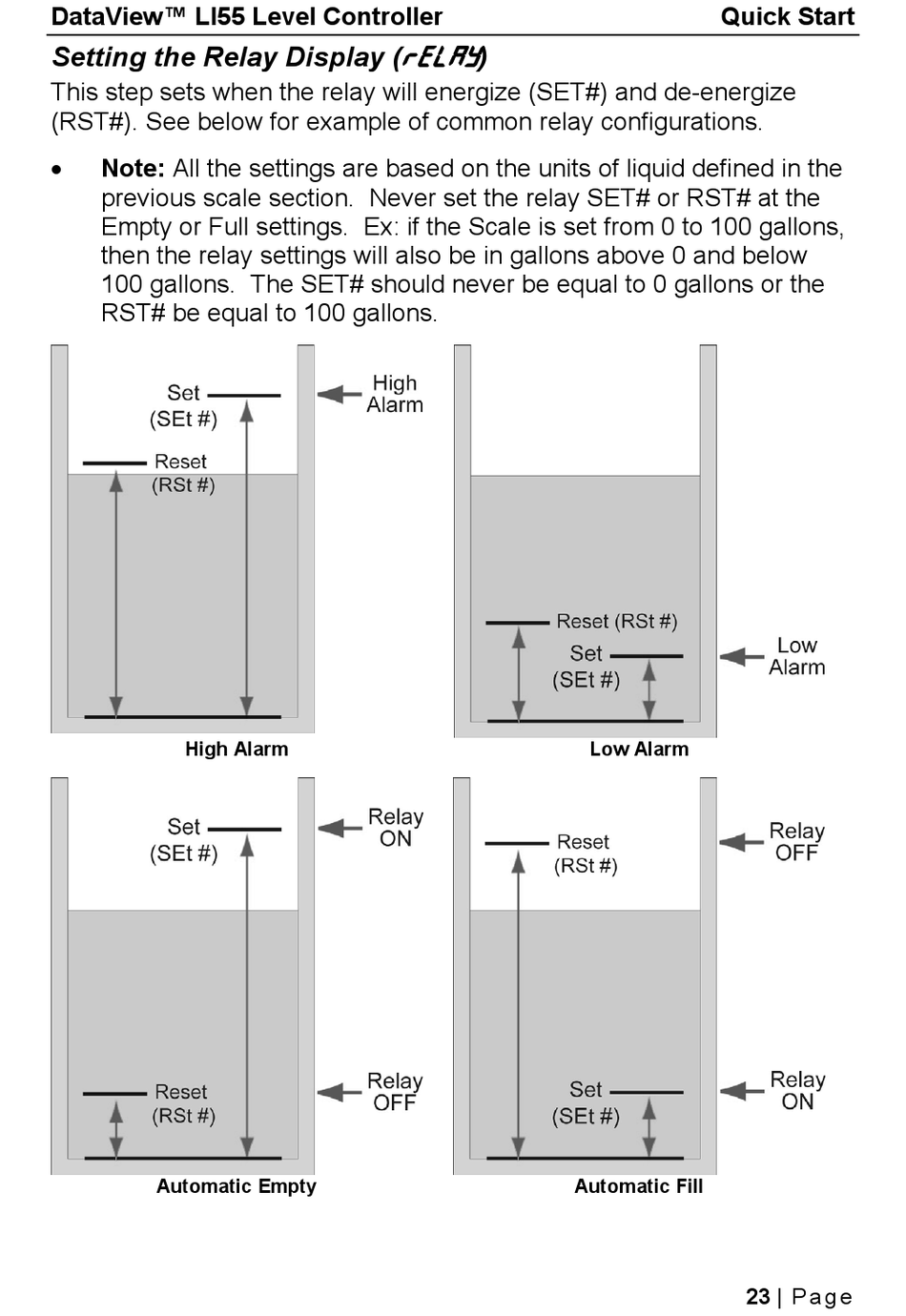

Setting the Relay Display (
This step sets when the relay will energize (SET#) and de-energize
(RST#). See below for example of common relay configurations.

Note: All the settings are based on the units of liquid defined in the
previous scale section. Never set the relay SET# or RST# at the
Empty or Full settings. Ex: if the Scale is set from 0 to 100 gallons,
then the relay settings will also be in gallons above 0 and below
100 gallons. The SET# should never be equal to 0 gallons or the
RST# be equal to 100 gallons.
High Alarm
Automatic Empty
)
Relay
Quick Start
Low Alarm
Automatic Fill
