DataView™ LI55 Level Controller

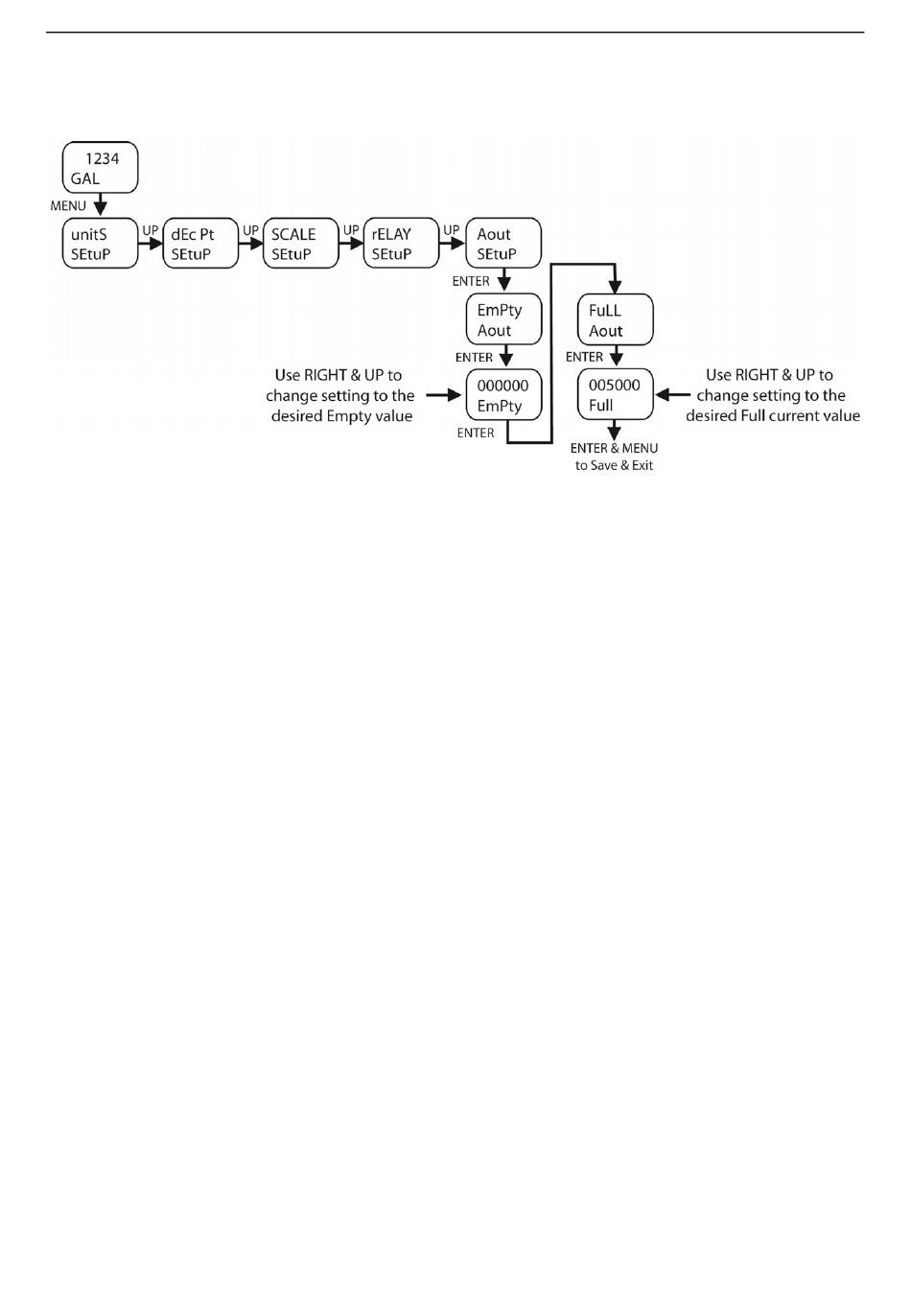

To set the Repeater / Analog Output:
Note: Before configuring the Analog Output, make sure the Scale has
been completed.
1. Press the MENU button to enter the Main Menu. Units (unitS) will
be the first operation available.
2. Press the Up button to scroll through the menu options until you
reach Analog Output (Aout).
3. Press ENTER button to enter Analog output. Empty (EmPtY) will
appear.
4. Press the ENTER button to change the Empty value.
a. Press the Right button to move the highlighted digit to the
right and the Up button to increase the setting's value.
5. Press ENTER button to save the settings.
a. Full (FuLL) will appear.
6. Press ENTER button to move the highlighted digit to the right and
the Up button to increase the setting's value.
7. Press ENTER button again to save the settings.
8. Press the MENU button to exit.
