Heat generated by the device is channeled outwards from the enclosure. As such, it
is recommended that 2.5 cm (1 in) of space be maintained on all open sides of the
device to allow for some convectional airflow.
Forced airflow is not required. However, any increase in airflow will result in a
reduction of ambient temperature and improve the long-term reliability of all
equipment mounted in the rack space.
Note
For detailed dimensions of the device with either rack, DIN rail or panel hardware
installed, refer to
2.3.1
Mounting the Device to a Rack
For rack mount installations, the RUGGEDCOM RS416P can be equipped with rack
mount adapters pre-installed at the front or rear of the chassis. Additional adapters
are provided to further secure the device in high-vibration or seismically active
locations.
To secure the device to a standard 48 cm (19 in) rack, do the following:
Note
The device can be ordered with the communication ports located at the front or rear
of the device. Placing the ports at the rear allows all data and power cabling to be
installed and connected at the rear of the rack.
1.
RUGGEDCOM RS416P
Installation Manual, 11/2022, C79000-G8976-1019-11
NOTICE
"Dimension Drawings" (Page
Make sure the rack mount adapters are installed on the correct side of the
chassis.
Note
The chassis features multiple mounting holes, allowing the rack mount adapters
to be installed up to 25 mm (1 in) from the face of the device.
1
3
Rear
1
Front
2
Rack Mount Adapter
3

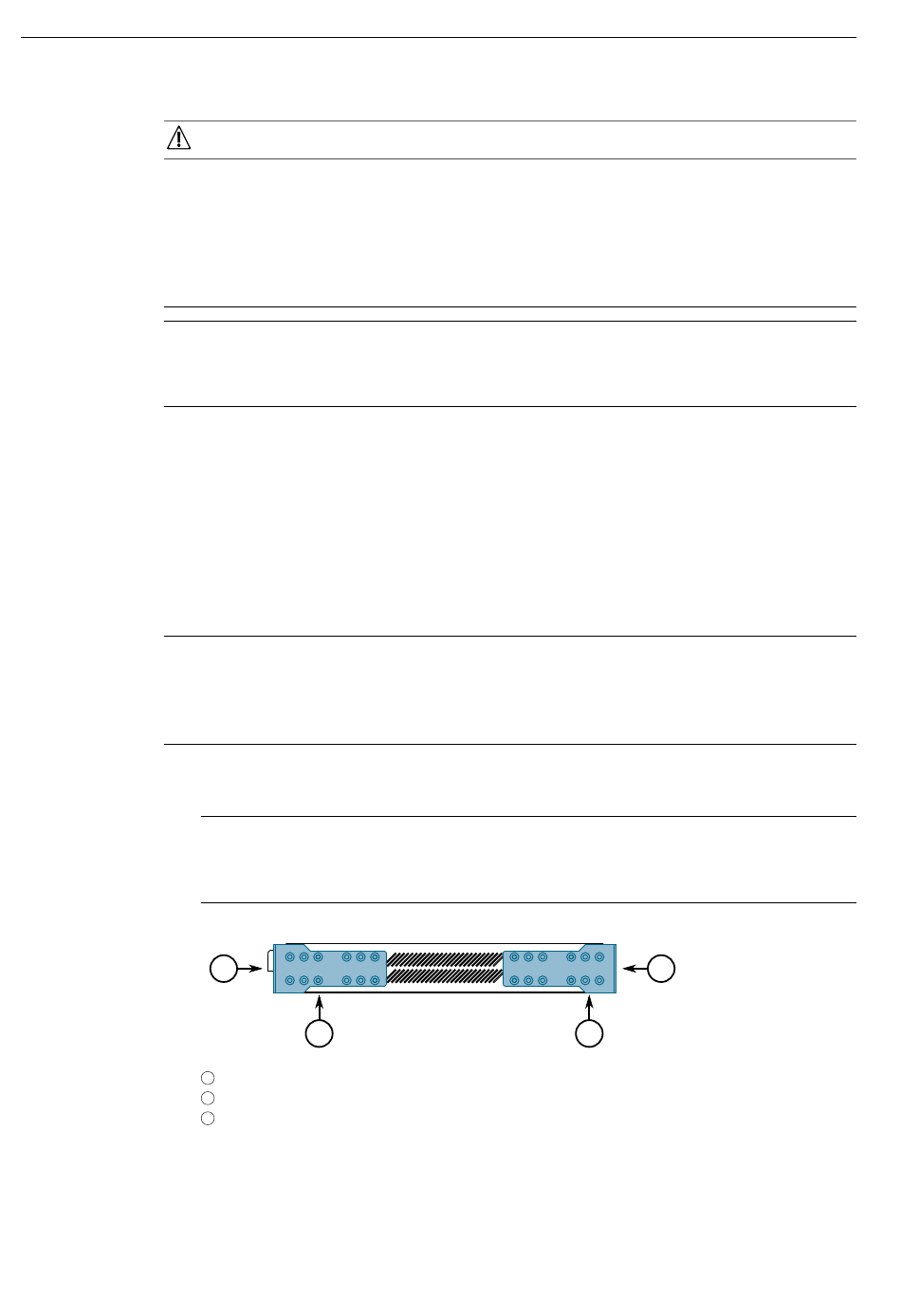

Figure 2.1
Rack Mount Adapters
2.3.1 Mounting the Device to a Rack
36).
2
3
Installing Device
11
