Example 1: Creating a set of video and audio ties

www.camboard.de
CAMBOARD Electronics
The following steps show an example in which input 5 is tied to outputs 3, 4, and 8.
The steps show the front panel indications that result from your actions.
This example assumes that there are no ties in the current configuration.

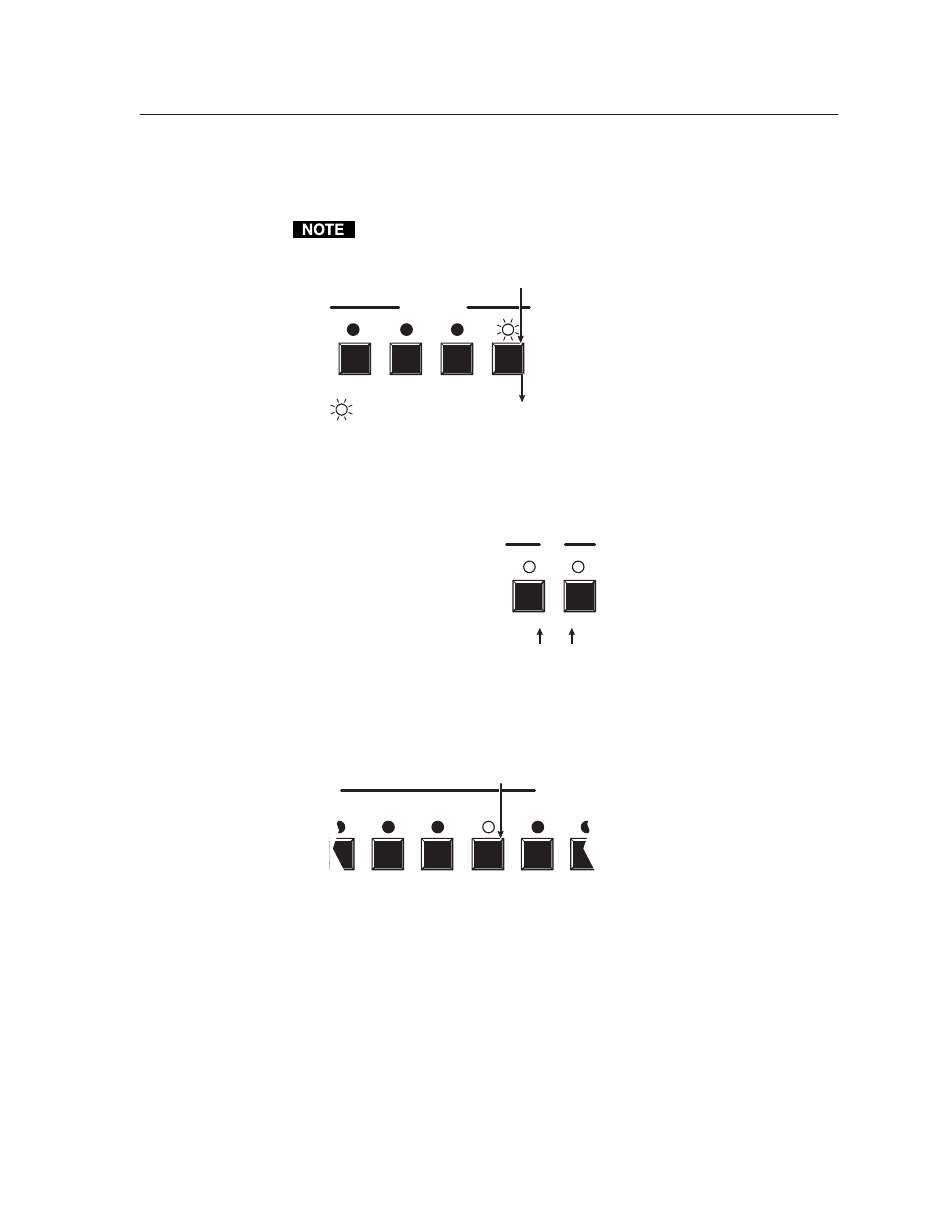

1. Press and release the Esc button (figure 3-4).
Press the Esc button to clear all selections.
CONTROL
ENTER PRESET VIEW
= Blink once
The LED blinks once.
1
Figure 3-4 — Clear all selections
2. To select video and audio for the tie, if necessary, press and release the
RGBHV button and the Audio button until the LEDs light (figure 3-5).
Press the RGBHV button to toggle on and off.
The LED lights when selected.
Figure 3-5 — Select RGBHV and audio
3. Press and release the input 5 button (figure 3-6).
Press and release the Input 5 button.
2 3 4
The LED lights.
Figure 3-6 — Select an input
Tel. 07131 911201
CrossPoint 300 Matrix Switchers • Operation
Fax 07131 911203
1
ESC
I/O
RGBHV AUDIO
Press the Audio button to toggle on and off.
The LED lights when selected.
INPUTS
5 6 7
ce-info@camboard.de
3-9
