Phantom HTI-150
ORDERCODE 40163

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40163 and is the answer not in the manual?

Questions and answers

Summary of Contents for SHOWTEC 40163

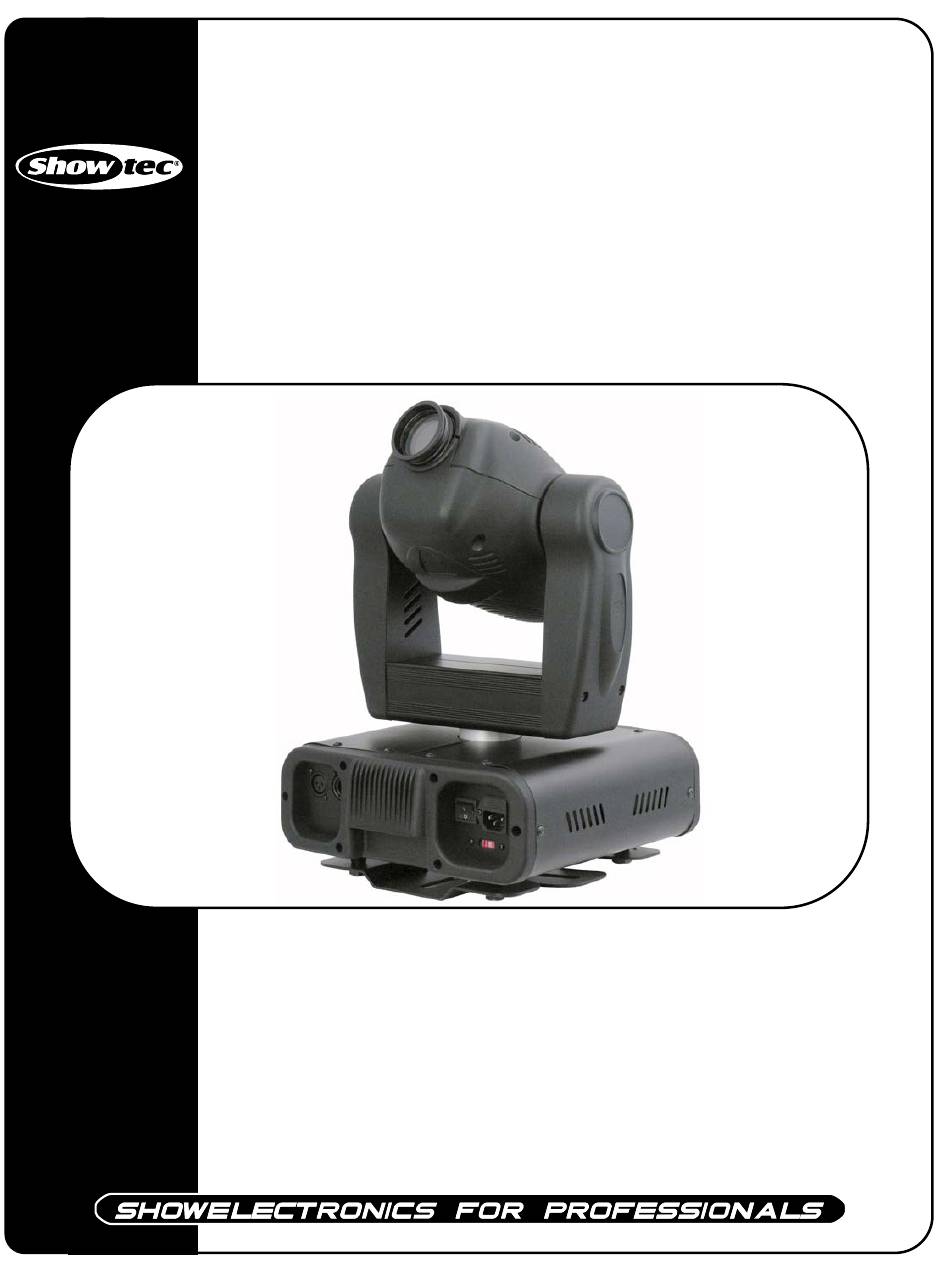

  • Page 1 Phantom HTI-150 ORDERCODE 40163...
  • Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Phantom brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
  • Page 3: Table Of Contents

    Showtec Showtec Phantom Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Installation................…...…………………………………….….. Installing the Lamp ............………………………………………..………… Lamp Adjustment.…............………………………………………..………… Set Up and Operation..............……..……………………………….… One Phantom ................…………………………………………… Multiple Phantoms................…………………………………….. DMX-Protocol…...........……………………………………………………………. Mode 1-8 bit protocol........……………………………………………………………. Mode 2-16 bit protocol........…………………………………………………………...
  • Page 4: Warning

    WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations.
  • Page 5: Operating Determinations

    The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service.
  • Page 6: Rigging

    Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the projector is lowered from the ceiling or high joists, professional trussing systems have to be •...
  • Page 7: Connection With The Mains

    Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. Cable International BROWN FASE BLUE YELLOW/GREEN EARTH Make sure that the device is always connected properly to the earth!
  • Page 8: Description

    Description of the device Features The Showtec Phantom is a moving head with high output and great effects. • 1 Color-wheel with 9 colored gobos, and open • 1 Gobo-wheel with 5 metal and 2 glass interchangeable rotating gobos plus open •...
  • Page 9: Backside

    Backside Fig. 2 DMX signal connector (OUT) DMX signal connector (IN) ON / OFF IEC power connector + Fuse...
  • Page 10: Installation

    Installation Installing the Lamp The Showtec Phantom uses the HTI 150 (ordercode 80922) reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information.
  • Page 11: Lamp Adjustment

    Backside Lamp Board Fig. 4 Lamp Adjustment You can adjust the lamp’s position by turning the screws A, B, C. The lamp position is set in the factory. As the lamps, which can be used, differ from manufacturer to manufacturer, it can be necessary to readjust the position. The lamp must be readjusted e.g., if the light does not seem to be evenly distributed within the ray of light.
  • Page 12: Set Up And Operation

    Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. One Phantom 1.
  • Page 13: Dmx-Protocol

    DMX Protocol This DMX is set as default (F1-n). With 8 bit control you’ve got 7 channels. Mode 1- 8 bit protocol Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540°and stopped at any position you wish.
  • Page 14 Channel 5 – Colours Linear color change following the movement of the slider. In this way you can stop the color-wheel in any position – also between two colors creating double-colored beams. Between 191 - 220 and between 225 - 255, the color-wheel rotates continuously the so-called “Rainbow”...
  • Page 15: Mode 2-16 Bit Protocol

    Mode 2–16 bit protocol Set F1-y for 16-bit control. With 16 bit control you’ve got 9 channels. Mode 1- 16 bit protocol Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540°and stopped at any position you wish.
  • Page 16 Channel 7 – Rotating Gobos 0-15 Open 16-31 Gobo 1 (glass) 32-47 Gobo 2 48-63 Gobo 3 64-79 Gobo 4 80-95 Gobo 5 (glass) 96-111 Gobo 6 112-127 Gobo 7 128-132 Open 133-144 Shaking gobo 1, with variable speed 145-156 Shaking gobo 2, with variable speed 157-168 Shaking gobo 3, with variable speed...
  • Page 17: Control Panel

    Control Panel When the indicator light is on, means the Phantom is working Fig. 6 A. LED D. [CHOOSE] Button B. Display E. Up Button C. [ENTER] Button F. Down Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller.
  • Page 18: Colour-Wheel

    Remotely controllable functions Colour-wheel The Phantom contains a colour-wheel with 9 colours and one white. The colour-wheel can be positioned between two adjacent colours in any position. It is also possible to rotate the colour-wheel continuously at different speeds ( “Rainbow effect” in both directions). Rotating gobo-wheel This rotating gobo-wheel has 5 metal gobos, 2 glass gobos and open.
  • Page 19: Stand-Alone Mode

    Stand-alone Mode The fixtures on a data-link are not connected to the controller, but can execute pre-set programs, which can be different for every fixture. To set the program to be played, see the “Stand-alone setting“ ( menu Stand-alone operation” can be applied to a single fixture (the fixture may be set to the master/slave mode or controller mode) or to multiple fixture operating synchronously.
  • Page 20: Slave Mode

    control function , all the slave fixtures will work the same. In master/slave mode, the built-in program ID prior to the remote control function. When operation, you can identify the master fixture from the slave fixture easily. The master doesn’t connect any cable to the DMX input plug.
  • Page 21: Channel Settings

    Channels settings There are 4 fixture DMX configurations in both fixtures. These settings are user selectable by using the control panel interface. 1. Default Setting = Tilt Shutter/Dimmer Gobo Color Gobo Rotation 2. Setting = Tilt Pan Fine Tilt Fine Pan/Tilt Speed Shutter/Dimmer Gobo...
  • Page 22: Maintenance

    3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Phantom requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced.
  • Page 23: Replacing A Gobo

    Replacing a Gobo Gobo-wheel with rotating gobo’s 1. Disconnect mains power supply and set the switch to OFF. 2. Make sure that the gobo you want to insert has the same size. 3. Turn the gobo wheel, with the gobo you want to remove, to the upside. 4.
  • Page 24 Problem Probable cause(s) Remedy No power to the fixture ·Check that power is switched on and One or more cables are plugged in. fixtures are Primary fuse blown. ·Replace fuse. completely dead. Fixtures reset The controller is not connected. ·Connect controller. correctly, but all 3-pin XLR Out of the controller ·Install a phase reversing cable...
  • Page 25: Product Specifications

    Product Specification Model: Showtec Phantom Voltage: 240V-50Hz (CE) Fuse: 3,5A / 250V Dimensions: 320x305x430mm (LxWxH) Weight: 12,52 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) Set Up and Addressing: LED control panel...
  • Page 26 2005 Showtec.
