Summary of Contents for SHOWTEC Shogun DJ RG-100
- Page 1 Shogun DJ RG-100 ORDERCODE 32010...

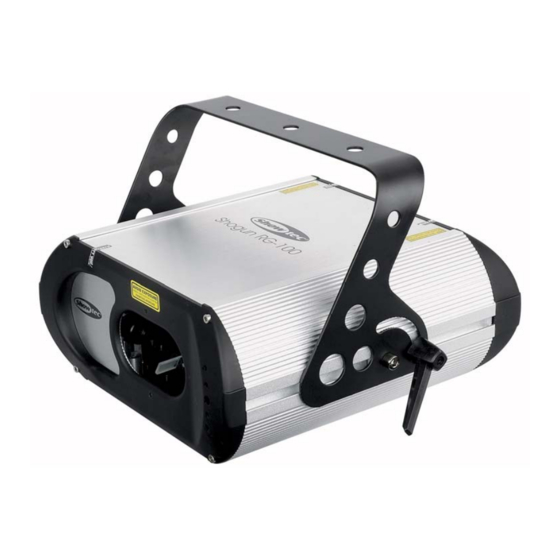

- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Shogun DJ RG-100 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Shogun DJ RG-100 Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Set Up and Operation..............……..……………………………….… One Shogun RG-100 Stand-alone mode.........……………..……………………………. One Shogun RG-100 Sound-Active.………..…....…………………………………………. One Shogun RG-100 Auto Mode.…………...…......…………………………………………. Multiple Shoguns RG-100 Master-Slave...…..………………………………………..………... -
Page 4: Warning
WARNING CAUTION ! EYEDAMAGES !!! NEVER LOOK DIRECTLY INTO THE LIGHTSOURCE !!! NEVER PROJECT A SINGLE LASER POINT !!! CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to:... - Page 5 The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Product Classification and Manufacturing Label Identification Laser Classification: Class IIIB Laser medium: wavelength 532 nm / Green wavelength 650 nm / Red Output: 100mW (60mW Red/ 40mW Green) Cooling: TE Cooling CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or binoculars within a distance of 100mm may pose an eye hazard. -
Page 7: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the laser is lowered from the ceiling or high joists, professional trussing systems have to be used. •... -
Page 8: Description
Description of the device Features The Showtec Shogun DJ RG-100 is a laser effect with a high output and great effects. • 60 mW red laser (650nm) • 40 mW green laser (532nm) • DMX-control via standard DMX-controller • 100 pre-programmed effects •... -
Page 9: Backside
Backside Fig. 3 6) Dip Switches 10) Power ON/OFF Remote Interlock Connector DMX signal connector (OUT) 8) Sound Sensitivity control 12) IEC Power Connector / Fuse 2A / 250V 9) Key System DMX signal connector (IN) Remote Interlock Connector: Use a DB9 connector to connect to the Remote Interlock, which stops the beam being emitted once the connection loop has been opened. -
Page 10: One Shogun Rg-100 Stand-Alone Mode
One Shogun DJ RG-100 (Stand-alone) There are 4 possibilities: Stand Alone Sound-active mode (Master) Auto Mode (Master) 1. Fasten the Shogun onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. Plug the cord into a proper electric power supply socket. - Page 11 (DMX Control) 1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp bolted onto the Showtec Shogun bracket). Leave at least 0,5 meter on all sides for air circulation. 2. Use a 3-p XLR cable to connect the Shoguns and other devices.
-
Page 12: Dmx Dipswitch Setting
DMX products must have their own "address" to receive DMX signals. Addresses on the Showtec Shogun DJ RG-100 are set by flipping the appropriate DMX dip switches. A standard DMX address for a Showtec Shogun DJ RG-100, which has 8 channels is as follow: Shogun DJ RG-100 Address Value DMX Dip Switches "ON"... -
Page 13: Dmx Quick Reference Chart
DMX Address Quick Reference Chart Dip Switch Position DMX DIP SWITCH SET 0=OFF 1=ON Dip Switch Position DMX Address... -
Page 14: Dmx Channels
DMX Channels Channel 1 –Mode 0-10 Laser Off 11-120 Dynamic Patterns 121-250 Static Patterns 251-255 Reset Channel 2 –Pattern Selection 0-255 Num n Static / Dynamic Channel 3 –X-Position 0-255 Adjust X-Position Channel 4 –Y-Position 0-255 Adjust Y-Position Channel 5 –Scanning Speed 0-255 From Fast (0) to Slow (255) Channel 6 –Dynamic Pattern Play Speed... -
Page 15: Maintenance
Maintenance The Showtec Shogun DJ RG-100 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Carefully wipe both mirrors clean with glass cleaner and a soft cloth. -
Page 16: Product Specifications
Product Specification Model: Showtec Shogun DJ RG-100 Voltage: 240V-50Hz (CE) Fuse: 2A / 250V Dimensions: 390x285x135mm (LxWxH) Weight: 5 kg Operation and Programming DMX Channels: 8 Signal input 3-pin XLR male Signal output 3-pin XLR female DMX-control via standard DMX-controller...
