- Page 1 RGB Par ORDERCODE 50451...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec RGB-Par Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations…………………………………………………………………………………….. Description..…................……….……………………………….… Features……………………….………………………………………………………….………………….…. Backside…………………………………………………...…...….……………….…………………...….….. Installation................…...…………………………………….….. Installing the Lamp ............………………………………………..………… Set Up and Operation..............……..……………………………….… DMX Channels Table............……..……………………………………………. Maintenance...................………..………….…….……………… Changing the Lamp................…………………….………………… Replacing the Fuse................…………………….………………… Troubleshooting................………………….………………….….. No Light..........………………….…………………………………………………….. No Response to DMX ..............………………….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
Allow time to cool down, before replacing lamp. • The user is responsible for correct positioning and operating of the RGB Par. The manufacturer will • not accept liability for damages caused by the misuse or incorrect installation of this device. -
Page 6: Description

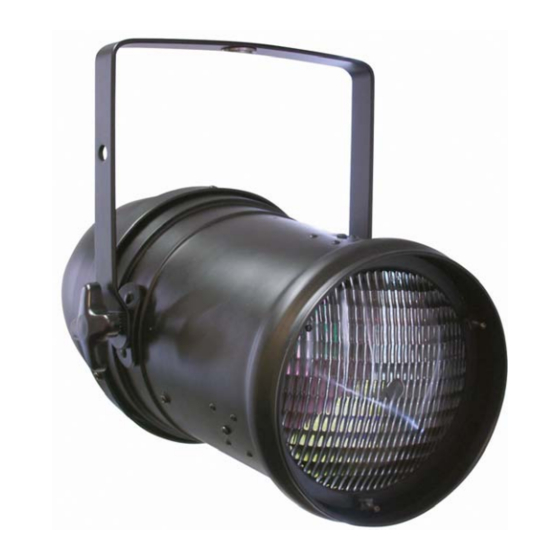

Description of the device Features RGB-Par is a Parcan from Showtec with RGB-Mix. • Lamp: 3 x 575 240V/575W (80812G / 80812O) • 3 x 575 bulbs with 15.000 lumen each. • 3 DMX channels, one per colour: R/G/B • Built-in DMX 512 dimmer NOTE: Knowledge of DMX is required to fully utilize this unit. -
Page 7: Installation
Installation Installing the Lamp The Showtec RGB Par uses three 575W (ordercode 80812G / 80812O) bulbs as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 8: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. 1. - Page 9 C & B-Modus (Color & Bright) If the C & B LED is lit, the RGB Par serves as a 2 channel dimmer pack. The color of the light is controlled by one DMX channel, and the brightness of lighting is controlled by another DMX channel.
-
Page 10: Dmx Channels Table
DMX Channels Table The color and intensity can be changed according the following table: Note: 1. " N" means DMX value (0-255). Example: If DMX value is 239, blue intensity will be 50-(239-237)x6=38%, red intensity will be 25-(239-237)x6=13%, green intensity be 100%. 2. -
Page 11: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec RGB Par requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 12: Troubleshooting
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the RGB Par, as this may damage the unit and the warranty will become void. -
Page 13: Product Specifications
Product Specification Model: Showtec RGB-Par Voltage: AC 230V-50Hz (CE) Cooling: Ventilator Dimensions: 458 x 220 x 258 mm (LxWxH) Weight: 4,6 kg Operation and Programming DMX-control via standard DMX-controller Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+)
