- Page 1 MANUAL ENGLISH Stage Blinder 2 DMX Ordercode: 30770 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Stage Blinder 2 DMX Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Frontside.................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Stage Blinder 2 DMX with Schuko power cable (2 m) • User manual •... - Page 4 • If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Stage Blinder 2 DMX Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light output and the illuminated surface must be bigger than 1 meter. -
Page 6: Connection With The Mains
Stage Blinder 2 DMX The Stage Blinder can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Stage Blinder 2 DMX Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

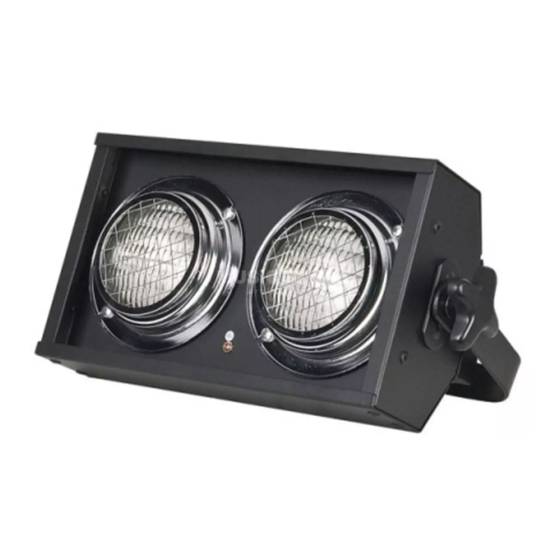

Stage Blinder 2 DMX Description of the device Features The Stage Blinder 2 DMX is a light fixture with high output. • Input voltage: 240V/50 Hz • Power consumption: 1300W Light source: 2 x GE Par 36 G53 Screw MFL 120V 650W (ordercode: 80117) •... -
Page 9: Backside
08) Schuko power cable 240V AC/50 Hz Installation Remove all packing materials from the Stage Blinder 2 DMX. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Installing The Lamp
Stage Blinder 2 DMX Installing the Lamp The Stage Blinder 2 DMX uses the GE Par 36 G53 Screw MFL 120V 650W (ordercode 80117) bulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note, that product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 11: Set Up And Operation
Stage Blinder 2 DMX Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. - Page 12 Stage Blinder 2 DMX Multiple Stage Blinders DMX Set Up Fig. 04 Note : Link all cables and set dip switches before connecting electric power After switching on, the Stage Blinder will automatically detect whether DMX 512 data is received or not.
-
Page 13: Dip Switch Setting For Dmx Mode
Addresses on the controller are set by flipping the appropriate dip switches # 1-9. DMX address settings are the sum of the dip switch values. A standard DMX address for the Showtec Stage Blinder is as follows: Example 1 Stage Blinder Address Value DMX DIP Switches "ON"... -
Page 14: Dmx Address Quick Reference Chart
Stage Blinder 2 DMX DMX Address Quick Reference Chart Ordercode: 30770... -
Page 15: Fixture Linking
Stage Blinder 2 DMX Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 16: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Showtec Stage Blinder 2 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. - Page 17 Check if power is switched on and One or more cables are plugged in fixtures do not function at all Internal fuse blown • Return the device to your Showtec dealer Fixtures reset The controller is not connected • Connect controller correctly, but all 3-pin XLR Out of the controller •...
-
Page 18: Product Specifications
Stage Blinder 2 DMX Product Specifications Model: Showtec Stage Blinder 2 DMX Input Voltage: 240 V AC, 50Hz Power consumption: 1300W (full output) DMX linking: 30pcs Dimensions: 380 x 155 x 190 mm (LxWxH) Weight: 3 kg Operating and Programming:... -
Page 19: Dimensions
Stage Blinder 2 DMX Dimensions Ordercode: 30770... - Page 20 ©2015 Showtec...
