GPS-RECEIVER JP7-T

11 Appendix

11.1 Board-to-board connector

This chapter provides specifications for the 50-pin board-to-board connector
which serves as physical interface to the host application. The receptacle
assembled on the JP7-TC is type Hirose DF12C. Mating headers from
Hirose are available in different stacking heights.

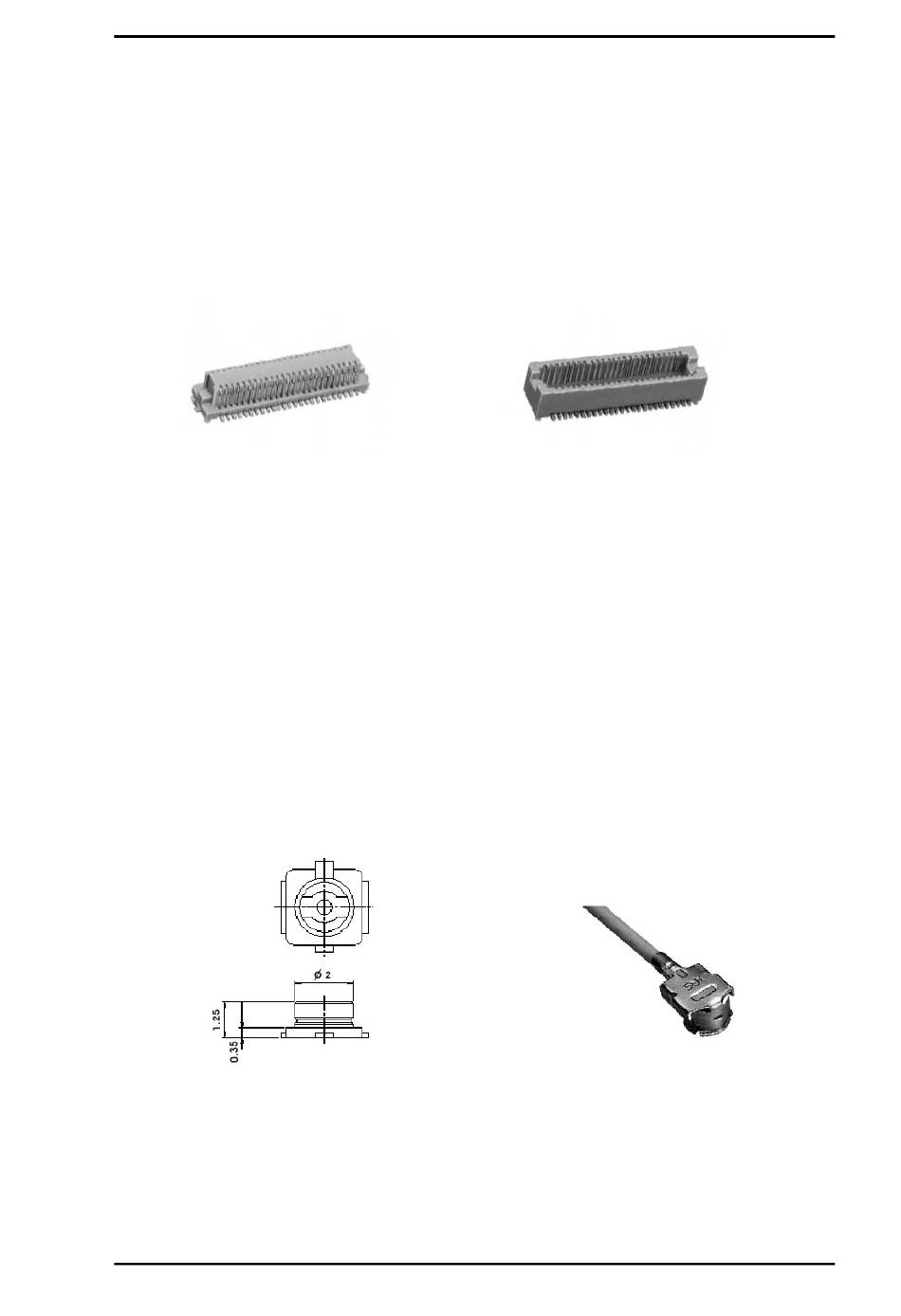

Figure 19.a: Hirose DF12C receptacle on JP7-TC
DF12C

11.2 RF connector

The JP7-TC uses an ultra-miniature SMT antenna connector supplied from
Hirose Ltd.
The product name is:
• U.FL-R-SMT
The position of the antenna connector on the JP7-TC board has to be seen
on bottom side on the upper right corner.
Mating plugs and cables can be chosen from the Hirose U.FL Series.
Examples are shown in figure below. For latest product information please
contact your Hirose dealer or visit the Hirose home page, for example
http://www.hirose.com.
Figure 20: Mechanical dimensions of U.FL-R-SMT connector with U.FL-LP-040 plug
This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission.
VERSION 1.02
Figure 19.b: Header Hirose
