8 Mechanical draw

The following chapters describe the mechanical dimensions of JP7-T family
and give recommendations for integrating JP7-T family into the user
application. Note that, the absolute maximum dimension for all modules
(JP7-T, JP7-TB, JP7-TC-1, JP7-TC-2) is: 25.4 mm x 25.4 mm (L x B).

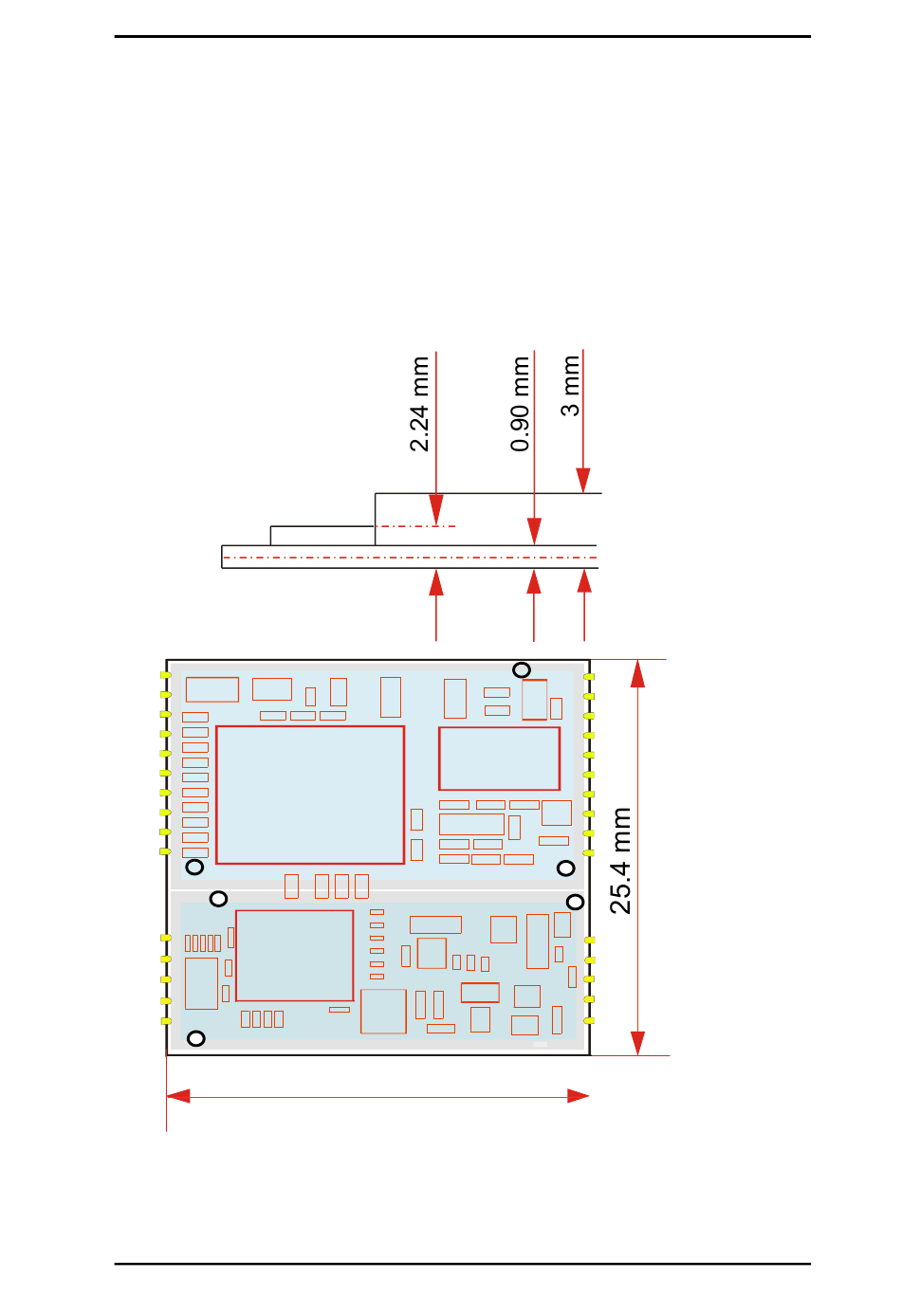

Figure 7 shows the top view on JP7-T family (without connectors) and
provides an overview of the mechanical dimensions of the board.
Please note that, the JP7-T family has a dimension tolerance from ±0.1
mm.
:
Figure 7
This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission.
25.4 mm
The mechanical draw of the JP7-T family
