FALCOM JP7-T Series Hardware Description page 44

GPS-RECEIVER JP7-T
Recommended soldering reflow profile for JP-T family mounting on PCB
250
200
150
100
50

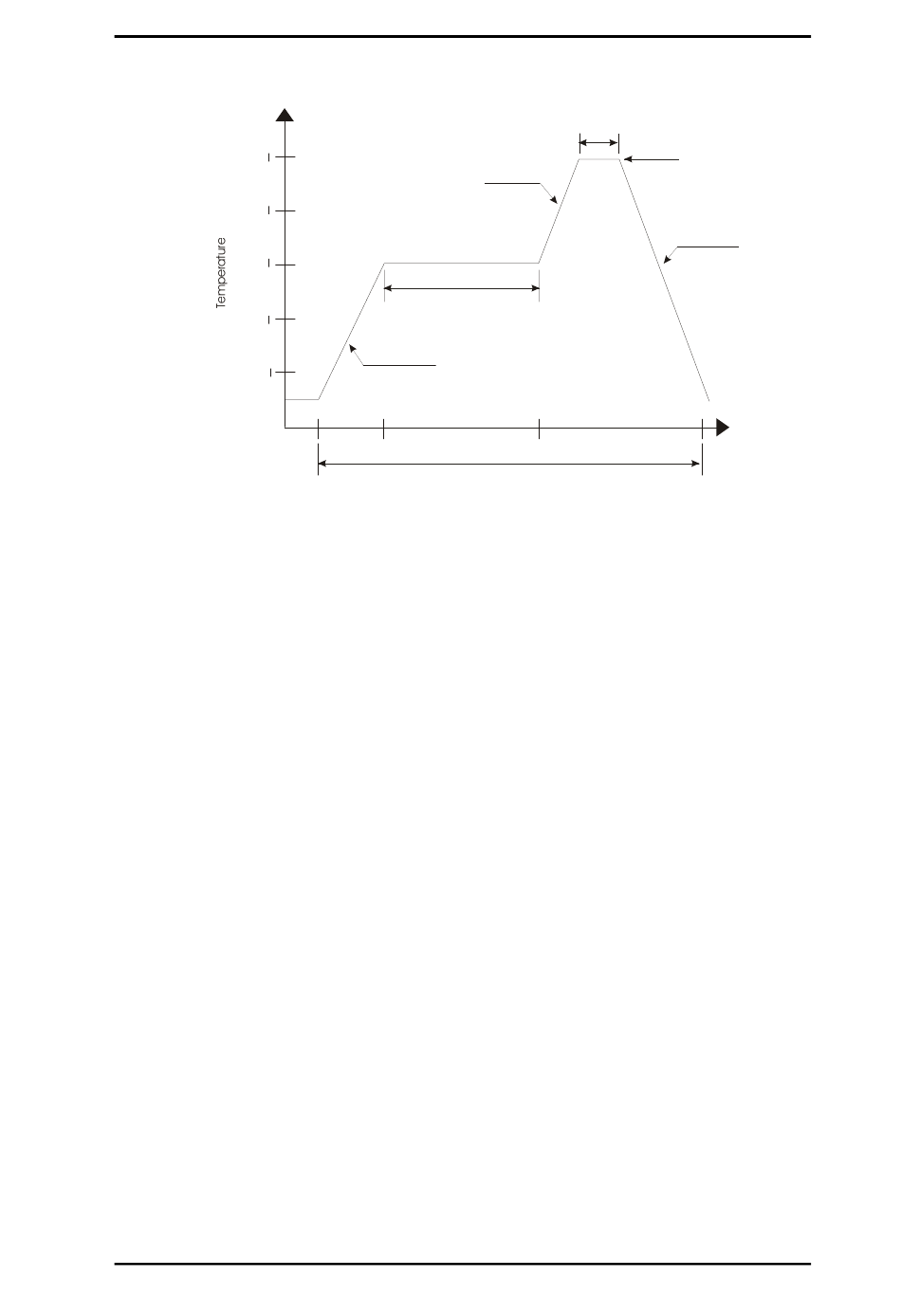

Figure 15: Typical solder conditions (temperature profile, reflow conditions).
Consider for a long time in the soldering zone (with temperature higher than
180°C) has to be kept as short as possible to prevent component and
substrate damages. Peak temperature must not exceed 240°C. JP7-T family
are able to withstand twice the previous recommended reflow profile in
order to be compatible with a double reflow when SMDs are mounted on
both sides of the PCB. A maximum of two soldering reflows are allowed for
these packages. The use of a no clean flux is highly recommended to avoid
any cleaning operation. In order to prevent any bump cracks, ultrasonic
cleaning methods are not recommended.
