GPS-RECEIVER JP7-T
To make a properly antenna connection to the antenna pads (available on
bottom side of JP7-TC-2, only) refer to the figure below which shows their
position and pin name (refer also on the table 6).

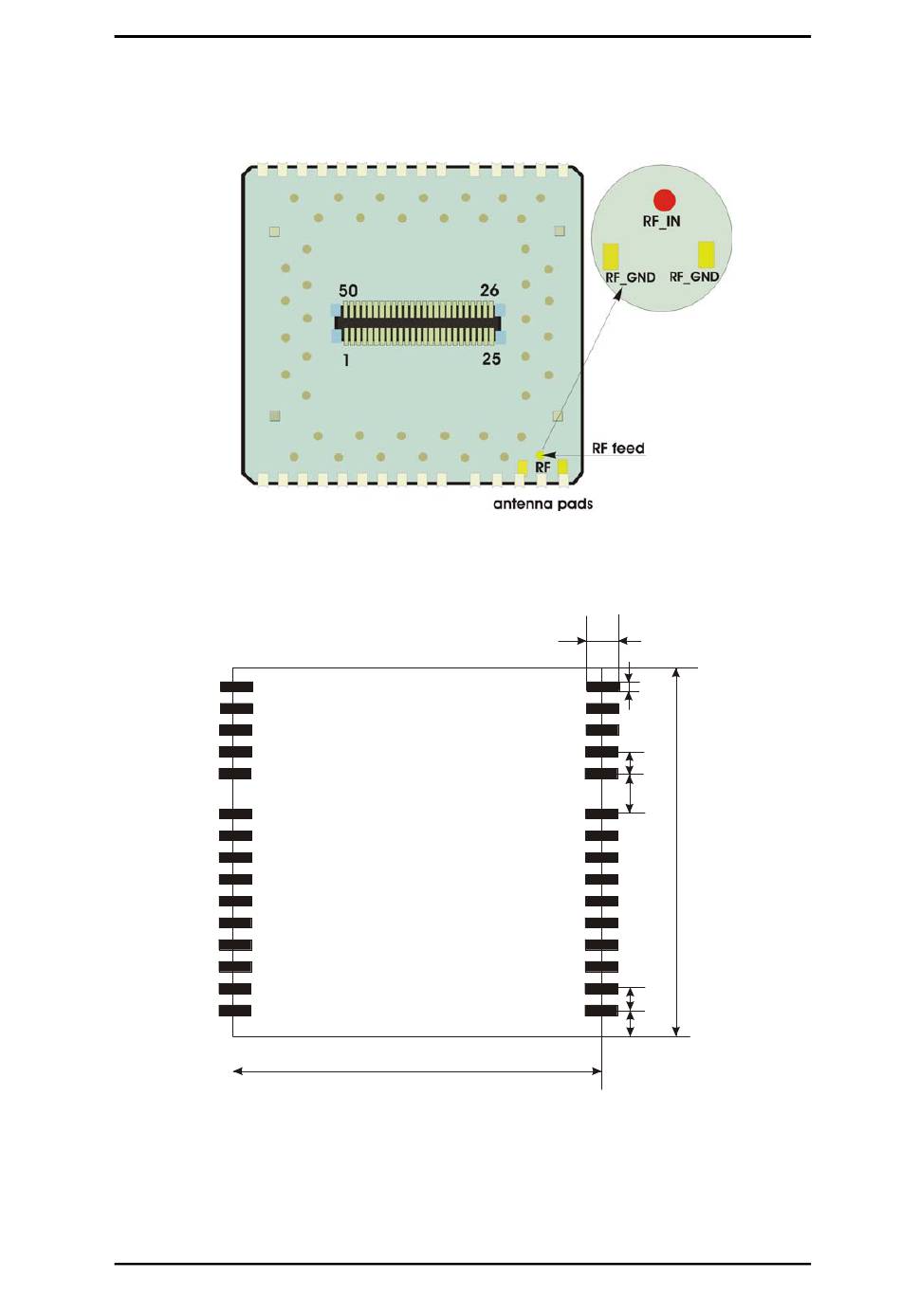

Figure 13: RF connection to antenna feed of the JP7-TC-2 GPS receiver.
Recommendations for layout, and soldering.
Please note that, the dimension tolerance is ±0.1 mm.
Figure 14: Recommendations for layout.
